HEAD

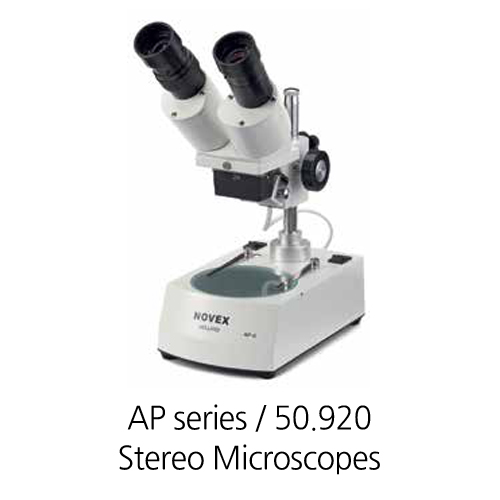

Binocular head with vertical or 45° inclined tubes. One tube supplied with diopter adjustment. Interpupillary distance from 55 to 75 mm

OBJECTIVES
The AP-1, AP-2, AP-4 and AP-5 models are standard supplied with a 2x magnification objective in slider . This objective is interchangeable with optional 1x, 3x, 4x and 6x magnification objectives. The AP-7 and AP-7 LED models are supplied with revolving 1x/3x objectives for total magnification of 10 and 30x with field of views from 20 to 6.7 mm. The AP-8 and AP-8 LED models are supplied with revolving 2x/4x objectives for total magnification of 20 and 40x with field of views from 10 to 5 mm. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAND
Pillar stand with a 40 mm coarse adjustment. Supplied with black/white object plate and 2 object clamps

ILLUMINATION
The AP-1 is supplied without illumination. The AP-2 and AP-4 are supplied with an incident 10 W 12 V  halogen illumination and internal power supply. The AP-5, AP-7 and AP-8 models are supplied with a transmitted and incident 10W 12V halogen illumination and internal power supply. The AP-7 LED and AP-8 LED models are supplied with a transmitted and incident LED illumination with 3 rechargeable batteries for maximum 35 hours cordless operation. With external mains adapter/charger

CAMERAS
Euromex offers a wide range of industrial and education grade cameras, chapter 3 (Digital Solutions). For binocular microscopes, the camera replaces one of the eyepieces. Warranty for the camera is 2 years

PACKAGING
Supplied with power cord, dust cover, a spare fuse and user manual. All packed in a polystyrene box
