Industry Stereo Microscopes
실체현미경

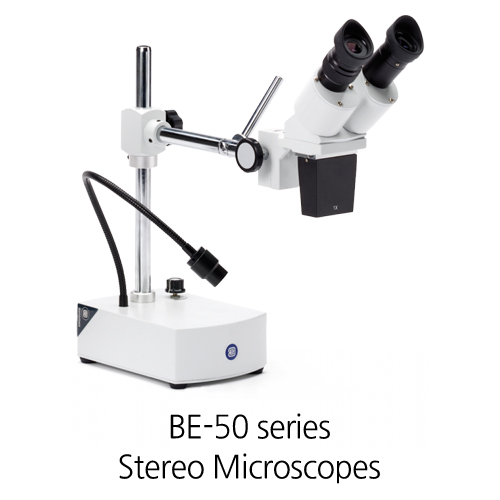

BE-50 series
Stereo microscopes of the BE-50 series with interchangeable objectives mounted in a slider are intensively used in the industry . The high depth of field and the extra large working distance are the main characteristics of this stereo microscope. These characteristics allow users to work under the microscope with ease. Ideal for jewelers, watchmakers, soldering, quality inspection and so on
A 44 cm flexible arm LED light source makes sure the object can be illuminated from any angle. The heavy, metal base makes this system very stable. Magnifications lie varies from 2.5x to 40x
Highlights
- Professional stereo microscopes for extra long working distance
- Interchangeable magnifications from 2.5x up to 40x
- Overhanging stand
- Large working area
- LED illumination
Models
Specifications
EYEPIECE(S)
Pair WF 10x/20 mm
HEAD
Binocular 45° inclined tube. Interpupillary distance adjustable between 55 and 75 mm
STAND
Stable overhanging heavy base stand with pillar
FOCUSING ADJUSTMENT
Coarse adjustment with tension control
ILLUMINATION
Incident 1 W LED illumination 44 cm on flexible arm. Intensity is adjustable
OBJECTIVES
• Standard delivered with 0.5x fixed magnification objective, magnification 5x, field of view 40 mm.
Working distance 250 mm.
• Additional 1x fixed magnification objective available, magnification 10x, field of view 20 mm.
Working distance 230 mm.
• Additional 2x fixed magnification objective available, magnification 20x, field of view 10 mm.
Working distance 119 mm
Other magnifications available with optional eyepieces up to 40x. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

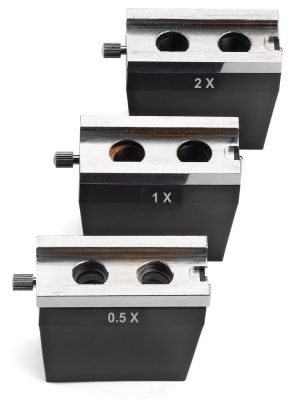

(Photo: BE.7405 / BE.7410 / BE.7420)
PACKAGING
Supplied with power cord, dust cover, a spare fuse and user manual. All packed in a polystyrene box
Accessories
BE.6005
Pair of WF 5x/22 mm eyepieces
BE.6010
Pair of WF 10x/20 mm eyepieces
BE.6015
Pair of WF 15x/12 mm eyepieces
BE.6020
Pair of WF 20x/10 mm eyepieces
BE.6110
WF 10x/20 mm eyepiece with 10mm/100 micrometer
BE.6099
Pair of eyecups
BE.7405
Objective 0,5x, working distance 250 mm
BE.7410
Objective 1x, working distance 230 mmx
BE.7420
Objective 2x, working distance 119 mm
AE.1112
Stage 76 x 26 mm micrometer slide, 50 mm divided in 500 parts, 100 µm per division
