Lab/Industrial Microscope
Polarizing Microscope

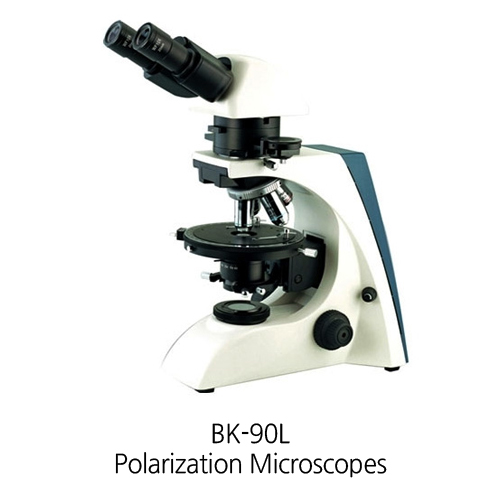

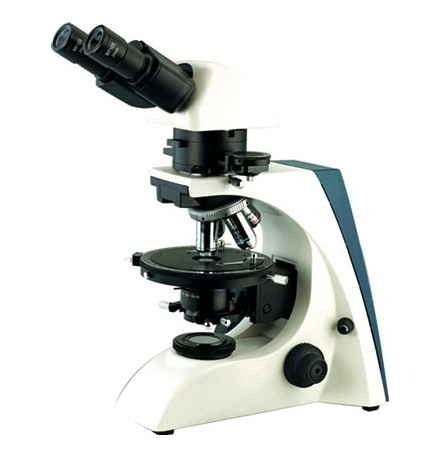

BK-90L
BK-90L Polarizing Microscope Outfits
Note: “●”In Table Is Standard Attachment. “○” Is Optional Accessories.
Items | Specification | BK-90L |
Eyepiece | WF10×-20 mm | ● |
WF10×-20 mm (Reticule 0.1mm) | ● | |
Non-stress Infinity Plan Objective | 4×/0.10 | ● |
10×/0.25 | ● | |
20×/0.45 (S) | ● | |
40×/0.65 (S) | ● | |
60×/0.80 (S) | ○ | |

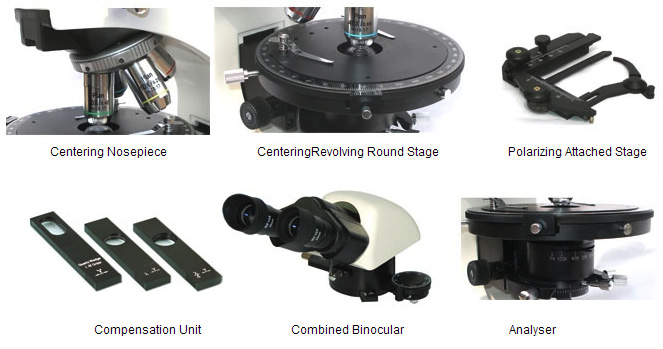

Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm |
● |
Trinocular Head | Inclined 30°, Rotatable 360°, Interpupilary Distance: 55-75mm, Light Distribution: 0:100 |
○ |
Nosepiece | Quirtuple (Adjustable independence) | ● |
Polarizing Unit | Rotatable 360°(Module Type, Can Be Locked) | ● |
Bertrand Lens | Inbuilt, Center Adjustable | ● |
λSlip | First Class Red | ● |
λ/4 Slip | ● | |
Quartz Wedge | (Ⅰ-Ⅳ Class) | ● |
Revolving Round Stage | Rotatable 360°, Center Adjustable, Division 1°, Vernier division 6′ | ● |
Polarizing Attached Mechanical Stage | ○ | |
Condenser | Abbe N.A. 1.25,Non-stress | ● |
Polarizing Unit with Scale | Rotatable 360°,Can Be Locked | ● |
Koehler Illumination | 6V/20W Halogen Lamp | ● |
2 A Fuse | Spare: 1 pc | ● |
Filter | Blue | ● |
Amber | ○ | |
Green | ○ | |
Neutral | ○ | |
C-mount | 0.5×, 1× | ○ |
Adaptor for Digital Camera | ○ |
Packing Size: 550mm×305mm×400mm
Gross Weight: 13kgs Net Weight: 12 kgs
