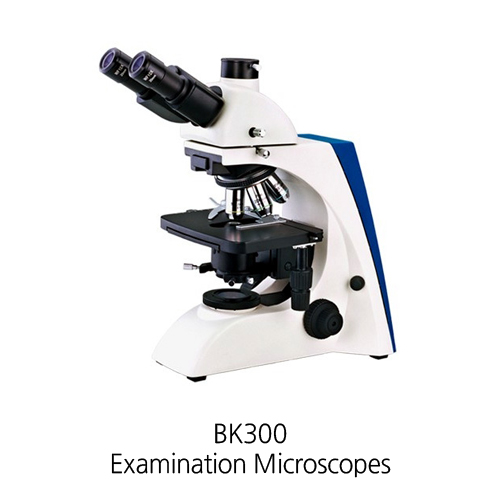

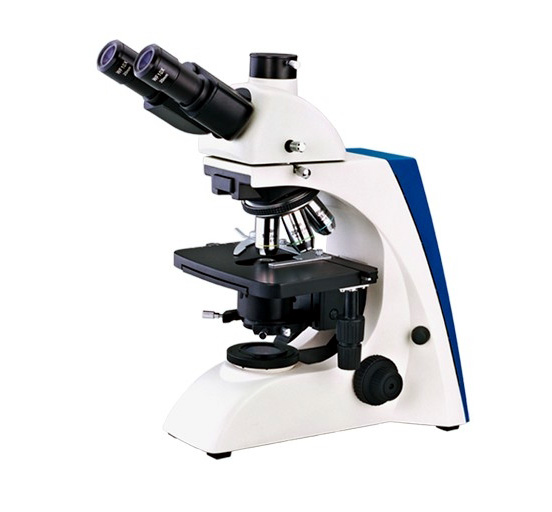

[BK300] Biological Microscope for Clinical/Medical Laboratory
설명
Medical Microscope
Biological Microscope for Clinical/
Medical Laboratory
BK300
BK series biological microscope is a specially designed for clinical and medical laboratory of senior biological microscope.
Advantage:
– Infinity plan optical system to ensure excellent resolution and clarity;
– High stability of rigid super lens body integration design low operation, comply with the requirement of man-machine engineering;
– With super large working platform;
– Unique built-in Koehler lighting system, provides a bright, uniform illumination.
Specification
|
Items
|
Parameter
|
BK300
|
BK5000
|
|
Eyepiece
|
WF 10X-18 mm
|
S
|
–
|
|
WF 10X-20 mm
|
–
|
S |
|
|
WF 16X-13 mm
|
–
|
–
|
|
|
WF 10X-18 mm ( 0.1mm)
|
–
|
–
|
|
|
WF 10X-20 mm ( 0.1mm)
|
–
|
–
|
|
|
Plan Objective
|
4X /0.10
|
S
|
|
|
10X /0.25
|
S
|
||
|
40X /0.65 (S)
|
S
|
||
|
100X /1.25 (Oil) (S)
|
S
|
||
|
20X /0.40
|
–
|
||
|
60X /0.80(S)
|
–
|
||
|
Infinity Plan Objectives
|
4X /0.10
|
S
|
|
|
10X /0.25
|
S
|
||
|
20X /0.40
|
S
|
||
|
40X (S) /0.66(S)
|
S
|
||
|
100X /1.25(Oil) (S)
|
S
|
||
|
2.5X /0.07
|
–
|
||
|
60X /0.80(S)
|
–
|
||
|
Seidentopf Binocular Head
|
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50 -75mm |
S
|
S
|
|
Trinocular Head
|
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50 -75mm, Light Distribution: 100: 0 / 80:20 |
–
|
–
|
|
Nosepiece
|
Quadplex
|
S
|
–
|
|
Quintuple
|
–
|
S
|
|
|
Mechanical Stage
|
Stage Size: 190X140mm,Travel: 78mm×55mm
Coaxial Coarse and Fine Focusing Knobs Two Slide Holder |
S
|
S
|
|
Condenser
|
Abbe N.A. 1.25 (Iris Diaphragm)
|
S
|
S
|
|
Swing out condenser N.A.0.9/0.13
|
–
|
–
|
|
|
Koehler Illumination
|
6V/20W Halogen Lamp
|
S
|
S
|
|
6V/30W Halogen Lamp
|
–
|
–
|
|
|
3W-LED Illumination
|
–
|
–
|
|
|
Polarizing Attachment
|
Analyzer / Polarizer
|
–
|
–
|
|
Phase Contrast Unit
|
Quintuple hole turret
10X /20X /40X /100X phase contrast objective
|
–
|
|
|
Independent slot
10X /20X /40X /100X phase contrast objective
|
–
|
||
|
Dark Field Unit
|
N.A.0.9 (Dry)
|
–
|
–
|
|
C-mount
|
1X
|
–
|
–
|
|
0.57X (Focus adjustable)
|
–
|
–
|
|
|
Fluorescence Attachment
|
Epi Fluorescence unit ( six-hole disc,U/V/B/G)
|
–
|
–
|
|
Epi Fluorescence unit (three-hole slide,B/G)
|
–
|
–
|
|
|
Field Diaphragm
|
S
|
S
|
|
|
Filter
|
Blue
|
S
|
S
|
|
Green
|
–
|
–
|
|
|
Amber
|
–
|
–
|
Note: “S”is standard Attachment. “-” Is Optional Accessories
Packing in carton
Demension: 565mm X 310mm X 410mm
Gross Weight: 12 kgs
Net Weight: 10 kgs
