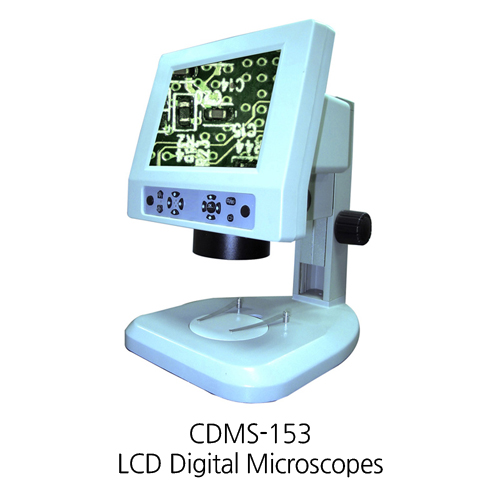

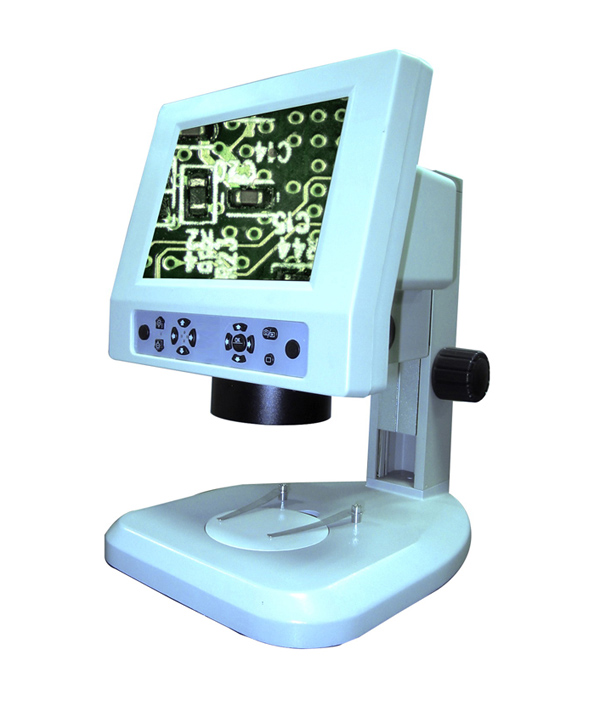

[CDMS-153] LCD Digital Imaging Measruing Instrument

3,111,000

Quantity:

설명

Lab/Industrial Microscope

LCD Digital Imaging Measruing Instrument

CDMS-153



The NEW CDMS-153 Digital LCD Microscope has revolutionized the traditional methods of microscopic observation and documentation,The DMS-153 incorporates the main elements of the ZOOM microscope:7 X-45 X zoom,camera,and monitor in one self-contained package. Plus,you can be rid of all of the separate component modules,cables,cords& connectors that would otherwise occupy your valuable countertop space. The patented CDMS-153 offers a range of excellent optics depending on yourbudget,Observatin and image capturing could not be easier with it ‘s sleek ergonomic design, And when compared to using a raditional microscope over perionds of time you will notice allot less muscle fatigue,so performance improves as well.This unipue outfit also allowes you to display and capture real-time, high-resolution video images.Capturin and storing images and video clips on the optional SD card or transferring them to your personal computer via USB cable will no longer be a challenge ,It is widely applied to testing and inspecting in product assemble ,research and teaching fields.

Digital Parts Pixel 5 Mega
Maximal Resolution 2560X1920
Video Resolution 640X480
LCD Screen 8 Inches TFT Screen, Resolution is 800X 600
Video Output AV Output (NTSC/PAL)
Data Output USB2.0
Menu Language Chinese / English
Storage SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene Mode Standard / Softness / Vivid
Exposure Mode Auto Exposure
Date Mode Year, Month, Day, Hour, Minute
Voltage Input 100V-240V 60HZ/50HZ
Optical part Objective Zoom Range 0.7 X-4.5 X
Zooming Ratio 1:6.5
Magnification 19 X-120 X
Visual Field 6.8 X8.9-1.0 X1.3mm
Working Distance 88mm
