Lab/Industrial Microscope

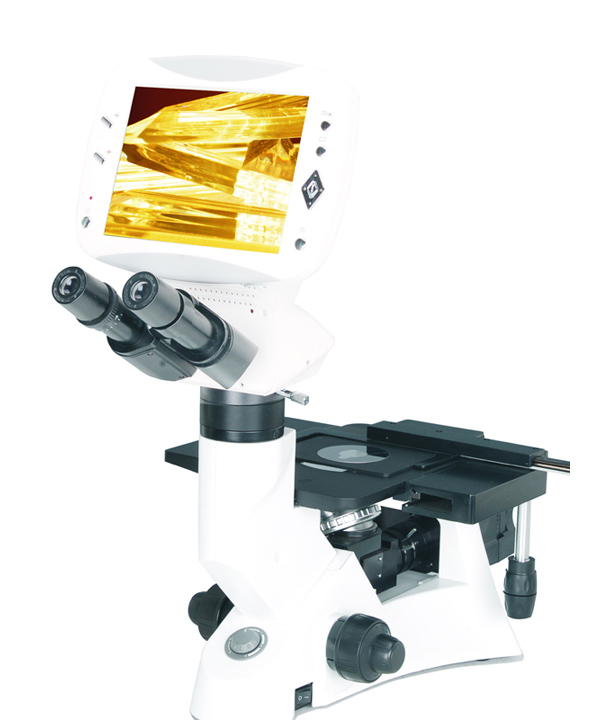

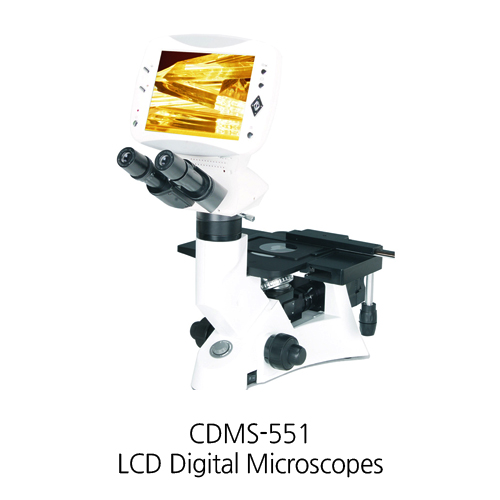

Compound LCD Digital Inverted Metallurgical Microscope

CDMS-551



It renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working.It can be use both eyepieces and LCD Screen for convenient and comfortable viewing by individuals and share with groups alike .It is also feature the latest 5 MEGA pixels digital imaging microscopy techniques for quick and easy snapshots or videos.

It is widely used in institute and laboratory to observe and identify the structure of various metal and alloy

Feature and Parameter

Digital Parts Pixel 5 Mega
Photo Resolution 2560X1920-1600X1200
Video Resolution 640X480
Sensor Size 1/2.5 Inches
LCD Screen 8 Inches TFT Screen, Resolution is 800X 600
Video Output AV Output (NTSC/PAL)
Data Output USB2.0
Menu Language Chinese / English
Storage SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene Mode Standard / Softness / Vivid
Exposure Mode Auto Exposure
Date Mode Year, Month, Day, Hour, Minute
Optical Parts Viewing Head Compensation Free Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm
Eyepiece High-point, Extra Wide Field Eyepiece EW10×/22
Objective Infinite Plan Achromatic Objective 4×/0.1,10×/0.25,20×/0.40,40×0.60
Nosepiece Quintuple Nosepiece
Stage Plain Stage
Focusing Coaxial Coarse & Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation
Illumination Halogen Lamp 6V/ 30W
Filter Blue, Yellow, Green and Ground Glass
Polarization Attachment
Optional Parts Objective Infinite Plan Achromatic Objective 50×/0.75, 80×/0.90
Stage Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120×78mm
Auxiliary Stage
Centering Centering Telescope (Φ30MM)

5 Megapixels digital imaging microscopy
