설명
Lab/Industrial Microscope

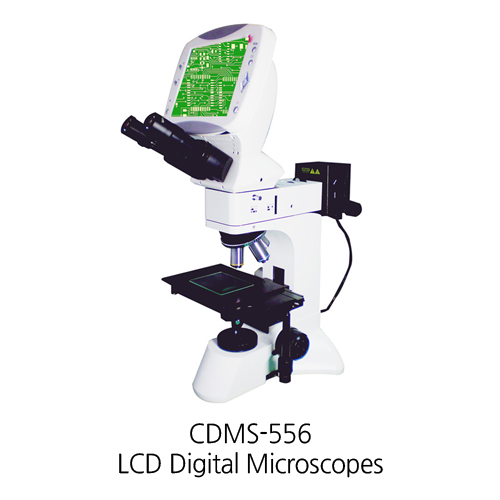

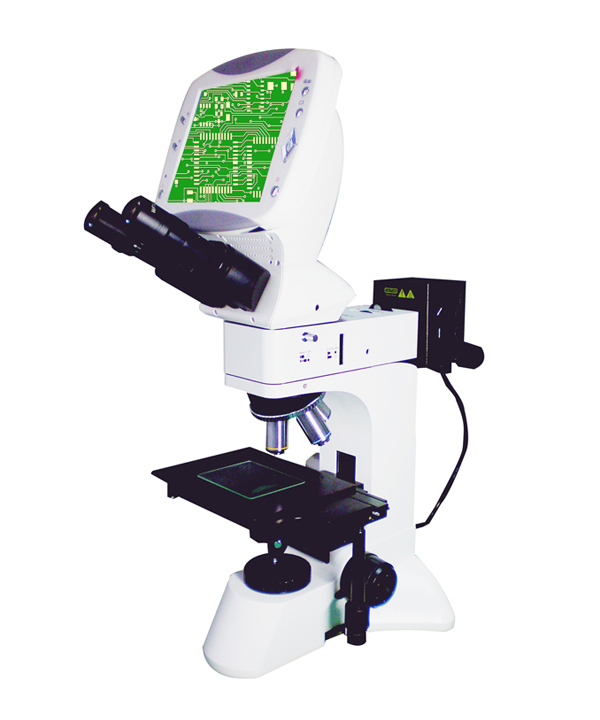

LCD Digital Metallurgical Microscope
CDMS-556
CDMS-556 digital LCD metallurgical microscope has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging.Our LCD Digital Microscope can be use both traditional eyepieces and an LCD Screen for easy and comfortable viewing for yourself and to share with others.This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time.
It is not only features high resolution of LCD display to reverting genuine photo and video,but also features for quick and easy snapshots or short videos.This unit integrates magnification,digital enlarge, imaging ,display,capture photo and video ,sarchiving and printing for easy exchange, store captured photos and clips on the optional SD card or transfer them to your personal computer via included USB cable. All of which achieve a more convenient and effective breakthrough.
With the features of reflected and transmitted,the microscope is suitable to observe surfaces of non-transparent object or transparent.It provides clear and high-contrast image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.
CDMS-556 compound digital LCD metallurgical microscope feature and parameter
| Digital Parts |
Model | CDMS-556TR |
| Pixel | 500 Mega | |
| Photo Resolution | 2560X1920-1600X1200 | |
| Video Resolution | 640X480 | |
| Sensor Size | 1/2.5 Inches | |
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 | |
| Video Output | AV Output (NTSC/PAL) | |
| Data Output | USB2.0 | |
| Menu Language | Chinese / English | |
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) | |
| Scene Mode | Standard, Softness, Vivid | |
| Exposure Mode | Auto Exposure | |
| Date mode | Year, Month, Day, Hour, Minute |
| Optical Parts |
Viewing Head | Inclined 30˚ |
| Eyepiece | Wide field WF10X/22 | |
| Objective | Infinity plan achromatic objectives with long working distance (no cover glass) | |
| PL L5X/0.12(Work distance) 26.1 mm | ||
| PL L10X/0.25(Work distance) 20.2 mm | ||
| PL L40X/0.60 (spring) (Work distance) 3.98 mm | ||
| PL L60X/0.70 (spring) (Work distance) 3.18 mm | ||
| Focusing System | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2µm. | |
| Nosepiece | Quintuple (Backward ball bearing inner locating) | |
| Epi-illumination System |
6V 30W, halogen lamp, adjustable brightness | |
| Integrated field diaphragm, aperture diaphragm and filter switching device. Push-pull type analyzer and polarizer | ||
| Stage | Double layer mechanical(Size:210mmX140mm,movingrange:75mmX50mm) | |
| Transmitted Illumination system |
Abbe condenser NA.1.25 Rack & pinion adjustable | |
| Blue filter and Ground glass | ||
| Collector for illumination with halogen lamp (With field diaphragm ) | ||
| 6V 30W halogen lamp, adjustable brightness | ||
| Optional Parts |
Eyepiece | Dividing eyepiece(field number:diameter: 22mm) 0.10mm/Div |
| Objective | Infinity plan achromatic objectives with long working distance (no cover glass) | |
| PL L 20X/0.40(Work distance) 8.80mm | ||
| PL L50X/0.70 (spring) (Work distance) 3.68 mm | ||
| PL L80X/0.80 (spring) (Work distance) 1.25 mm | ||
| PL L100X/0.85 (spring) (Work distance)0.4mm | ||
| Filter | Green filter | |
| Yellow filter |
1 Power Connection 12V DC power supply safety and reliability of low pressure
2 AV output Easy to view and operation
3 USB Outport Data transmission is more effective
