설명
Lab/Industrial Microscope

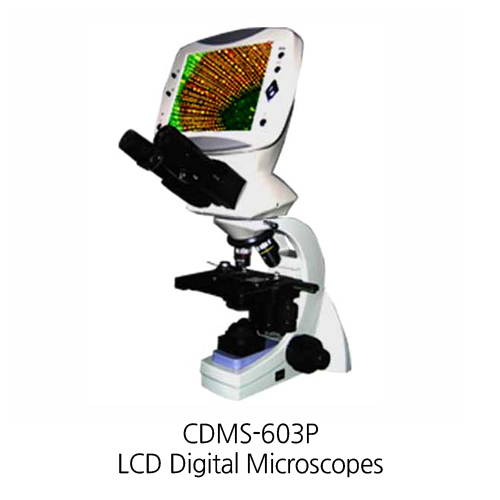

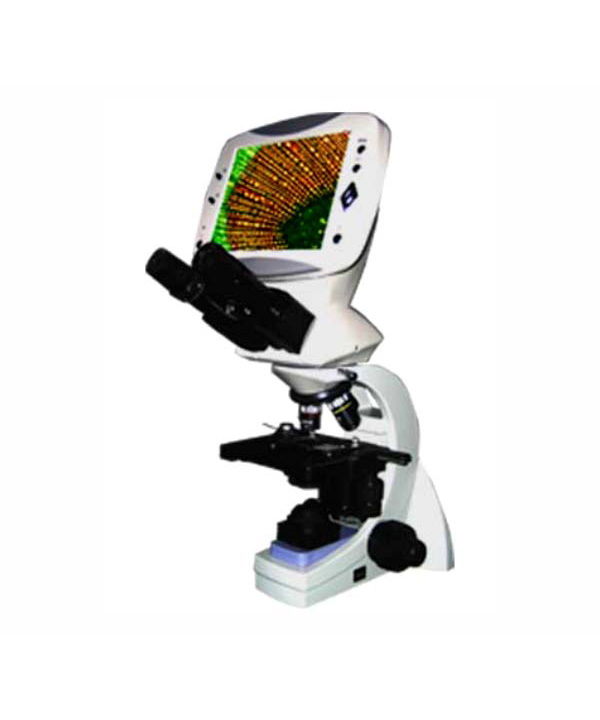

LCD Digital Biological Microscope
CDMS-603P
CDMS-603 LCD Biological Microscope It has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging.Our LCD Microscope can be use both traditional eyepieces and an 8inches LCD Screen for easy and comfortable viewing for yourself and to share with others.This patented microscope thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time. It is widely used in medical and sanitary establishments,academic demonstration and research,laboratories, institutes, colleges and universities.
CDMS-603 Series LCD Biological Microscope Feature and Parameter
| Digital Parts | Model | CDMS-603P | CDMS-603 | |
| Resolution | 525 lines, 60 Frames/sec | |||
| Image Sensor | 1/3″ CCD | |||
| LCD Screen | 8 Inches TFT Screen, Resolution is 800 X 600 | |||
| Video Output | AV Output (NTSC/PAL) | |||
| Voltage Input | 100V-240V 60HZ/50HZ | |||
| Optical Parts | Viewing Head | Compensation Free Binocular Head, Inclined 30 Degree, Interpupillary Distance 55-75mm | ||
| Eyepiece | Wide Field WF10X/16 | |||
| Objective | Infinity Plan Achromatic 4X/0.10 | Infinity Achromatic 4X/0.10 | ||
| Infinity Plan Achromatic 10X/0.25 | Infinity Achromatic 10X/0.25 | |||
| Infinity Plan Achromatic 40X/0.65 (Spring) | Infinity Achromatic 40X/0.65(Spring) | |||
| Infinity Plan Achromatic 100X/1.25 (Spring,Oil) | Infinity Achromatic 100X/1.25 (Spring,Oil) | |||
| Focusing System | Coaxial Coarse/Fine Focus System with Tension Adjustable, Limit Stopper ,Range 24mm, Fine Division 0.002mm | |||
| Nosepiece | Quadruple | |||
| Illumination | 3.7V,3W LED Lamp, Brightness Adjustable | |||
| Stage | Double Layers Mechanical Stage 140mmX140mm | |||
| Condenser | NA1.25 Abbe Condenser with Iris Diaphragm & Filter, Rack & Pinion Adjusment | |||
| Collector | Halogen Illumination(Compose with Field Diaphragm) | |||
| Optional Parts | Eyepiece | High Point and Wide Field Eyepiece , WF16X/11mm | ||
| Wide Field Eyepiece WF10X /20mm with a Reticle, Single Line 10mm/100 Cross Hair(0.1mm Micro-meter) | ||||
| Condenser | Dark Field | Dry NA0.75/ Wet NA1.25 | ||
| Infinity Phase Contrast Unit | Eyepiece | Centering Telescope | ||
| Objective | Infinity Phase Contrast Plan Achromatic 10X,20X,40X,100X | |||
| Simple Polarization Attachment | Polarizer (360 degree rotatable ) | |||
| Analyzer and Polarizer | ||||
| Illumination | 6V,20W Halogen Lamp, Brightness Adjustable | |||
