설명
Lab/Industrial Microscope

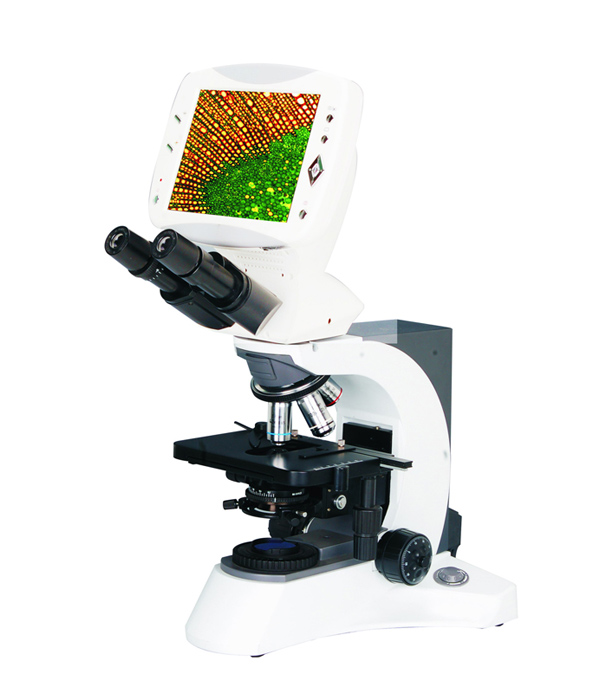

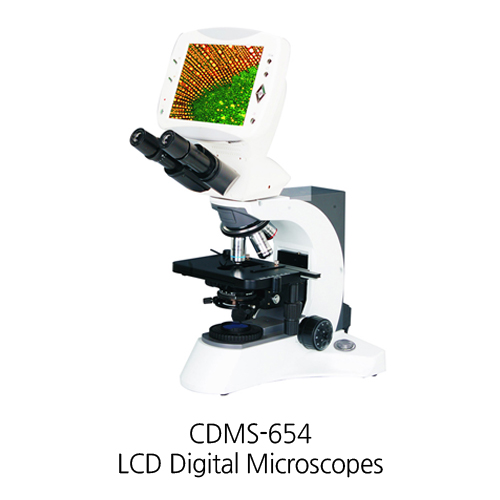

Compound LCD Digital Biological Microscope
CDMS-654
CDMS-654 compound digital LCD biological microscope has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging.Our LCD Microscope can be use both traditional eyepieces and an 8inches LCD Screen for easy and comfortable viewing for yourself and to share with others .This patented microscope
It is not only features high resolution of LCD display to reverting genuine photo and video ,but also features for quick and easy snapshots or short videos.This unit integrates magnification,digital enlarge, imaging ,display, capture photo and video ,sarchiving and printing for easy exchange, store captured photos and clips on the optional SD card ortransfer them to your personal computer via included USB cable. All of which achieve a more convenient and effective breakthrough.
With the features of easy observation,intelligence and convenient operation,complete functions and economy,it is widely used in medical and sanitary establishments,academicdemonstration and research,laboratories, institutes, colleges and universities.

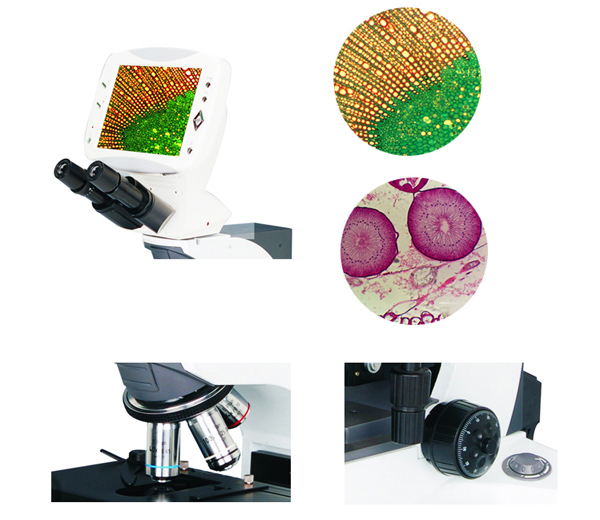

Real-time photographed of biological cells
CDMS-654 Compound Digital LCD Biological Microscope Feature and Parameter
| Digital Parts | Model | CDMS-654 | |
| Pixel | 5Mega | ||
| Photo Resolution | 2560X1920-1600X1200 | ||
| Video Resolution | 640X480 | ||
| Sensor Size | 1/2.5 Inches | ||
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 | ||
| Video Output | AV Output (NTSC/PAL) | ||
| Data Output | USB2.0 | ||
| Menu Language | Chinese / English | ||
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) |
||
| Scene Mode | Standard / Softness / Vivid | ||
| Exposure Mode | Auto Exposure | ||
| Date Mode | Year, Month, Day, Hour, Minute | ||
| Optical Parts | Viewing Head | Compensation Free Binocular Head, Inclined 30 Degree, Interpupillary Distance 48-75mm |
|
| Eyepiece | Larger viewing area with extra wide field eyepiece EW10×/ 22 .Focus control with diopter adjustable | ||
| Objective | Infinity Plan Achromatic 4X | ||
| Infinity Plan Achromatic 10X | |||
| Infinite Plan Achromatic 20X | |||
| Infinity Plan Achromatic 40X | |||
| Infinity Plan Achromatic 100X | |||
| Nosepiece | Backward Quintuple | ||
| Illumination | External Illumination, Aspherical Collector, Halogen Lamp 6V/ 30W ,Brightness Adjustable |
||
| Stage | Rectangle double layers mechanical stage 185X142mm, moving range 75X55mm, comfortable operation with lowposition adjustable knobs |
||
| Condenser | Swing-out Condenser NA 0.9/ 0.25 | ||
| Filter | Blue& Green | ||
| OptionalParts | Polarization Attachment | ||
| Turret Phase Contrast Kit | Infinity Phase Contrast Plan Achromatic 10X,20X,40X,100X |
||
| Dark Field Attachment | Dark Field Condenser (Dry) | ||
| Dark Field Condenser (Oil) | Objectives for Dark Field 100 | ||
| Epi-fluorescent Attachment | |||
