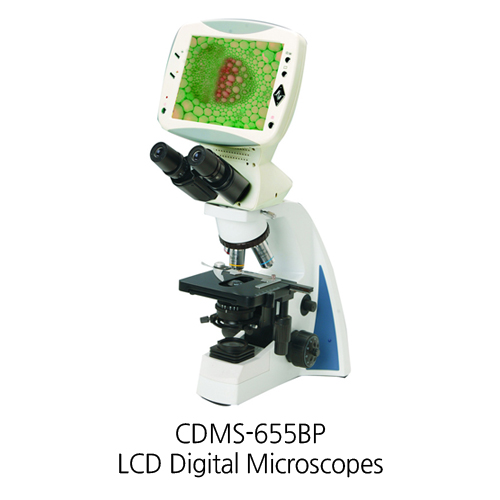

[CDMS-655BP] LCD Digital Biological Microscope

₩4,534,000

Quantity:

설명

Lab/Industrial Microscope

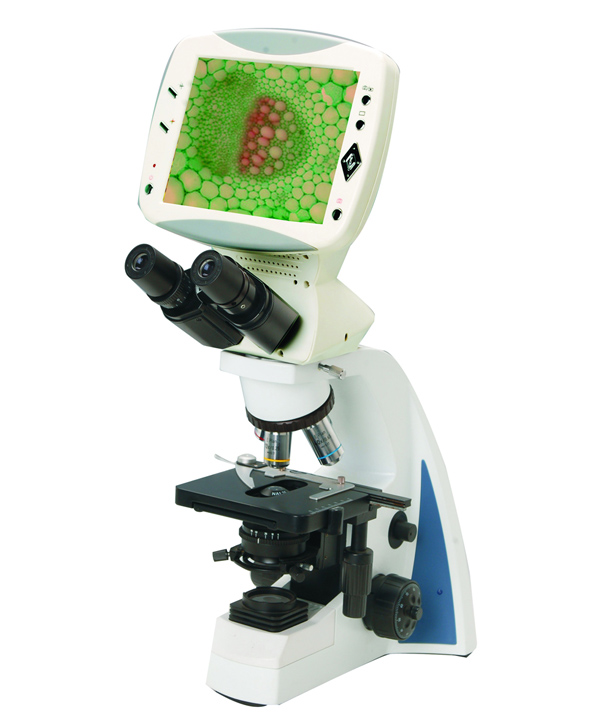

LCD Digital Biological Microscope

CDMS-655BP



CDMS-655 Seriescompound digital LCD biological microscope renovated the traditional way of
microscopic observation and thoroughly resolves the fatigue for a long time working.It can be
use both eyepieces and LCD Screen for convenient and comfortable viewing by individuals
and share with groups alike .It is also feature the latest 5 MEGA pixels digital imaging
microscopy techniques for quick and easy snapshots or videos .
The patent microscope is an ideal tool for medical and sanitary establishments, academic
demonstration and research,laboratories,institutes, colleges and universities applications

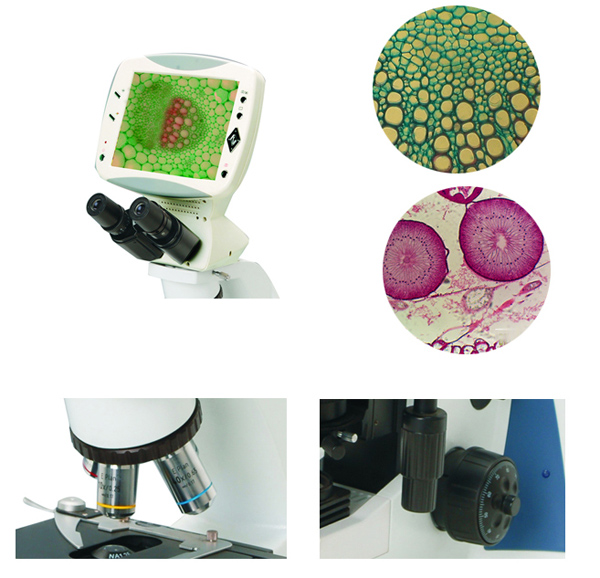

Real-time photographed of biological cells

CDMS-655 Series Compound Digital LCD Biological Microscope Feature and Parameter

Digital Parts

Pixel 500 Mega
Photo Resolution 2560X1920-1600X1200
Video Resolution 640X480
Sensor Size 1/2.5 Inches
LCD Screen 8 Inches TFT Screen, Resolution is 800X 600
Video Output AV Output (NTSC/PAL)
Data Output USB2.0
Menu Language Chinese / English
Storage SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene Mode Standard / Softness / Vivid
Exposure Mode Auto Exposure

Optical Parts

Model CDMS-655P
Viewing Head Compensation Free Binocular Head, Inclined 30° Interpupillary Distance 55 -75mm
Eyepiece Wide Field WF10X/20
Objective
 Infinity Plan Achromatic 4X/0.10,10X/0.25,40X/0.65(Spring),100X/1.25(Spring,Oil)
Nosepiece Quadruple
Focusing System Coaxial Coarse/Fine Focus System with Tension Adjustable, Limit Stopper ,Range 24mm, Fine Division 0.002mm
Illumination 6V,20W Halogen Lamp, Brightness Adjustable
Stage Double Layers Mechanical Stage 210mmX140mm
Condenser NA1.25 Abbe Condenser with Iris Diaphragm & Filter, Rack & Pinion Adjustment
Collector Halogen Illumination(Compose with Field Diaphragm)
