[CDMS-752] Compound LCD Digtal Polarizing Microscope

₩8,359,000

Quantity:

설명

Lab/Industrial Microscope

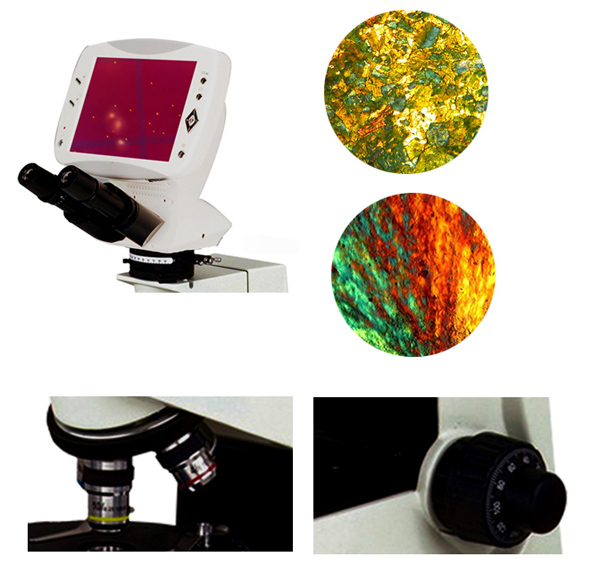

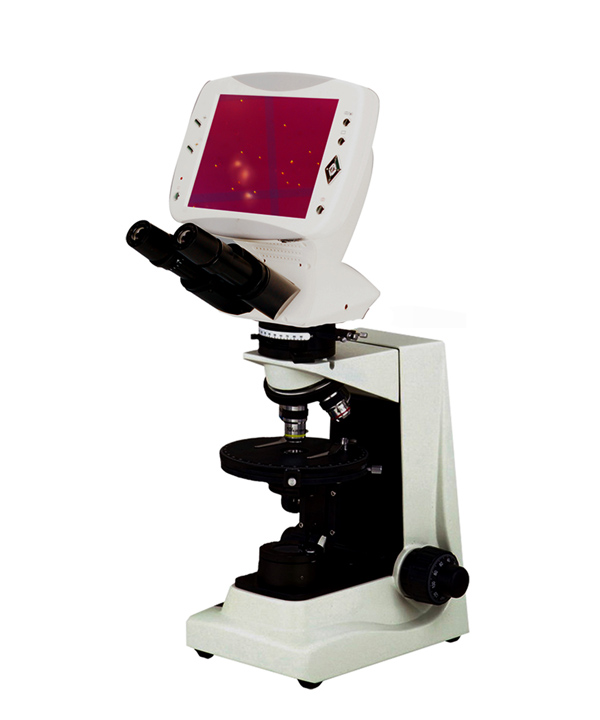

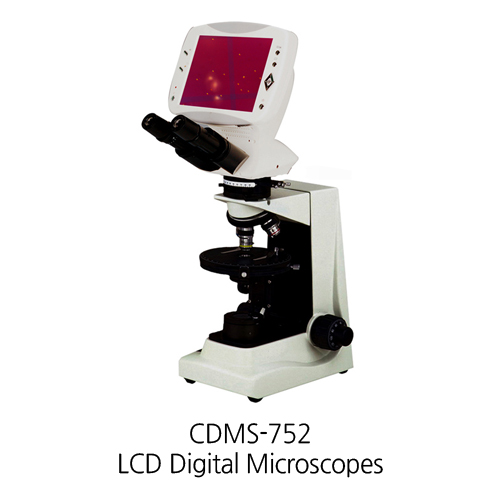

Compound LCD Digtal Polarizing Microscope

CDMS-752



CDMS-752 can observe mineral crystal figure,color and interference color and also exactly identify the optical performance of mineral and other crystal specimen, When the user can make single polarizing observation, orthoscopic observation, conescopic observation, With the features of easy operation,complete functions and economy, it is widely used in geology, petroleum. coal, chemical fiber, medical treatment and physic inspection, It is also widely used in academic demonstration and scientific research.

Specification


Digital Parts		 Pixel 5 Mega
Maximal Resolution 2560X1920
Video Resolution 640X480
LCD Screen 8 Inches TFT Screen, Resolution is 800X 600
Video Output AV Output (NTSC/PAL)
Data Output USB2.0
Menu Language Chinese / English
Storage SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene Mode Standard / Softness / Vivid
Exposure Mode Auto Exposure
Date Mode Year, Month, Day, Hour, Minute
Optical Parts Eyepiece WF10X/18
Objective Strain Free Achrmoatic Objective 4 X, 10 X, 40 X, 60 X
Nosepiece Backward Quintuple Nosepiece
Analyzer Rotatalbe Analyzer with Gradation 0°-90°
Bertrand Lens Bertrand Lens,Sliding in /out of Optical Path
Optical Compensator λ Slip(Frist Class Red)1/4 λ Slip Quartz wedge
Revolving Round STAGE Diameter ||μ145mm,360°Rotatable and Graduated in 1°Increments,Minimum Resolution 6°when Using Vernier Scale,Center Adjustable
Condenser Abbe Condenser NA1.25 with iris Diaphragm&Filter
Focusing Coaxial Coarse &Fine Adjustment,Range 28mm,Fine Division 0.002
Polarizer Sliding in /out of Optical Path,located on the Top of Collector
IIIumination 6V/20W Halogen Lamp,Brighness Adjustable
