Lab/Industrial Microscope

Measurement Microscope

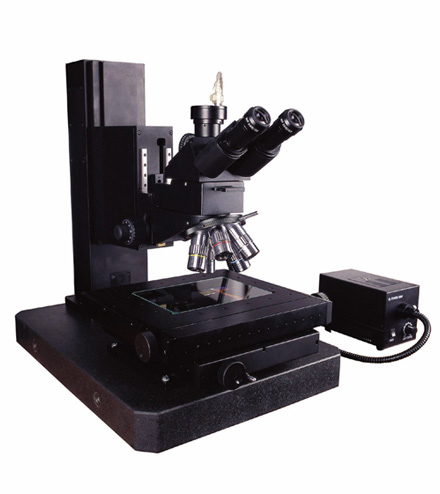

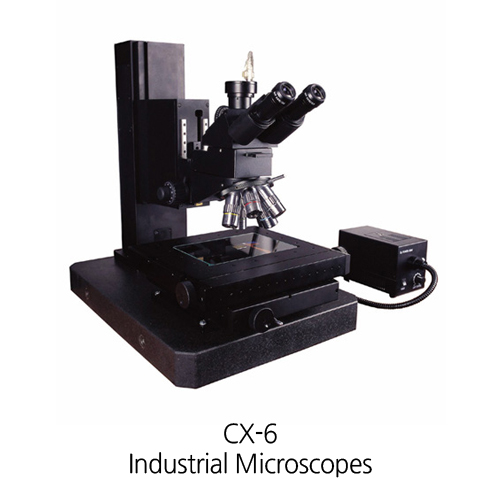

CX-6

Measurement microscope is widely used for crystal, integrated circuit(IC) examination and exact measurement.It is supplied with Cold light fiber reflected illuminator , imaging and viewing system, polarized imaging system.

Optical  Imaging  System

Infinitive  Optical  systam,  Tube  Lens  Focal  Length  200mm
-Compensation  Free  Trinocular  Tube,  Inclined  at  30°, Interpupillary  Distance  55-75mm
-High  Point  and  Wide  Field  Eyepiece  WF10/22
-Long  Working  Distance,  Plan  Apo  Objectives  2X/0.055,  5X/0.14,  10X/0.28,  20X/0.29,  50X/0.42
-Quintuple  Nosepiece

Focus  Adjustment  System
-Coaxial  Coarse  &  Fin  Focus  Adjustment  System,  Fine  Division  0.002mm

Stage
-6″x8″ Double  Layers  Mechanical  Stage,  Move  Range  153x204mm.

Three-dimensional  Measurement  System
-Resolution:  1|ìm
-Measurement  Exactitude:  ?à(2+L/200)|ìm
-Repeatedly  Orientation  Exactitude:  2|ìm

Illumination  System
-Dold  Light  Fiber  Reflected  Illnminator:  150W
-Complete  Geometric  Measurement(Point, Line, Circle,  Arc  etc.)
-Enactment,  Adjustment  of  Reference  Frame-Diversity  of  Display:  Conversion  of  Language,  Measure  and  Angle

Illumination  System
-Dold  Light  Fiber  Reflected  Illnminator:  150W
-Complete  Geometric  Measurement(Point, Line, Circle,  Arc  etc.)
-Enactment,  Adjustment  of  Reference  Frame-Diversity  of  Display:  Conversion  of  Language,  Measure  and  Angle
