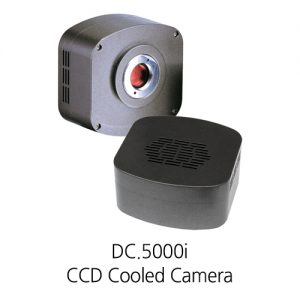

[DC.5000i] UNIVERSITY CCD Cooled Camera
₩6,942,100
[DC.3000p/DC.5000p] UNIVERSITY CMEX Pro
From: ₩1,568,600
From: ₩2,751,100
설명

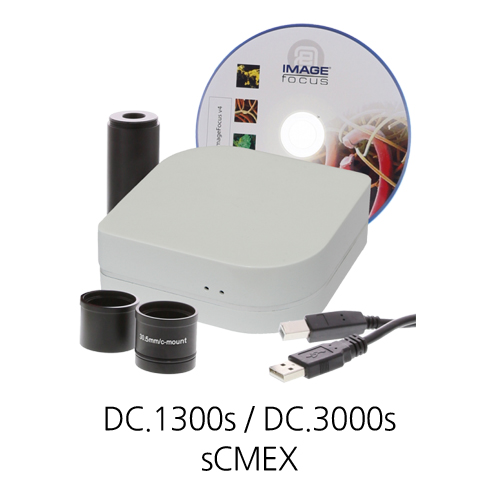

Digital Solutions UNIVERSITY
sCMEX
DC.1300s/DC.3000s
The different USB-2, USB-3 and WiFi cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Material Science microscopes as well as stereo microscopes
sCMEX USB-2 cameras with Scientific sCMOS sensor
The sCMEX-1 and sCMEX-3 cameras are equipped with a scientific sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-2.0 and supplied with ImageFocus 4 software
Besides capturing of images and videos, the software allows measurements on still and live images and to perform annotations on captured images. Compatible with Windows XP, Vista, 7, 8 and 10, both 32 and 64 bits configurations. Also available for Mac OS, the ImageFocus 4 Lite software
Highlights
- Scientific grade camera
- Excellent color rendering
- Suitable for fluorescence
- sCMOS color USB 2.0 camera
- 1/3” – 1/2.8” sensor
- 1278×1038 – 2048×1536 pixels
- Ultra-low signal/noise ratio
- High sensitivity and high speed
- ADC 16 bits, color depth 36 bits
- USB 2.0 interface
Models
Specifications
TECHNICAL SPECIFICATIONS sCMEX-1 (DC.1300s)
Sensor sCMOS 1/3 inch
Pixels 1278 x 1038 pixels, 1.3 Mpix
Scan mode Progressive, rolling shutter
Pixel size 3.63 μm x 3.63 μm
Filter RGB
Mount C-mount
Max fps Up to 25 frames per second (1278 x 1038 pixels)
Up to 39 frames per second (664 x 512 pixels, 2×2 binning mode)
ADC 16 bits
Color depth 36 bits
Sensitivity 1.5 V/lux-sec @ 550 nm
Exposure Automatic or manual, from 0.1 ms to 3 seconds
White balance Automatic/manual
Dynamic range 72 db
S/N max 55 db
Data interface USB 2.0 at 480 Mb/s
Operation 0 – 60° C, 45-85 % humidity
Storage temperature -20 to 70° Celsius
Supplied with 0.35x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for
stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), CD ROM with
ImageFocus 4 software, carton box
Software Windows XP, Vista, Windows7, Windows 8 (32 and 64 bit configurations)
Product number DC.1300s
___________________________________________________________________________________
TECHNICAL SPECIFICATIONS sCMEX-3 (DC.3000s)
Sensor sCMOS 1/2.8 inch
Pixels 2045 x 1536 pixels, 3.0 Mpix
Scan mode Progressive, rolling shutter
Pixel size 2.5 μm x 2.5 μm
Filter RGB
Mount C-mount
Max fps Up to11 frames per second (2045 x 1536 pixels)
Up to 27 frames per second (1024 x 768 pixels, 2×2 binning mode)
Up to 38 frames per second (684 x 512 pixels, 4×4 binning mode)
ADC 16 bits
Color depth 36 bits
Sensitivity 1.5 V/lux-sec @ 550 nm
Exposure Automatic or manual, from 0.1 ms to 3 seconds
White balance Automatic/manual
Dynamic range 69 db
S/N max 55 db
Data interface USB 2.0 at 480 Mb/s
Operation 0 – 60° C, 45-85 % humidity
Storage temperature -20 to 70° Celsius
Supplied with 0.35x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for
stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), CD ROM with
ImageFocus 4 software, carton box
Software Windows XP, Vista, Windows7, Windows 8 (32 and 64 bit configurations)
Product number DC.3000s
Accessories
DC.1326
C-mount adapter with 0.35x objective for standard Ø 23.2 mm tubes and 1/3” camera sensor
DC.1330
30 mm to 23.2 mm conversion adapters for stereo microscopes
DC.1335
30.5 mm to 23.2 mm conversion adapters for stereo microscopes
AE.1110
Stage 76 x 26 mm micrometer slide, 1 mm divided in 100 parts, 10 µm per division
AE.1111
Stage micrometer 2 mm divided in 200 parts, 10 µm per division
AE.1112
Stage 76 x 26 mm micrometer slide, 50 mm divided in 500 parts, 100 µm per division
문의사항 있으시면 연락주시기 바랍니다.
언제든지 친절히 상담 해드리겠습니다.
전화 상담 및 문의글 남겨주시면 빠른시간내로
견적서를 메일로 받아보실 수 있습니다.
추가 정보
| OPTION | DC.1300s, DC.3000s |
|---|
