Life Science Upright Microscopes

정립 현미경

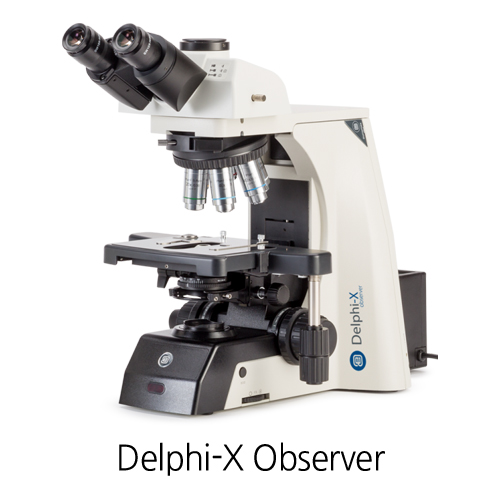

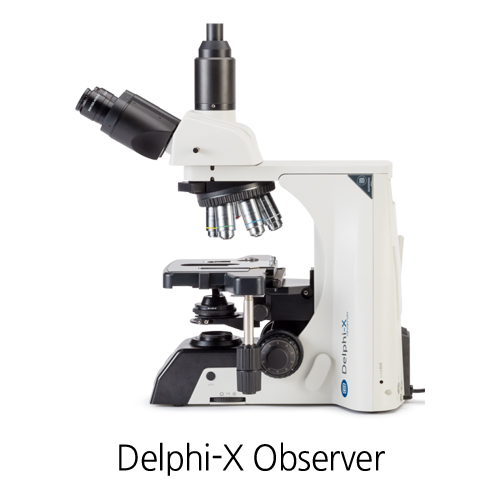

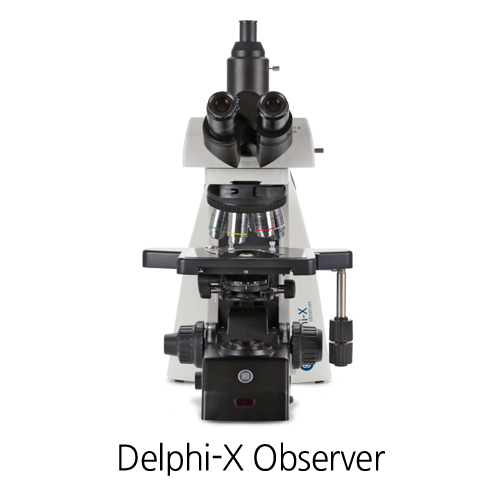

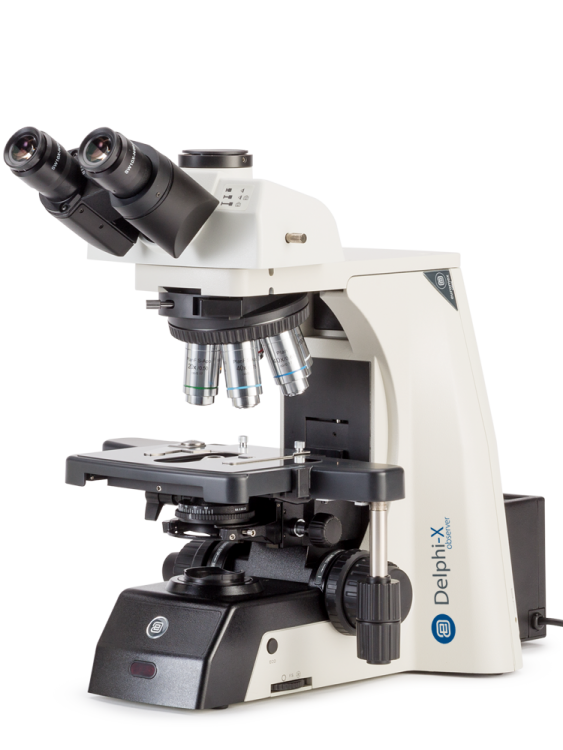

Delphi-X Observer



00

State-of-the-art microscopes for advanced Life Science applications.

The ergonomic design and outstanding state-of-the art objectives make the Delphi-X Observer the ideal microscope for advanced Life Science applications such as cytology and anatomopathology

The 25 mm field of view of the eyepieces and the plan apochromatic objectives enable observations with perfect color rendering at high resolving powers. With a sextuple revolver and large rackless stage with Gorilla glass, the Delphi-X Observer offers the absolute best available Life Science microscope on the market. Long working sessions will not be a problem due to the ergonomic design, low stage controls for either left or right handed users and an optional ergonomic tilting head to match every user requirement

01

Highlights

  • Outstanding state-of-the art objectives
  • Perfect color rendering
  • 25 mm field of view eyepieces
  • Plan EIS super contrast objectives
  • Plan Phase EIS super contrast objectives
  • Plan Semi Apochromatic EIS super contrast objectives
  • Diascopic 3 W NeoLED illumination
  • 3-Position beam splitter
  • Revolving sextuple reversed nosepiece
  • Optional: Stage with Sapphire glass

Models

Specifications

02

EYEPIECES

• DIN Super Wide field SWF 10x/25 mm, Ø 30 mm eyepieces
• DIN Super Wide Field SWF 10x/22 mm, Ø 30 mm eyepieces also available on special request

HEAD
Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm.

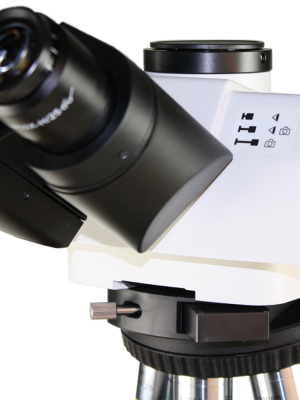

3-Position beamsplitter (0:100/ 100:0/ 80:20). Diopter adjustment on both eyepieces.

03



Optional:

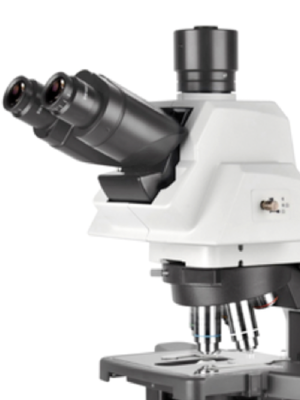

• Ergonomical tilting head (See photo, Order reference: Add -4 to product number)
• Face-to-face dual head (Order reference: Add -8 to product number)
• Multihead system with 2, 3 or 5 heads (Order reference: Add -6 to product number)

NOSEPIECE
Revolving sextuple reversed nosepiece on ball-bearings

OBJECTIVES (clinical routine laboratories)
Infinity corrected achromatic Plan Achromatic IOS 4x/0.10 WD 30 mm, 10x/0.25 WD 10.2 mm, 20x/0.40 WD 12.0 mm, S40x/0.65 WD 0.7 mm, S100x/1.25 (oil immersion) WD 0.2 mm objectives.
(Optional: 2x/0.06 WD 7.5 mm, S50x/0.95 (oil immersion) WD 0.19 mm and S60x/0.80 WD 0.30 mm)

OBJECTIVES (anatomo- and histopathology laboratories)
Infinity corrected achromatic Plan semi-apochromatic IOS 4x/0.13 WD 16.5 mm, 10x/0.30 WD 8.1 mm, 20x/0.50 WD 2.1 mm, S40x/0.75 WD 0.70 mm, S100x/1.30 (oil immersion) 0.15 mm objectives

OBJECTIVES (phase contrast)
Infinity corrected achromatic Plan Phase Achromatic IOS 10x/0.25 WD 10.2 mm, 20x/0.40 WD 12 mm, S40x/0.65 WD 0.7 mm, S100x/1.25 (oil immersion) WD 0.2 mm objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput. The S40x, S60x and S100x objectives are spring loaded

04

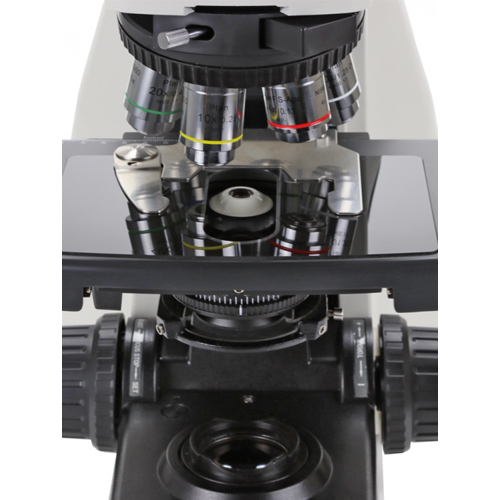

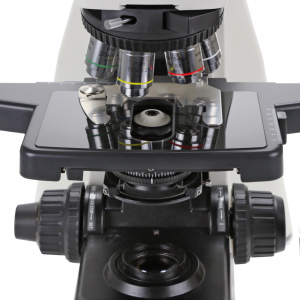

STAGE
190 x 152 mm stage with 78 x 32 mm integrated right-handed mechanical stage. Standard supplied with robust and scratch free Gorilla glass. Left-handed mechanical stage available on request (Order reference: Add -L to product number).

(Optional: Sapphire glass available on request)

FOCUSING
Coaxial coarse and fine adjustment, 100 graduations, 1 µm precision, 100 μm per rotation, total travel approximately 35 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control

CONDENSER (for brightfield)
In height adjustable N.A. 0.90/1.25 Abbe swing-out condenser

CONDENSER (for phase contrast)
In height adjustable N.A. 1.25 Zernike phase contrast condenser with phase annuli for 10/20/40x and S100x-oil objectives

DIASCOPIC ILLUMINATIONS
Two illuminations are available for the Delphi-X Observer microscope:
–  Diascopic intensity adjustable 3 W NeoLED™ illumination with internal 100-240 V power supply
–  Diascopic intensity adjustable 100 W 24 V halogen illumination with internal 100-240 V power supply

The diascopic halogen illumination comes with 2 push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kind of samples. The diascopic NeoLED illumination comes with 1 neutral density filter

NEOLED
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:
–  More oblique light from the LED lightsource can be captured, which increases the light output significantly
–  Less energy is required to achieve this level of light intensity
–  The larger aperture of NeoLED™ allows the optical systems of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics

05

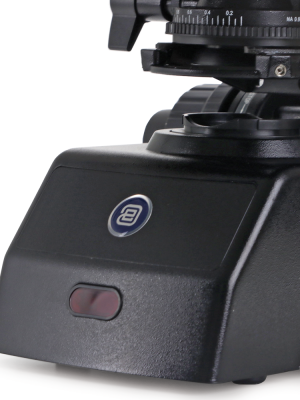

ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy.
The illumination of the microscope automatically switches off shortly after microscopists step away from their position

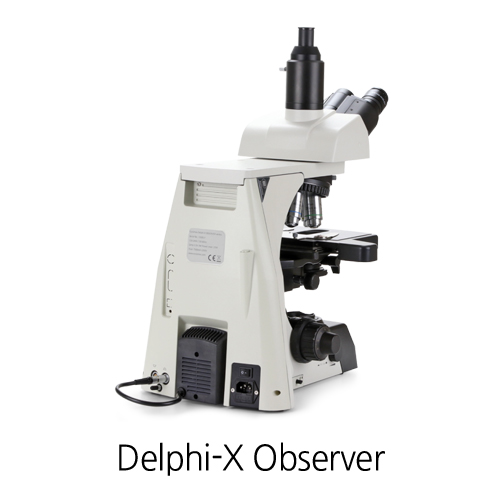

CARRYING GRIP
The carrying grip at the back of the microscope ensures safe transportation of the microscope and the integrated tool & holder makes sure the right tool is always available

PACKAGING
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil. All packed in a polystyrene box. LED versions are supplied with white and yellow filter and halogen models with blue filter.



CONFIGURATIONS

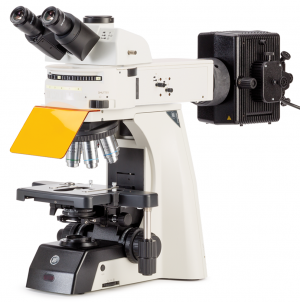

The Delphi-X Observer microscope is also available as fluorescence model

06

Accessories

DX.6010
Super wide field SWF 10x/25 mm eyepiece, Ø 30 mm tube
DX.6010-C
Super wide field SWF10x/25 mm eyepiece with crosshair, Ø 30 mm tube
DX.6012
Super wide field SWF12.5x/17,5 mm eyepiece, Ø 30 mm tube
DX.6015
Super wide field SWF15x/16 mm eyepiece, Ø 30 mm tube
DX.6020
Super wide field SWF20x/12 mm eyepiece, Ø 30 mm tube
DX.6099
Eye shades, short model
DX.6099-L
Eye shades, long model
DX.7202
Plan PLi 2x/0,06 infinity corrected objective, working distance 7,5 mm
DX.7204
Plan PLi 4x/0,10 infinity corrected objective, working distance 30 mm
DX.7210
Plan PLi 10x/0,25 infinity corrected objective, working distance 10,2 mm
DX.7220
Plan PLi 20x/0,40 infinity corrected objective, working distance 12 mm
DX.7240
Plan PLi S40x/0,65 infinity corrected objective, working distance 0,7 mm
DX.7250
Plan PLi S50x/0,95 infinity corrected oil-immersion objective, working distance 0,19 mm
DX.7260
Plan PLi S60/0,80 infinity corrected objective, working distance 0,3 mm
DX.7200
Plan PLi S100x/1,25 oil infinity corrected objective, working distance 0,2 mm
DX.7200-I
Plan PLi S100x/1,25 oil infinity corrected objective with built-in iris diaphragm, working distance 0,2 mm
DX.7304
Plan semi-apochromatic Fluarex PLFi APO 4x/0.13 infinity corrected objective, working distance 16,5 mm
DX.7310
Plan semi-apochromatic Fluarex PLi APO 10x/0.30 infinity corrected objective, working distance 8,1 mm
DX.7320
Plan semi-apochromatic Fluarex PLFi APO 20x/0.50 infinity corrected objective, working distance 2,1 mm
DX.7340
Plan semi-apochromatic Fluarex PLFi APO S40x/0.75 infinity corrected objective, working distance 0,7 mm
DX.7300
Plan semi-apochromatic Fluarex PLFi APO S100x/1.25 oil infinity corrected objective. working distance 0,15 mm
DX.7710
Plan Phase PLPHi 10x/0.25 infinity corrected objective
DX.7720
Plan Phase PLPHi 20x/0.40 infinity corrected objective
DX.7740
Plan Phase PLPHi S40x/0.65 infinity corrected objective
DX.7700
Plan Phase PLPHi S100x/1.25 oil infinity corrected objective
DX.9126
Phase contrast set with 10/20/S40 and S100x oil objectives, supplied with rotating disc phase contrast condenser with phase annuli and alignment telescope
DX.9140
Rotating disc phase contrast condenser with phase annuli without objectives
DX.9148
Aligment telescope for phase contrast, Ø 30 mm tube
DX.9704
Yellow filter Ø 45 mm



문의사항 있으시면 연락주시기 바랍니다.

언제든지 친절히 상담 해드리겠습니다.

담당자에게 카다로그 요청해주시면 메일로 보내드리겠습니다.

추가 정보

OPTION

DX.1153‑APLi, DX.1153‑PLi, DX.1153‑PLPHi, DX.2153‑APLi, DX.2153‑PLi, DX.2153‑PLPHi
