University Stereo Microscopes

Name: [DZ series] University Stereo Microscopes 실체 현미경
SKU: 22409
Availability: InStock

실체 현미경

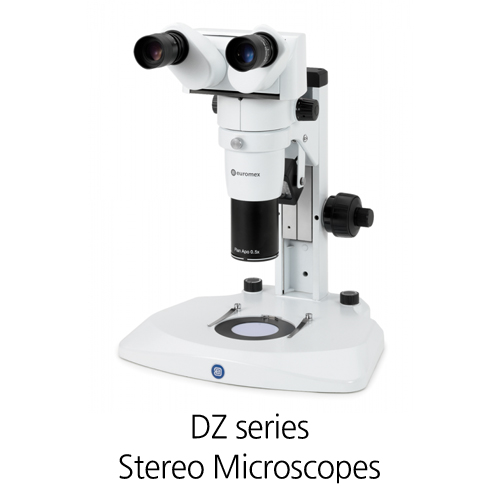

DZ series

The modular stereo microscopes of the DZ series combine ergonomics with very high resolution optics. Either standard versions or customized models are available thanks to the large choice of central zoom units, eyepieces, stands and accessories

6 standard configurations are available for magnifications from 8 to 80 times. One can configure other configurations for magnifications from 4x up to160 times around the central zoom bodies DZ.1000, DZ.0800 or DZ.0630

A fluorescence illumination unit enables scientific research like for studies of vertebrate development and gene function, teratology, genetics and environmental sciences

Highlights

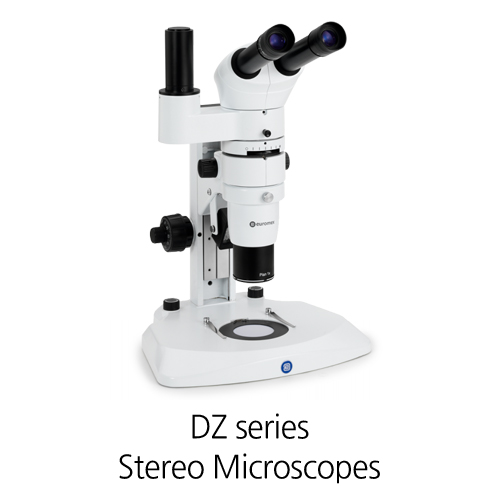

Binocular and trinocular models
6 standard configurations or customized configuration
Ergonomic tilting head from 5 to 35° tilting or fixed 20° inclined head, EWF10x/22mm eyepieces,
Three central zoom units from 4 to 320x
Field of views from 55 to 1.4 mm
Working distances from 126 to 33 mm
Ergonomical rack & pinion stands, universal stand or articulated arm stand
Transmitted and incident LED illumination
100 W epi-fluorescence mercury vapor illuminator

Models

Specifications

The modern DZ stereomicroscopes are modular configured around a central zoom body. The first with a 1:6,3 zoom ratio, a second with a 1:8 zoom ratio and a third with a 1:10 zoom ratio. The DZ modular microsope – with his Extra Wide Field eyepieces, Plan Apochromatic 0.5x, 1x and 2x common objectives, the ergonomical stereo head with 5-35° inclined tubes or a fix stereohead with 20° inclined tubes, stand with incident and transmitted LED illuminations – belongs together with the Euromex D series, to the top stereomicroscopes of Euromex

EYEPIECE(S)
Pair of EWF 10x/22 mm eyepieces

HEADS
Ergonomic binocular 5-35° tilting head. Binocular 20° tilted head. Diopter ± 5 adjustment on both eyepieces. Interpupillary distance from 55 to 75 mm. Photo ports for one or two cameras

CENTRAL ZOOM UNITS
Three central zoom units are available:
– 1:6.3 for total magnifications from 8 to 50x
– 1:8 for total magnifications from 8 to 64x
– 1:10 for total magnifications from 8 to 80x

COMMON MAIN OBJECTIVE
Standard configurations are supplied with a plan apochromatic Common Main objective 1x, working distance 78 mm. Other plan apochromatic Common Main objectives 0.5x (working distance 126 mm) and 2x (working distance 33 mm) are also available. All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated

STAND
Large ergonomic stand with ø 100 mm object plate and 2 object clamps. Coarse adjustment with adjustable friction. A universal stand and an articulated arm stand without illumination are also available for configurations built to customer’s specifications

ILLUMINATIONS
The transmitted and incident 3 W LED illuminations are supplied with a built-in 100-240 V power supply. Both illuminators can be used simultaneously and the light intensities can be adjusted separately

PACKAGING
Supplied with power cord, dust cover, a spare fuse and user manual. All packed in a polystyrene box

STANDARD CONFIGURATIONS
All 6 standard configurations are equipped with EWF10x/22mm eyepieces, plan achromatic Common Main objective 1x. All 6 standard configurations are equipped with rack & pinion stand with incident and transmitted LED illumination

MAGNIFICATIONS AND FIELD OF VIEWS FOR STANDARD CONFIGURATIONS

BUILD YOUR OWN MICROSCOPE
A customized DZ series stereo microscope can be configured to customer’s specifications by choosing one of the three central zoom units DZ.0630, DZ.0800 or DZ.1000 and adding the necessary components for the application. Pair of eyepieces, an ergonomically 5 to 35° tilting head or fix 20° inclined head, a common 0.5x, 1x or 2x main objective, a large ergonomic LED stand, a boom or an articulated arm stand.

Other accessories like a photo/camera unit or dual iris diaphragm can complete the configuration
