EYEPIECE(S)
Wide field WF 10x/18 mm eyepiece with pointer. The eyepieces of the binocular and trinocular models are supplied without pointer

HEAD

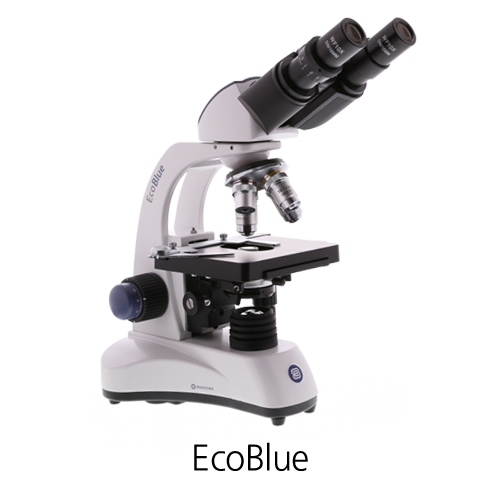

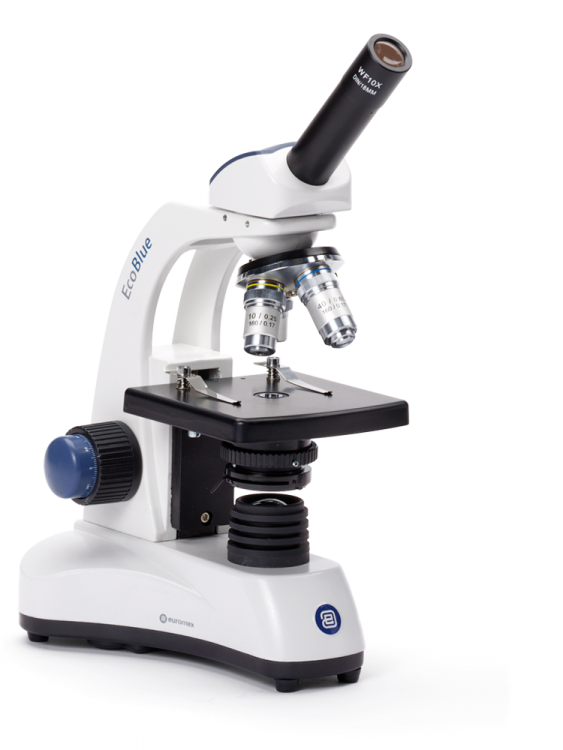

Monocular models with 45° inclined tubes. Binocular and trinocular models have 30° inclined tubes. The interpupillary distance is adjustable between 48 and 75 mm. All binocular and trinocular models have a diopter ± 5 diopter adjustment on left tube. All heads are 360° rotatable. Models with an integrated USB-2 camera are supplied with a 3.2 MP 1/2” CMOS sensor with 2048 x 1536 pixels resolution

The EcoBlue can also be supplied with a discussion head

NOSEPIECE
Revolving nosepiece for 4 objectives on ball bearings

OBJECTIVES

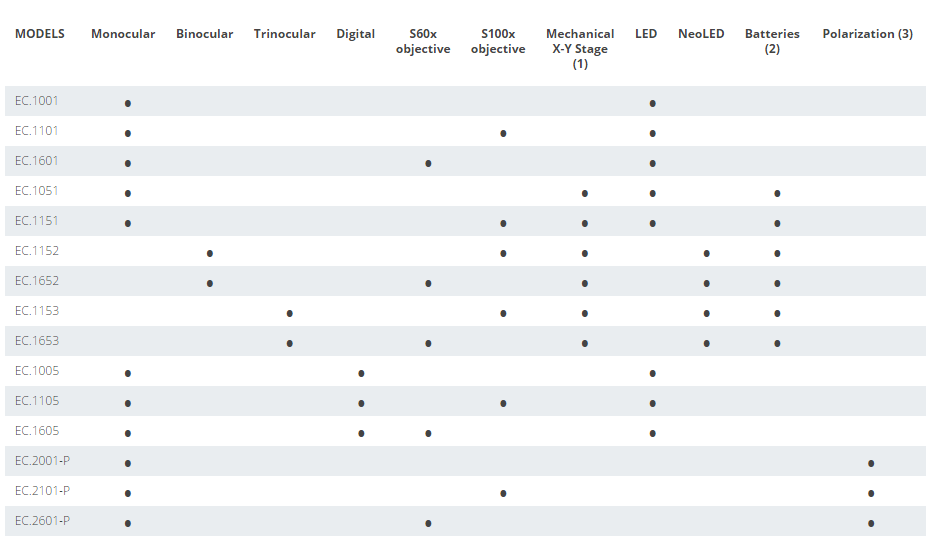

Achromatic 4x/0.10, 10x/0.25 and S40x/0.65 objectives. Models EC.1151, EC.1152 and EC.1153 also have an S100x oil immersion objective. The S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
Coaxial coarse and fine adjustments, 200 graduations,12.5 μm per graduation, 2.5 mm per rotation, total travel approximately 15 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment are equipped with friction control

STAGES
Plain 123 x 119 mm stage with two non-removable object clamps (optional EC.9500 attachable 51 x 26 mm X-Y mechanical stage available). Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage

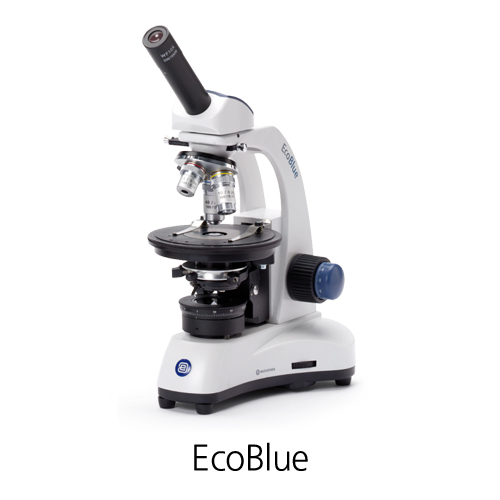

The models for polarization are supplied with 129 mm circular stage, 360° rotatable, 2 object clamps and swing-out analyzer mounted on the lamp house
