교육용 실체현미경

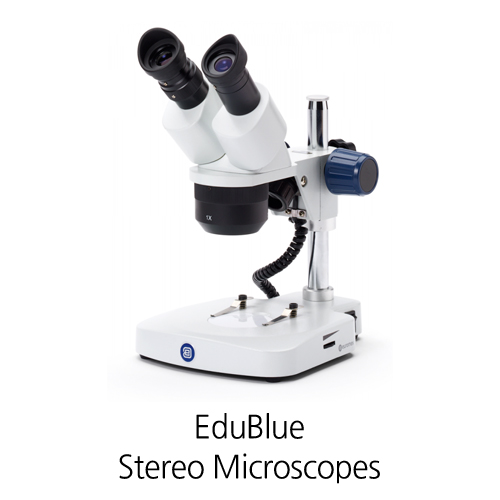

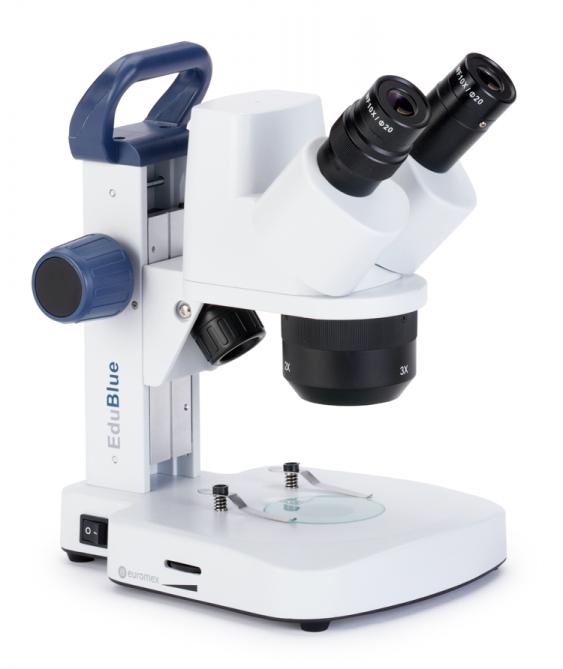

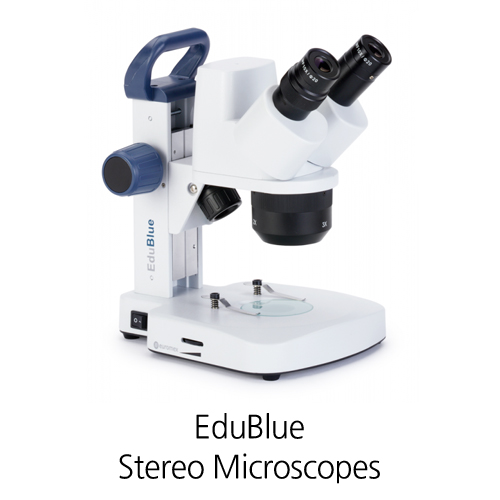

Education Stereo Microscopes

EduBlue

The outstanding optical performance of the ergonomic Euromex BlueLine stereo microscopes enables long productive working sessions for students, for beginner or advanced science teaching classes

The EduBlue microscopes are ideal for educational purposes and are available with dual or triple pair of objectives for 5x up to 80x magnifications and equipped with LED incident and transmitted illuminations. The two parallel optical trains allow the three dimensional observation of small insects, plants, stones and minerals

Highlights



  • Designed for education
  • Robust and sturdy, with secured eyepieces
  • Dual or triple magnifications
  • Available in ergonomic rack & pinion and pillar stands
  • Double 1 W LED illumination
  • With rechargeable batteries for cordless use
  • Digital models with 3.2 MP camera available
  • Ergonomic carrying grip



Models

Specifications



EYEPIECE(S)
Pair of secured WF10x/20 mm eyepieces supplied with eyecups

HEAD
Binocular head with 45° inclined tube. Diopter adjustment of ± 5 on one side. Interpupillary distance adjustable between 55 and 75 mm. Digital head is supplied with a 3.2 MP USB-2 1/2” CMOS camera. Maximum 2048 x 1536 pixels resolution

DUAL MAGNIFICATION OBJECTIVES
Revolving nosepiece with dual 1x/3x and 2x/4x , which can provide standard magnifications of 10x and 30x or 20x and 40x. Working distance 60 mm. Field of views of 20/6.7 mm or 10/5 mm. Magnifications can be altered using optional eyepieces. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

TRIPLE MAGNIFICATION OBJECTIVES

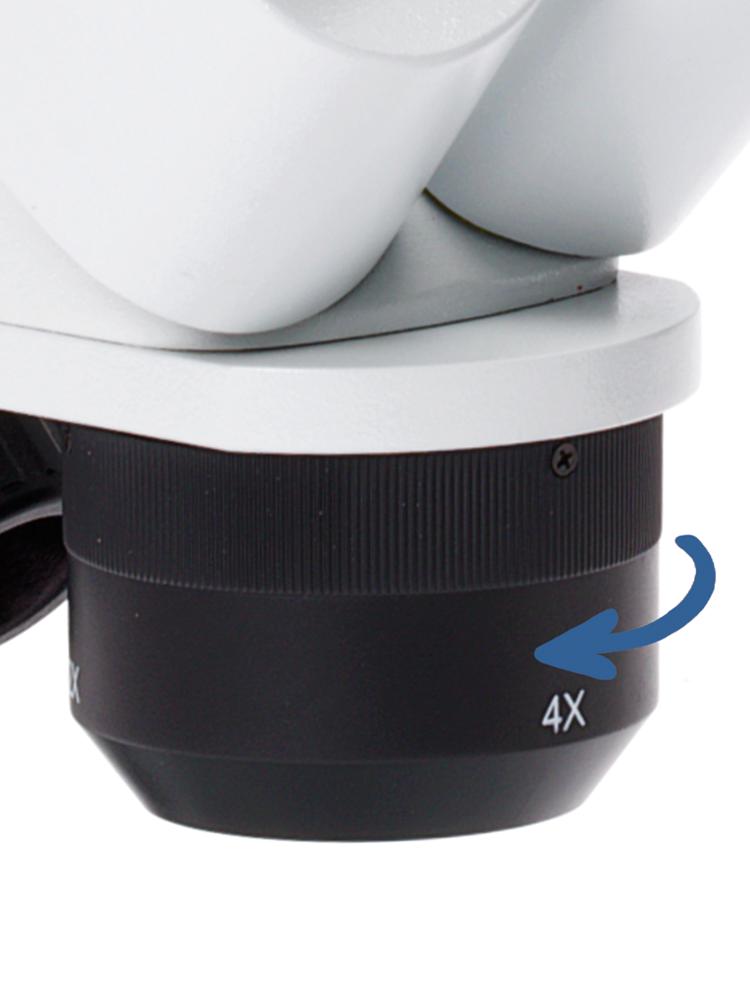

Revolving nosepiece with triple 1x/2x/3x and 1x/2x/4x, which can provide standard magnifications of 10x, 20x and 30x or 10x, 20x and 40x. Working distance 60 mm. Field of views of 20/10/6.7 mm or 20/10/5 mm. Magnifications can be altered using optional eyepieces

(Photo: Triple magnification)

STAND
The rack & pinion and pillar stands of the EduBlue are equipped with ergonomically designed flat bases, complete with 2 object clamps and Ø 60 mm transparent and black/ white stage plate. The coarse adjustment is equipped with tension control. The stands are alloy metal casted with hardened off-white coating

ILLUMINATION
The transmitted and incident 1 W LED illuminations can be used simultaneously and the light intensities can be adjusted separately. Supplied with an external 100-240 V mains adapter/charger and 3 rechargeable batteries for corded and cordless use

DIGITAL MODELS
Digital models are equipped with a 3.2 MP USB 2 1/2 inch sensor CMOS camera. Maximum resolution is 2048 x 1536 pixels, smaller resolutions are selectable. Delivered with ImageFocus 4 for capturing of images and videos. This software also allows a full range of analysis like measurements on still and live images and annotations on captured images. Compatible with Windows XP, Vista, 7, 8 and 10, all 32 and 64 bits configurations. For Mac OS more basic software is available. Updates can be downloaded on our website

PACKAGING
Supplied with 100-240 V mains adapter/charger, dust cover, eyecups and user manual. All packed in a polystyrene box

Accessories
ED.4300
Aluminium case for EduBlue series
ED.6005
Pair of HWF 5x/22mm eyepiece
ED.6010
Pair of HWF 10x/20 mm eyepiece
ED.6015
Pair of HWF 15x/12 mm eyepiece
ED.6020
Pair of HWF 20x/10 mm eyepiece
ED.6110
HWF 10x/20 mmmicrometer eyepiece
ED.6099
Pair of eyecups for EduBlue
ED.9570
Pair of object clamps for stage
ED.9950
Stage plate frosted glass opaque Ø 60 mm
ED.9956
Stage plate black/white Ø 60 mm
ED.9975
External 100-240 V mains adapter/charger
SL.5504
Led replacement unit for EduBlue, incident illumination
SL.5505
Led replacement unit for EduBlue, transmitted illumination
AE.1112
Stage 76 x 26 mm micrometer slide, 50 mm divided in 500 parts, 100 µm per division
PB.5245
Lens cleaning paper, 100 sheets per pack
PB.5274
Iso propyl alcohol 99%, 200 ml
PB.5275
Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabs

문의사항 있으시면 연락주시기 바랍니다.



언제든지 친절히 상담 해드리겠습니다.



전화 상담 및 문의글 남겨주시면 빠른시간내로

견적서를 메일로 받아보실 수 있습니다.



추가 정보

OPTION

ED.1302‑P, ED.1302‑S, ED.1305‑S, ED.1402‑P, ED.1402‑S, ED.1405‑S, ED.1502‑S, ED.1505‑S, ED.1802‑S, ED.1805‑S
