Digital Solutions EDUCATION
EduPad

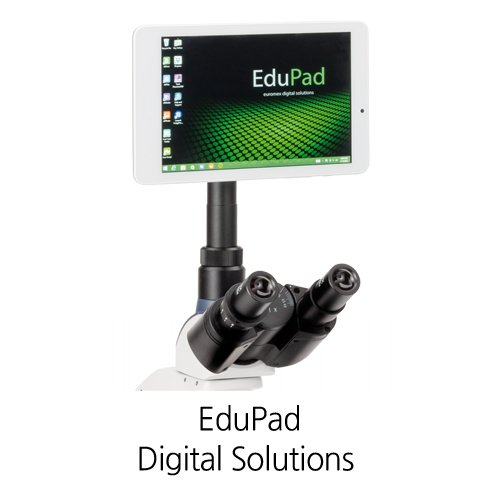

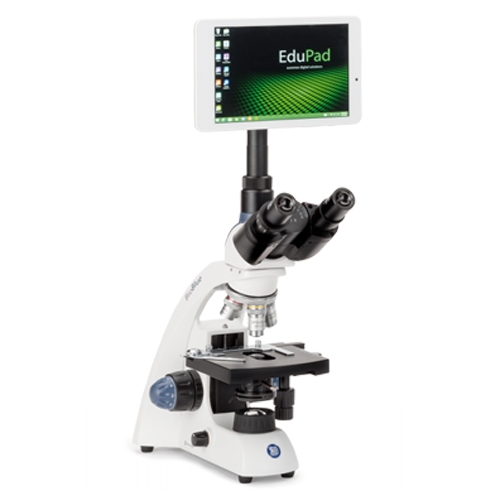

Tablet with microscope camera
The EduPad tablet with a 8” display can be supplied with a 1.3 MP, 3.2 MP, 5 MP or even a WiFi camera. Together with the ImageFocus 4 or ImageFocus Alpha software it offers a state-of the art solution for modern microscopy for education, industry and laboratory
Model and appearance of the tablet can be subject to change without notice
Highlights
- 8” Tablet with microscope camera
- 1280 x 800 pixels touchscreen
- Full Windows 8.1, 32 bit system
- ImageFocus 4 capture software for PC
- ImageFocus Alpha for WiFi enabled PC and Android devices
- Tablet can be fully detached from camera
- 1.3 MP, 3.2 MP, 5.0 MP or WiFi camera
Models
Specifications
PROCESSOR
Quad Core 1.33 GHz with HD graphics processor
SCREEN
1280 x 800 pixels (WGXA) touchscreen, LED backlight
MEMORY
1 GB DDR RAM, 2 MB cache
STORAGE
32 GB intern SDD, micro SD up to 32 GB
WEBCAM
2 MP, 1600 x 1200 pixels front and rear cameras
CONNECTIVITY
Micro USB 2.0, Wi-Fi 802.11 b/g/n and Bluetooth 4.0
AUDIO
Stereo with 3.5 mm audio jack and internal microphone
BATTERY
Lithium, 4420 mAh, 17 Wh
HOUSING
Aluminium, white colour, 214 x 128 x 9.8 mm
WEIGHT
370 gram
COMPATIBLE WITH
Windows XP, Vista, Windows 7, 8 and 10, both 32 and 64 bits configuration
SOFTWARE

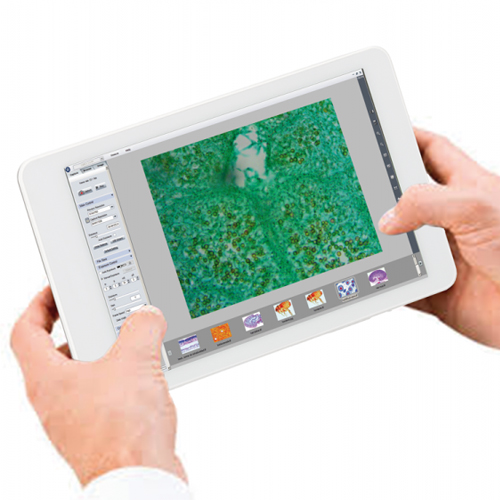

EduPad is supplied with ImageFocus 4 software is compatible with all above mentioned USB-2 cameras. Besides live imaging, the software captures images in Jpeg, Tiff or Bmp formats or video recording in Avi format. The software has a wide range of functions and measurements can be done on still and live images. The brightness, contrast and saturation of captured images can be adjusted. Camera parameters for exposure time, white balance and color control are easily accessible
Accessories
AE.1110
Stage 76 x 26 mm micrometer slide, 1 mm divided in 100 parts, 10 µm per division
AE.1111
Stage micrometer 2 mm divided in 200 parts, 10 µm per division
AE.1112
Stage 76 x 26 mm micrometer slide, 50 mm divided in 500 parts, 100 µm per division
문의사항 있으시면 연락주시기 바랍니다.
언제든지 친절히 상담 해드리겠습니다.
전화 상담 및 문의글 남겨주시면 빠른시간내로
견적서를 메일로 받아보실 수 있습니다.
추가 정보
| OPTION | EP.1300c, EP.3000c, EP.5000‑WIFI, EP.5000c |
|---|
