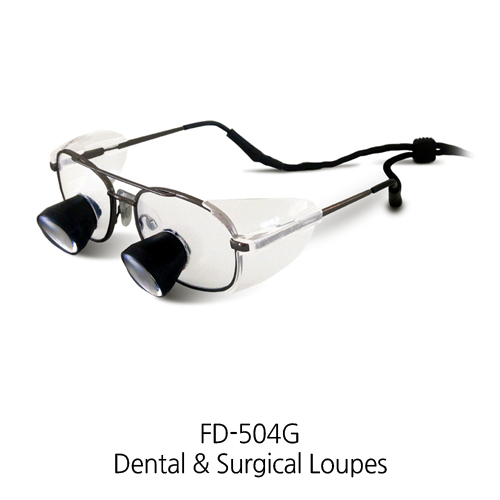

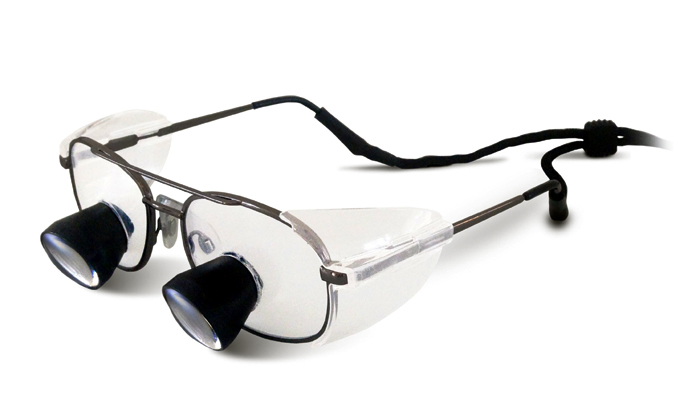

[FD-504G] 2.3X Magnification High Quality TTL Dental Surgical Loupe W/ Titanium Frame

686,000

Quantity:

설명

Medical Microscope

2.3X Magnification High Quality TTL Dental Surgical Loupe W/ Titanium Frame

FD-504G



Binocular loupe is a simple, small magnification device used to see small details more closely. Many dentists use loupes to scrutinize their patients’ oral cavity in order to make a better diagnosis. A typical magnification for use in dentistry is 2.5x, but dental loupes can be anywhere in the range from 2x to 8x.

Experience shows that the most commonly used and recommended magnification for loupes in different dental fields are as follows:

– Specialty Magnification General dentistry, Dental hygiene, Implantology: 2.5x .3.0x. 3.5X
– Endo, Crown and Bridge work: 3.5x – 4.0x
– Lab work, Technician: 4.0x . 5.0x .6.0X or 8.0X

The loupe are also applied to other microsurgery, vascular surgery, thoracic surgery, orthopedic, ophthalmology, gynecological, ENT operation, plastic surgery, precision instruments repairing and assembling and fingerprint identification and so on.

TTL is “Through The Lens”, It means that the loupes are glued to your lens. Although TTL is slightly lighter than Flip-Up system, it can not be moved from line of vision and the user can not make adjustments to the angle of declination to accommodate for the patient’ s position. And since each pair of TTL loupes is custom made, it is much more expensive than the Flip-Up loupes. The loupes Through The Lens are light weight, and laconic appearance.It has fashionable design and comparable with designer frames.

• Razor-sharp, edge-to-edge clarity
• Extremely high resolution optics
• Lightweight design
• Multi-coated for: anti-glare, anti-fog and scratch-resistance

Specifications:

Magnification Style: Galilean style
Mounting Options: TTL
Magnification Power: 2.3x
Field of View: 78mm
Field of Depth: 50-60mm
Pupillary distance: 55-65mm
Working Distance: 330mm,370mm,420mm,460mm,500mm available
Frame: Titanium Frame
Weight:70 g
