설명

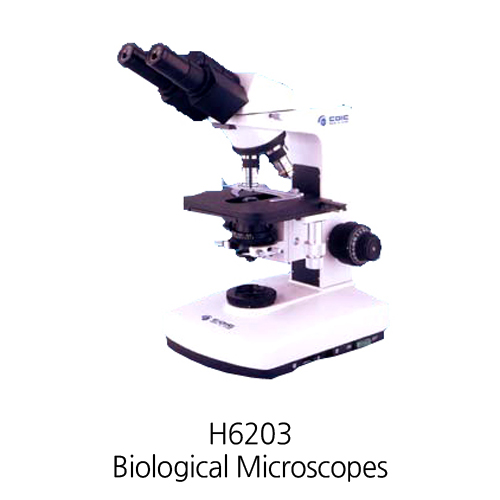

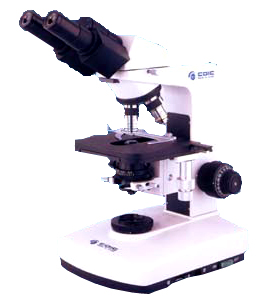

Lab/Industrial Microscope
Biological Microscope
H6203
| Total magnifications | 40X-1600X |
| Eyepiece | WF 10X |
| S-plan achromatic objectives | SP10/0.25 SP25/0.40 SP40/0.65 SP100/1.25 (Oil) |
| Plan achromatic objectives | PL10/0.25 PL25/0.40 PL40/0.65 PL100/1.25 (Oil) |
| Condenser | NA1.25 |
| Base | Revolving switch |
| Built in 6V 20W halogen lamp with adjustable brightness Optional accessories |
|
| 1) Eyepieces | WF10X(Pointer) WF16X |
| 2) Heads | Seidentopf binocular head |
| Seidentopf trinocular head | |
| Sliding binocular head | |
| Sliding trinocular head | |
| 3) Plan achromatic objective | PL4/0.10 |
| 4) Phase contrast attachment | |
| 5) Dark field attachment | Dark field condenser (N.A.0.83-0.91) |
| 6) Polarizer attachment | Polarizer slide |
| Analyzer slide | |
| 7) 35mm photo attachment | 10X reticule eyepiece S2.5X S4X S6.3X photo eyepieces |
| 8) C-Mount and CCD camera | |
| 9) Fluorescence attachment | Incident fluorescence illuminator (B, G) |
| Incident fluorescence illuminator (B, G, V, UV) | |
| DC 100W mercury lamp house (220V 50HZ/110V 60HZ) | |
| AC 200W mercury lamp house (220V 50HZ) | |
| 10) Fluorescence objectives | 25/0.65 40/1 (Glyc) |
| 100/1.25(Glyc) | |
| 11) Side viewing attachment | Two view field space 600mm |
H6000 Series Biological Microscope Standard Outfits
| Items | Spec.and Parameter | H6203 | Order No. | |
| Eyepiece | 10X-18 | ●● | EP10a | |
| Plan Achromat Objectives | SPlan 10/0.25 | B-OSPr10 | ||
| SPlan 25/0.40 | B-OSPr25 | |||
| SPlan 40/0.65 | B-OSPr40a | |||
| SPlan 100/1.25(Oil) | B-OSPor100 | |||
| Plan 10/0.25 | ● | B-OPr10 | ||
| Plan 25/0.40 | ● | B-OPr25 | ||
| Plan 40/0.65 | ● | B-OPr40 | ||
| Plan 100/1.25(Oil) | ● | B-OPor100 | ||
| Eyepiece Heads | Binocular Head (30°Inclined,Seidentopf) | ● | TBR06 | |
| Trinocular head (30°Inclined,Seidentopf) | TTR02 | |||
| Main Body | Worm and Gear Focusing Mechanism、 Quadplex Nosepiece | ● | A13 | |
| Mechanical Stage | Moving Range:76x50mm Size:160x135mm | ● | S30 | |
| Condenser | N.A. 1.25 | C05 | ||
| N.A. 1.25 | ● | C23 | ||
| Condenser Focusing Team | Rack and Pinion Focusing Mechanism | ● | CA03a | |
| Base | Knob Switch、6V20W Halogen Tungsten Lamp | ● | B30 | |
| Fluorescence Objectives | 25/0.65 | B-OFr25 | ||
| 40/1(Glycerin) | B-OFor40 | |||
| 100/1.25(Glycerin) | B-OFor100 | |||
| Epi-fluorescence Mian Body (B、G) | FD07 | |||
| 100W Mercury Lamp House | LH08 | |||
| Power Supply Case of 100W Mercury Lamp | LS14 | |||
| Glycerin | ||||
| Immersion Oil | ● | |||
| Filter | ￠32 (Blue) | ● | CU02-1 | |
