Lab/Industrial Microscope
Biological Microscope

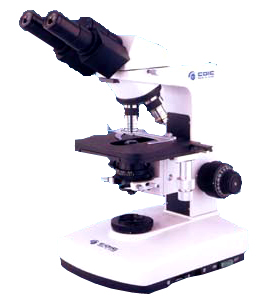

H6302
Total magnifications ……………………….40X-1600X
Eyepiece ………………………………………..WF 10X
S-plan achromatic objectives
…SP10/0.25 SP25/0.40 SP40/0.65 SP100/1.25 (Oil)
Plan achromatic objectives
…. PL10/0.25 PL25/0.40 PL40/0.65 PL100/1.25 (Oil)
Condenser ……………………………………….NA1.25
Base …Revolving switch
Built in 6V 20W halogen lamp with adjustable brightness
Optional accessories
1) Eyepieces………………… WF10X(Pointer) WF16X
2) Heads ……………………Seidentopf binocular head
………………………………..Seidentopf trinocular head
……………………………………..Sliding binocular head
……………………………………. Sliding trinocular head
3) Plan achromatic objective …………………PL4/0.10
4) Phase contrast attachment
5) Dark field attachment
………………….. Dark field condenser (N.A.0.83-0.91)
6) Polarizer attachment …………………Polarizer slide
………………………………………………. Analyzer slide
7) 35mm photo attachment
..10X reticule eyepiece S2.5X S4X S6.3X photo eyepieces
8) C-Mount and CCD camera
9) Fluorescence attachment
………………..Incident fluorescence illuminator (B, G)
………Incident fluorescence illuminator (B, G, V, UV)
..DC 100W mercury lamp house (220V 50HZ/110V 60HZ)
..AC 200W mercury lamp house (220V 50HZ)
10) Fluorescence objectives …….25/0.65 40/1 (Glyc)
……………………………………………… 100/1.25(Glyc)
11) Side viewing attachment
……………………………. Two view field space 600mm
H6000 Series Biological Microscope Standard Outfits
Items | Spec.and Parameter | H6302 | Order No. | |
Eyepiece | 10X-18 | ● | EP10a | |
Plan Achromat Objectives | SPlan 10/0.25 | ● | B-OSPr10 | |
SPlan 25/0.40 | ● | B-OSPr25 | ||
SPlan 40/0.65 | ● | B-OSPr40a | ||
SPlan 100/1.25(Oil) | ● | B-OSPor100 | ||
Plan 10/0.25 | B-OPr10 | |||
Plan 25/0.40 | B-OPr25 | |||
Plan 40/0.65 | B-OPr40 | |||
Plan 100/1.25(Oil) | B-OPor100 | |||
Eyepiece Heads | Binocular Head (30°Inclined,Seidentopf) | TBR06 | ||
Trinocular head (30°Inclined,Seidentopf) | ● | TTR02 | ||
Main Body | Worm and Gear Focusing Mechanism、 Quadplex Nosepiece | ● | A13 | |
Mechanical Stage | Moving Range:76x50mm Size:160x135mm | ● | S30 | |
Condenser | N.A. 1.25 | ● | C05 | |
N.A. 1.25 | C23 | |||
Condenser Focusing Team | Rack and Pinion Focusing Mechanism | ● | CA03a | |
Base | Knob Switch、6V20W Halogen Tungsten Lamp | ● | B30 | |
Fluorescence Objectives | 25/0.65 | B-OFr25 | ||
40/1(Glycerin) | B-OFor40 | |||
100/1.25(Glycerin) | B-OFor100 | |||
Epi-fluorescence Mian Body (B、G) | FD07 | |||
100W Mercury Lamp House | LH08 | |||
Power Supply Case of 100W Mercury Lamp | LS14 | |||
Glycerin | ||||
Immersion Oil | ● | |||
Filter | ¢32 (Blue) | ● | CU02-1 |
Note:“●”in the table is standard attachment. “○”is optional accessories. Design change:To keep pace with technological advance ,we have reserved the right to make design modifications and changes without notice.
