Lab/Industrial Microscope

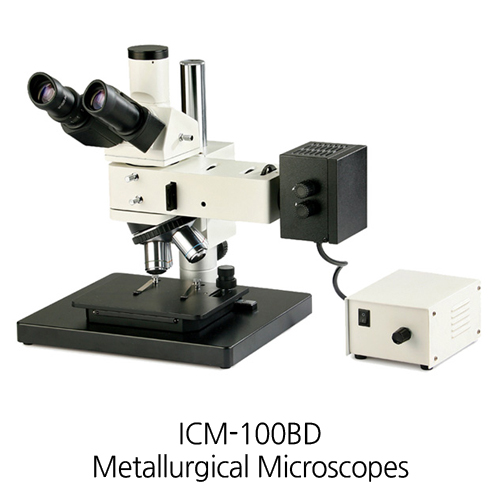

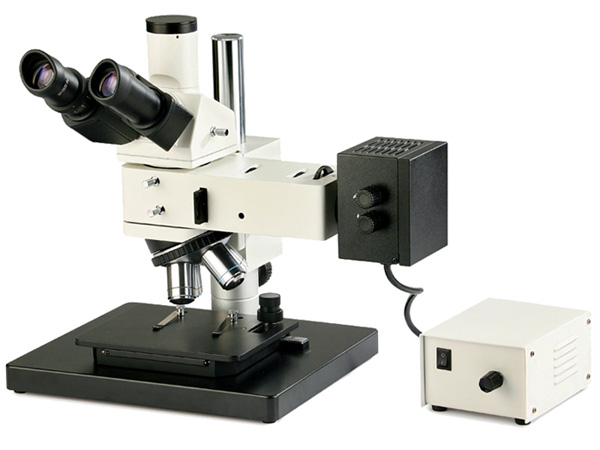

Industry Checking and Measure Microscope
ICM-100BD
ICM-100/100BD Industry checking and measure microscopes are suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece. Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.
Specification
| Eyepiece | Wide field WF10X(field number:Φ22mm) | ||
| Infinity plan achromatic objective | ICM-100 (Equipped with bright field objectives) | PL L5X/0.12 (Work distance):26.1 mm | |
| PL L10X/0.25 (Work distance):20.2 mm | |||
| PL L20X/0.40 (Work distance):8.80 mm | |||
| PL L50X/0.70 (Work distance):3.68 mm | |||
| ICM-100BD (Equipped with bright & dark field objectives) | PL L5X/0.12 BD (Work distance):9.70 mm | ||
| PL L10X/0.25 BD (Work distance):9.30 mm | |||
| PL L20X/0.40 BD (Work distance):7.23mm | |||
| PL L50X/0.70 BD (Work distance):2.50 mm | |||
| Eyepieces tube | Trinocular inclined 30˚, can be shot in 100% light flux. | ||
| Epi-illumination system | ICM-100 | 12V30W halogen and brightness enable control | |
| ICM-100BD | 12V50W halogen and brightness enable control | ||
| Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer. | |||
| Focus system | Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 1μm. | ||
| Nosepiece | Quintuple (Backward ball bearing inner locating) | ||
| Working stage | Base overall size:300mmX240mm | ||
| Mechanical stage overall size:185mmX140mm, moving range:Transersal :35mm, Longitudinal:30mm | |||
Optional accessories
| Eyepiece | Wide field WF10X(field number:Φ22mm) | 1122010 | |
| Objective | ICM-100 | PL L40X/0.60 (Work distance):3.98 mm | 2260140 |
| PL L60X/0.75 (Work distance):3.18 mm | 2260160 | ||
| PL L80X/0.80 (Work distance):1.25 mm | 2260180 | ||
| PL L100X/0.85 (Work distance):0.40 mm | 2260111 | ||
| ICM-100BD | PL L40X/0.75 BD (Work distance):3.04 mm | 2120140 | |
| PL L60X/0.75 BD (Work distance):1.90 mm | 2120160 | ||
| PL L80X/0.80 BD (Work distance):0.80mm | 2120180 | ||
| PL L100X/0.85 BD (Work distance):0.22 mm | 2120111 | ||
| CCD adapter | 0.4X | 810001 | |
| 0.5X | 810004 | ||
| 1X | 810002 | ||
| 0.5Xwith dividing 0.1mm/Div | 810003 | ||
| Camera | DV-1(with USB and Video output) | 800001 | |
| DV-2(with USB output) | 800003 | ||
| DV-3(with Video output) | 800005 | ||
| Digital camera adapter | CANON(EF), NIKON(F) | 820001 | |
