설명
Lab/Industrial Microscope

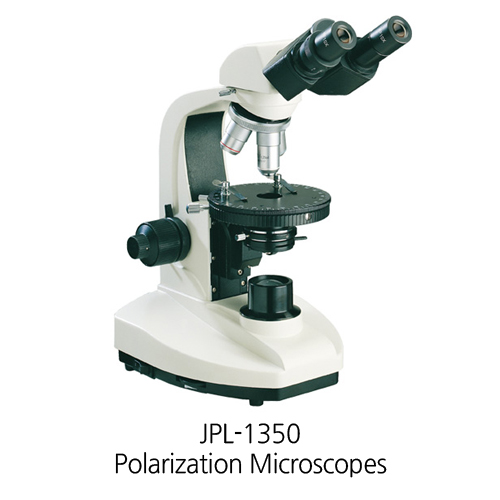

Simple Polarization Microscope W/ Rotatable Stage
JPL-1350
JPL-1350 series polarization microscopes are utilized polarize light to observe and research the polarize characteristic of the matter which have the double refraction .They can be used to medical inspection, such as the frame detail of the nerve fibre, the animal muscle, the plant fibre and the crystal of the tooth, bone, hair and alive cell etc. It can be observe the fine frame of the biochemistry salt crystal that the fine frame can’t be observe for nature light.
Advantage
1) Equipped with wide field eyepieces and achromatic objectives, the field of view is widely and clear.
2) Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing:2μm.
3) 6V 20W halogen lamp transmission illumination, adjustable brightness.
Specification
| Model | JPL-1350 | JPL-1350A |
| Eyepiece | Wide field WF10X(Φ18mm) | |
| Objective | Achromatic objectives 4X/0.10 | |
| Achromatic objectives 10X/0.25 | ||
| Achromatic objectives 40X/0.65 (Spring) | ||
| Achromatic objectives 100X/1.25(Spring, oil) | ||
| Eyepieces tube | Binocular, Inclination of 30 | |
| Polarization analyzer | Sliding | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. | |
| Nosepiece | Quadruple (Frontward ball bearing inner locating) | |
| Stage | Rotatable stage(Diameter:Φ120mm) | Double layer mechanical stage with (Φ100mm) rotatable stage (Size: 135mmX125mm Moving range: 70mmX30mm) |
| Abbe condenser | NA.1.25Rack & pinion adjustable | |
| Filter | Blue filter | |
| Frosted filter | ||
| Polarizer | 360° rotatable stage | |
| Collector | For illumination with halogen lamp With field diaphragm | |
| Illumination unit | With polarizer,6V 20w, halogen lamp, adjustable brightness | |
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Wide field WF16X(Φ11mm) | 1051116 |
| Dividing 10X(Φ18mm) 0.1mm/Div | 1021010 | |
| Eyepieces tube | Monocular , 360rotatable, inclination of 30 | 010003 |
| Trinocular, ,inclination of 30,observe and photograph at the same time | 012001 | |
| Filter | Green filter | 115002 |
| Yellow filter | 115003 | |
| CCD adapter | 0.4X | 810001 |
| 0.5X | 810004 | |
| 1X | 810002 | |
| 0.5X with dividing 0.1mm/Div | 810003 | |
| Camera | DV-1 With USB & video output | 800001 |
| DV-2 With USB output | 800003 | |
| DV-3 With video output | 800005 | |
| Photo unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | 840001 |
| 4X Focusing photograph attachment | 840002 | |
| MD Adapter | 840003 | |
| PK Adapter | 840004 | |
| Digital camera adapter | CANON(A610,A620,A630,A640) | 820001 |
