Lab/Industrial Microscope

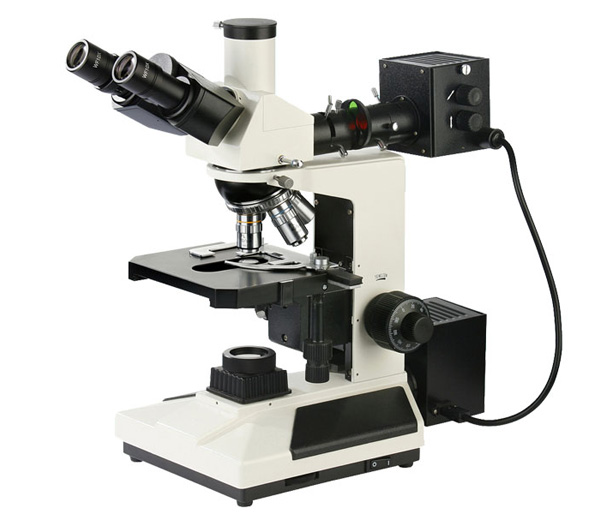

Reflected and Transmitted Metallurgical Microscope
L2020A
L2020 reflected and transmitted metallurgical microscope is equipped with reflected and transmitted illuminator system, plan achromatic objectives with long working distance (no cover glass), wide field eyepieces and set polarizer device in trinocular. They can obtain clean image in the wide visual field, can be broadly applied in mine, colleges and scientific research department to observe internal configuration of material.
Advantage
1) With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
2) Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
3) Utilize reflected &transmitted light mix illumination; you can descry the special effect in some object.
4) 6V 20W Halogen lamp, adjustable control.
5) Trinocular, can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular eyepieces or to the top port.
Specification
| Model | L2020A |
| Eyepiece | Wide field WF10X(Φ18mm) |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
| Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75 (Spring) | |
| Eyepieces tube | Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch) |
| Vertical illumination unit | 6V 20w, halogen lamp, adjustable control. |
| Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(R,B,G)filter and frosted filter | |
| Focus system | Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm. |
| Nosepiece | Quadruple(Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:160mmX140mm,movingrange:75mmX50mm) |
| Vertical illumination unit | Abbe condenser NA.1.25 Rack & pinion adjustable |
| (B,G)filter and Frosted filter | |
| Collector for halogen lamp | |
| 6V 20w halogen lamp, adjustable control. |
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Wide field WF16X(Φ11mm) | 1051016 |
| Dividing 10X(Φ18mm) 0.1mm/Div | 1121010 | |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70 | 2250150 |
| Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80 | 2250180 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | 2250111 | |
| Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil) | 2240111 | |
| Filter | Yellow filter | 115003 |
| CCD adapter | 0.4X | 810001 |
| 0.5X | 810004 | |
| 1X | 810002 | |
| 0.5X with dividing 0.1mm/Div | 810003 | |
| Camera | DV-1 With USB & video output | 800001 |
| DV-2 With USB output | 800003 | |
| DV-3 With video output | 800005 | |
| Photo unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | 840001 |
| 4X Focusing photograph attachment | 840002 | |
| MD Adapter | 840003 | |
| PK Adapter | 840004 | |
| Digital camera adapter | CANON(A610,A620,A630,A640) | 820001 |
