Lab/Industrial Microscope
Monocular Biological Microscope

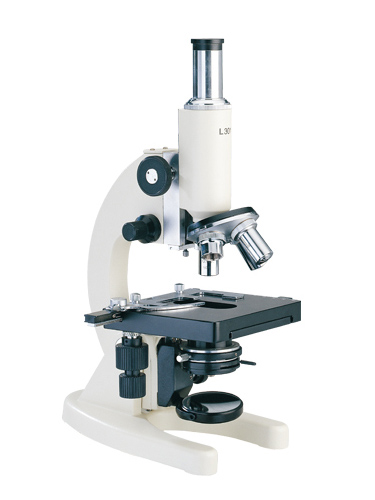

L301
L301 biological microscope is equipped with Huygens eyepieces and achromatic objectives, use monocular observe. It has clear image and wide visual field. It can be broadly applied in biology medicine, agriculture etc. It is the ideal instrument for treatment, teaching and scientific research.
Advantage
1) With Huygens eyepieces and achromatic objectives, the visual field of view is clear
2) Separate coarse/fine system focus, Minimum division of fine focusing: 3µm.
Specification
Model | L301 |
Eyepiece | Huygens 10X(Φ18mm) |
Huygens 15X(Φ11mm) | |
Objective | Achromatic 4X/0.10 |
Achromatic 10X/0.25 | |
Achromatic 40X/0.65(Spring) | |
Achromatic 100X/1.25(Spring, oil) | |
Eyepiece tube | Monocular observe, Straight and single eyepiece |
Focus system | Separate coarse/fine system focus, Minimum division of fine focusing: 3µm. |
Nosepiece | Quadruple(Frontward ball bearing outer locating) |
Stage | Double layer mechanical (Size:125mmX115mm, Move range: 70mmX30mm) |
Abbe Condenser | N.A.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Light source | Plano-concave reflecting mirror |
Optional accessories
Name | Sort/Technique parameter | NO. | |
Eyepiece | Huygens | 5X(Φ18mm) | 1010005 |
6X(Φ16mm) | 1010006 | ||
Filter | Green filter | 115002 | |
Yellow filter | 115003 |
