Lab/Industrial Microscope

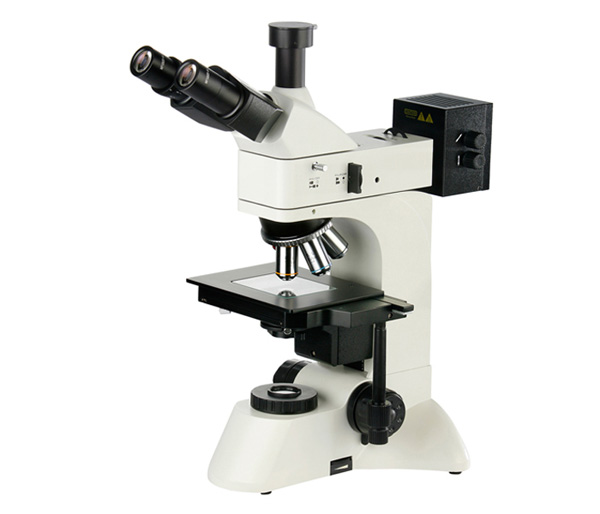

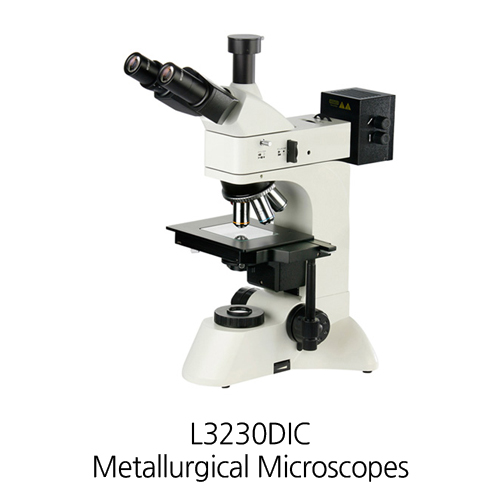

Differential Interference Contrast Microscope
L3230DIC
L3230DIC differential interference contrast microscope is suitable to observe many different kinds of object. It is equipped with transmitted illuminator and reflected DIC system, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizer device. It provides clear and 3D image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc.
Advantage
1) Excellent UIS optical system can obtain excellent optical performance.
2) Compact and steady main frame body is embodiment for the shock resistance.
3) Modularization function design so that update system expediently and achieved polarization,DIC observation.
4) Ideal ergonomic design is adopted in this unit and have easier operation and wider space.
Specification
| Model | L3230DIC |
| Eyepiece | Wide field WF10X(Φ22mm) |
| Objective | Infinity plan achromatic objectives with long working distance (no cover glass) |
| PL L5X/0.12 Work distance:26.1 mm | |
| PL L10X/0.25 Work distance:20.2 mm | |
| PL L20X/0.40 Work distance:8.8 mm | |
| PL L40X/0.60 (spring) Work distance:3.98 mm | |

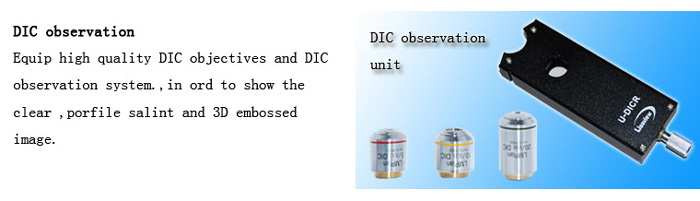

| DIC observation system | 10XDIC push-pull group |
| 20XDIC push-pull group | |
| Eyepieces tube | Trinocular, Inclination of 30˚ |
| Epi- illumination system | 12V 50W, halogen lamp, adjustable brightness |
| Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer. | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
| Nosepiece | Quintuple (Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm) |
| Transmitted illuminationsystem | Abbe condenser NA.1.25 Rack & pinion adjustable |
| Blue filter and Ground glass | |
| Collector for halogen lamp illumination and integrated field diaphragm | |
| 12V 30W halogen lamp, adjustable brightness |
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Dividing eyepiece(field number:Φ22mm) 0.10mm/Div | 1122010 |
| Objective | Infinity plan achromatic objectives with long working distance (no cover glass) | |
| PL L50X/0.70 (spring) Work distance:3.68mm | 2260150 | |
| PL L60X/0.75 (spring) Work distance:1.22 mm | 2260160 | |
| PL L80X/0.80 (spring) Work distance:1.25 mm | 2260180 | |
| PL L100X/0.85 (spring and dry) Work distance:0.40mm | 2260111 | |
| Nosepiece | Quintuple Backward ball bearing inner locating | 032001 |
| Filter | Green filter | 115002 |
| Yellow filter | 115003 | |
| CCD adapter | 0.5X | 810004 |
| 1X | 810002 | |
| 0.5X with dividing 0.1mm/Div | 810003 | |
| Camera | DV-1 Video output & USB output | |
| DV-130 / 300 / 500 / 900 with USB output | ||
| DV-3 With video output(380/520 TV line) | ||
| Digital camera adapter | CANON(EF) NIKON( F) | 820001 |
