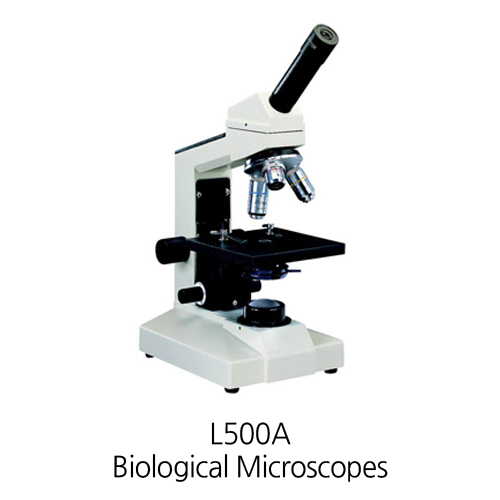

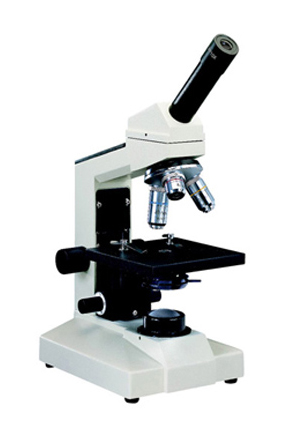

[L500A] Biological Microscope
₩301,400
설명
Lab/Industrial Microscope
Biological Microscope
L500A
L500 series biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clear image, wide field, convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medical treatment, teaching demonstration.
Features
1) With wide field eyepieces and achromatic objectives, the field of view is widely and clear
2) Separate coarse/fine system focus or coaxial coarse/fine focus system can be chosen, minimum division of fine focusing: 4μm
3) 220V/110V 20W incandescent lamp transmission illumination.
Standard configuration
| Model | L500A |
| Eyepiece | Wide field WF10X(Φ18mm) |
| Objective | Achromatic 4X/0.10 |
| Achromatic 10X/0.25 | |
| Achromatic 40X/0.65(Spring) | |
| Eyepiece tube | Monocular,360° rotatable (Inclination of 45°) |
| Focus system | Separate coarse/fine system focus. Minimum division of fine focusing: 4μm |
| Nosepiece | Triple(Frontward ball bearing outer locating) |
| Stage | Fixed(Size:120mmX120mm, With single lens and iris diaphragm) |
| Filter | Blue filter |
| Frosted filter | |
| Collector | For incandescent lamp |
| Light source | 220V/110V 20W, Incandescent lamp |
Optional accessories
| Name | Sort/Technique parameter | NO. | |
| Eyepiece | Wide field WF16X(Φ11mm) | 1051016 | |
| Point 10X(Φ18mm) | 1043010 | ||
| Objective | Achromatic 100X/1.25(Spring, oil) | 2010111 | |
| Nosepiece | Quadruple(Frontward ball bearing outer locating) | 031002 | |
| Filter | Green filter | 115002 | |
| Yellow filter | 115003 | ||
| Light source | Fluorescent lamp | 5W,110V/220V Can be choose | 071001 |
| LED Illumination | High brightness white | 073001 | |
| Reflecting mirror | Plane-concave reflecting mirror with stand | 074001 | |
| Camera | Photography | USB Output | 1096001 |
| VIDEO Output | 1108001 | ||
| Adapter(For LED illumination) | Input: 230V~50/60HZ Output: 9V 500mA | 101001 | |
| Input: 110V~50/60HZ Output: 9V 500mA | 101002 | ||
