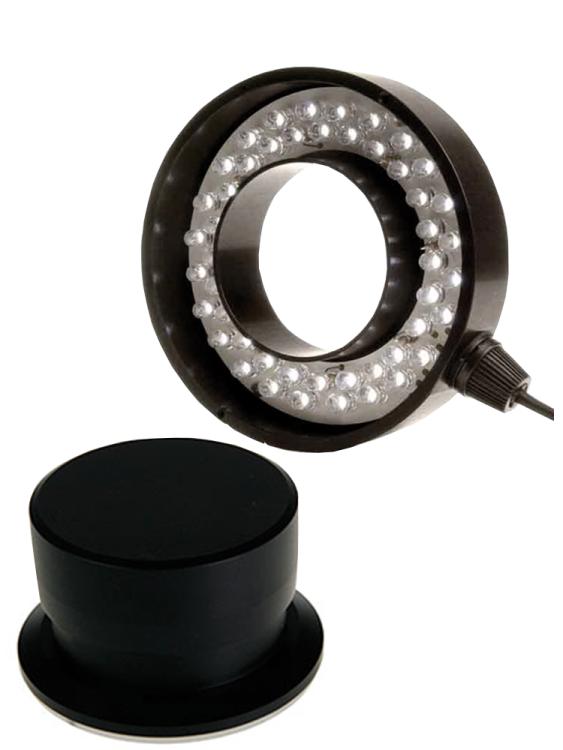

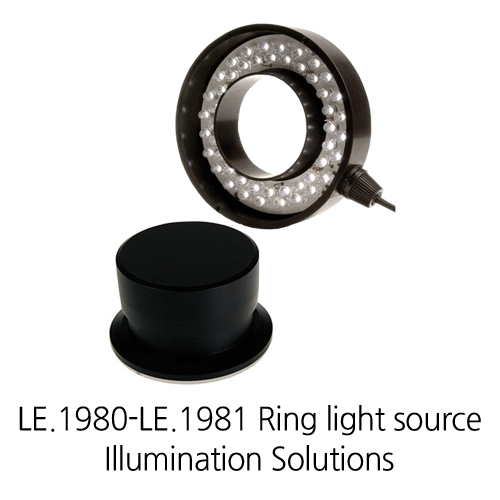

High PowerLED ring light source Illuminations LEDs have gained acceptance in both quality control applications and in production. Light emitting diodes have the advantage of being a cold light source with a constant spectral output over very long life times. Maximum illuminance and metal contruction for professional usage

Ring light source illumination
Professional high PowerLED

With adjustable intensity, optional power supply/ segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of objects

TECHNICAL SPECIFICATIONS
LED ring light source with maximum illuminance and metal contruction for professional usage. With adjustable intensity, optional power supply/ segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of objects

RING ILLUMINATION
48 LEDs with adjustable intensity

COLOR TEMPERATURE
6.000 K

ILLUMINANCE
17.000 Lux at 100 mm distance

FOR MOUNTING DIAMETERS
30-66 mm

INTERNAL DIAMETER
45 mm

EXTERNAL DIAMETER
90 mm

OUTPUT CONNECTOR
Analog controller  (LE.1980) / Digital segments controller for 8, 4 or 1 segment (LE.1981)

INTENSITY
Adjustable from 0-100 %

REQUIRED POWER SUPPLY
LE.1992 (for LE.1980) / LE.1993 (for LE.1981)

Accessories

LE.1992
0-100% adjustable analog controller with mains adapter 230 V for LE.1980 and LE.1990

LE.1993
Adjustable digital segment controller with mains adapter 230 V for LE.1981 and LE.1991

LE.1984-050
Fresnel lens working distance 40-80mm for LE.1980/LE.1981

LE.1984-100
Fresnel lens working distance 80-150mm for LE.1980/LE.1981

LE.1984-200
Fresnel lens working distance 150-240mm for LE.1980/LE.1981

LE.1984
Diffuser for LE.1980 / LE.1981

LE.1985
Protection glass for LE.1980 / LE.1981

LE.1988
Rotatable polarizer for LE.1980 / LE.1981
