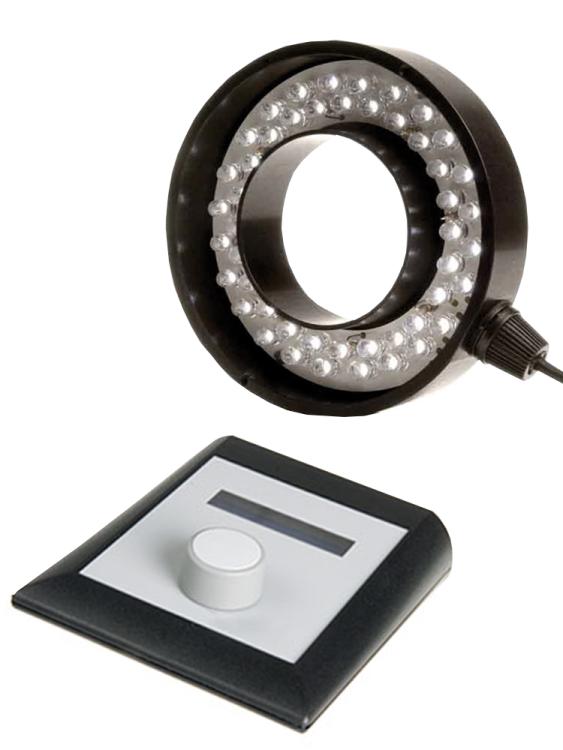

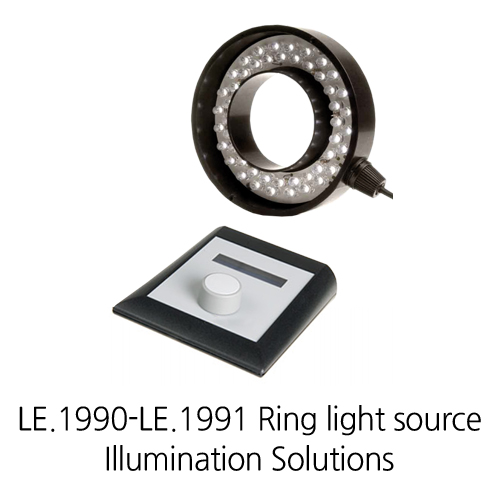

[LE.1990-LE.1991] LIFE SCIENCE Ring light source

₩1,950,300

  • 클리어

Quantity:

설명

Illumination Solutions LIFE SCIENCE

Ring light source

LE.1990-LE.1991

High PowerLED Ring light source Illuminations LEDs have gained acceptance in both quality control applications and in production. Light emitting diodes have the advantage of being a cold light source with a constant spectral output over very long life times. Maximum illuminance and metal contruction for professional usage

Ring light source illumination
Professional high PowerLED

With adjustable intensity, optional power supply/ segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of objects

Highlights

  • Professional high PowerLED ring light source
  • Metal contruction
  • 72 LEDs with adjustable intensity
  • Analog or digital controller
  • Illuminance 21.000 Lux at 100 mm
  • Various accessories

Models

Specifications

TECHNICAL SPECIFICATIONS
LED ring light source with maximum illuminance and metal contruction for professional usage. With adjustable intensity, optional power supply/ segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of objects

RING ILLUMINATION
72 LEDs with adjustable intensity

COLOR TEMPERATURE
6.000 K

ILLUMINANCE
21.000 Lux at 100 mm distance

FOR MOUNTING DIAMETERS
40-66 mm

INTERNAL DIAMETER
60 mm

EXTERNAL DIAMETER
110 mm

OUTPUT CONNECTOR
Analog controller (for LE.1990) / Digital segments controller for 8, 4 or 1 segment ( for LE.1991)

INTENSITY
Adjustable from 0-100 %

REQUIRED POWER SUPPLY
LE.1992 (for LE.1990) / LE.1993 (for LE.1991)

Accessories
LE.1992
0-100% adjustable analog controller with mains adapter 230 V for LE.1980 and LE.1990
LE.1993
Adjustable digital segment controller with mains adapter 230 V for LE.1981 and LE.1991
LE.1994
Diffuser for LE.1990 / LE.1991
LE.1994-050
Fresnel lens working distance 45-80mm for LE.1990 / LE.1991
LE.1994-100
Fresnel lens working distance 80-150mm for LE.1990 / LE.1991
LE.1994-200
Fresnel lens working distance 150-230mm for LE.1990 / LE.1991
LE.1995
Protection glass for LE.1990 / LE.1991
LE.1997
Polarizer for LE.1990 / LE.1991
LE.1998
Polarizer with turnable analyzer for LE.1990 / LE.1991
