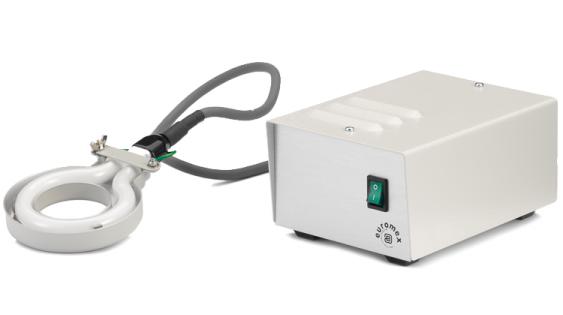

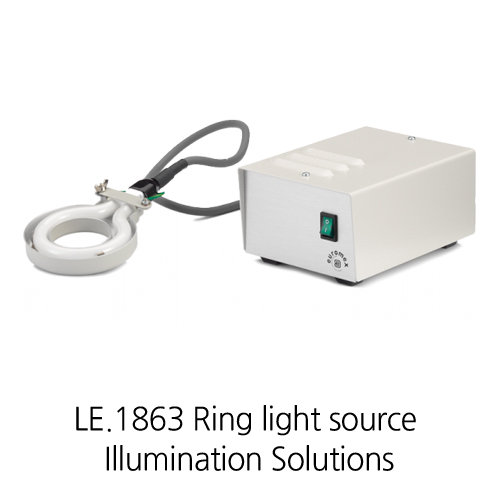

[LE.1863] EDUCATION Ring light source (fluorescent light)
₩952,600
설명
Illumination Solutions EDUCATION
Ring light source (fluorescent light)
LE.1863
A fluorescent lamp is filled with mercury vapor with the inner surface coated with a fluorescent coating. This coating will emit visible light when short wave UV light – generated by the gas-discharge exited mercury atoms – hit the coating. The fluorescent lamp produces more light than an incandescent lamp. Also heat production is much lower
Ring light source illumination at 40 Hz
Highlights
- Fluorescent ring light source
- For Z serie zoom objective
- Integrated 240 Vac power supply
- Lower heat production
Models
Specifications
TECHNICAL SPECIFICATIONS
A fluorescent lamp is filled with mercury vapor and a noble gas and the inner surface is coated with a fluorescent coating. This coating will emit visible light when short wave UV light – generated by the gas-discharge exited mercury atoms – hit the coating. The fluorescent lamp produces more light than an incandescent lamp. Also heat production is much lower. Integrated 240 V AC power supply
Suitable for Z series stereo zoom objectives, except for ZE.1659
RING ILLUMINATION
Fluorescent 40 kHz, fixed intensity
COLOR TEMPERATURE
5.200 K Illuminance 6.500 Lux at 100 mm distance
WORKING DISTANCE
35-160 mm
MOUNTING
48 mm with adapter (for Z series microscopes)
POWER SUPPLY
230-250 Vac
EXTERNAL DIAMETER
100 mm
