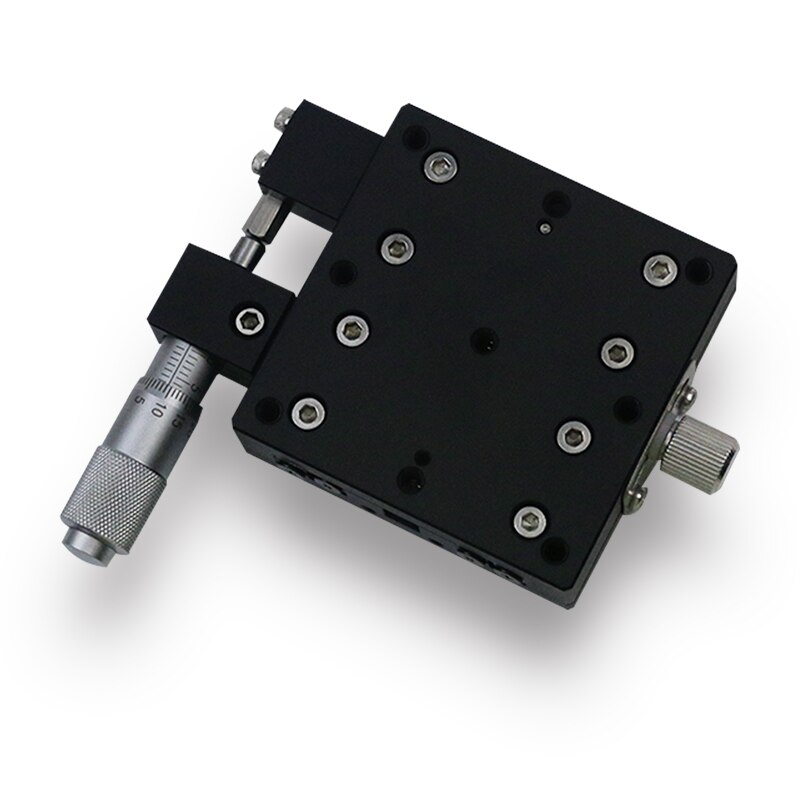

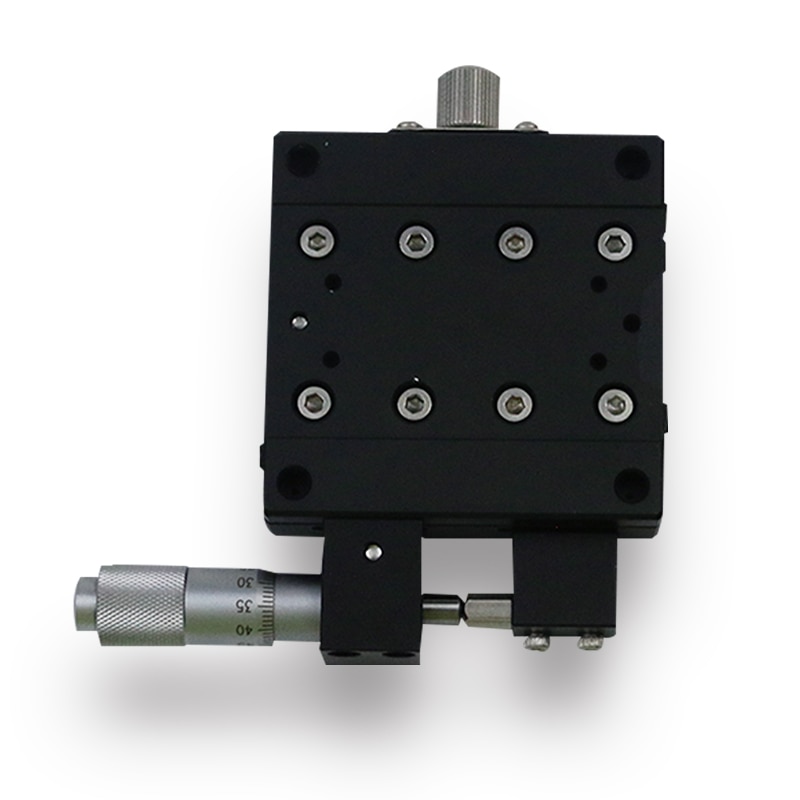

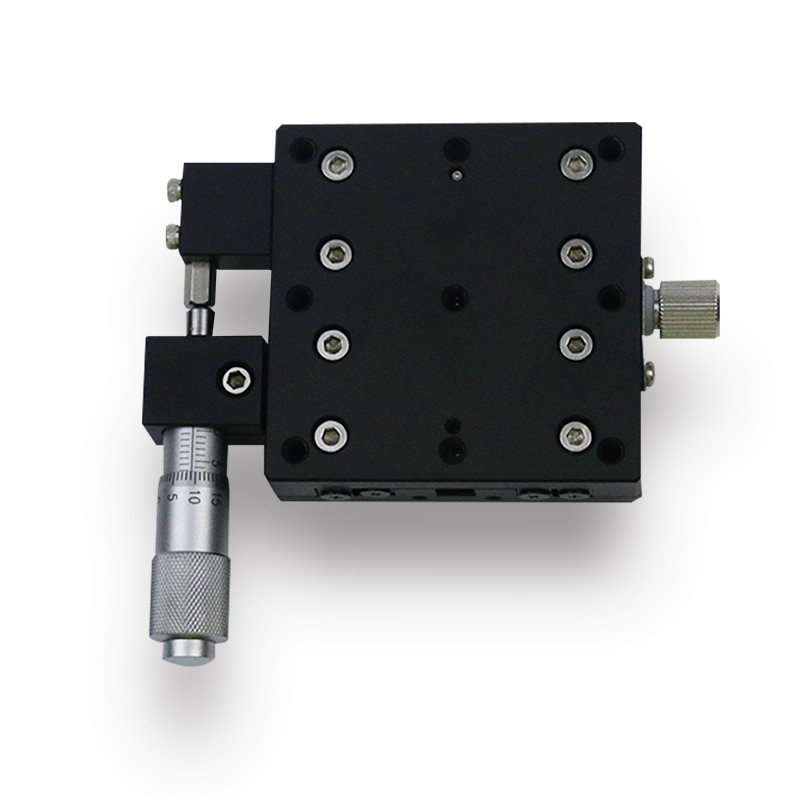

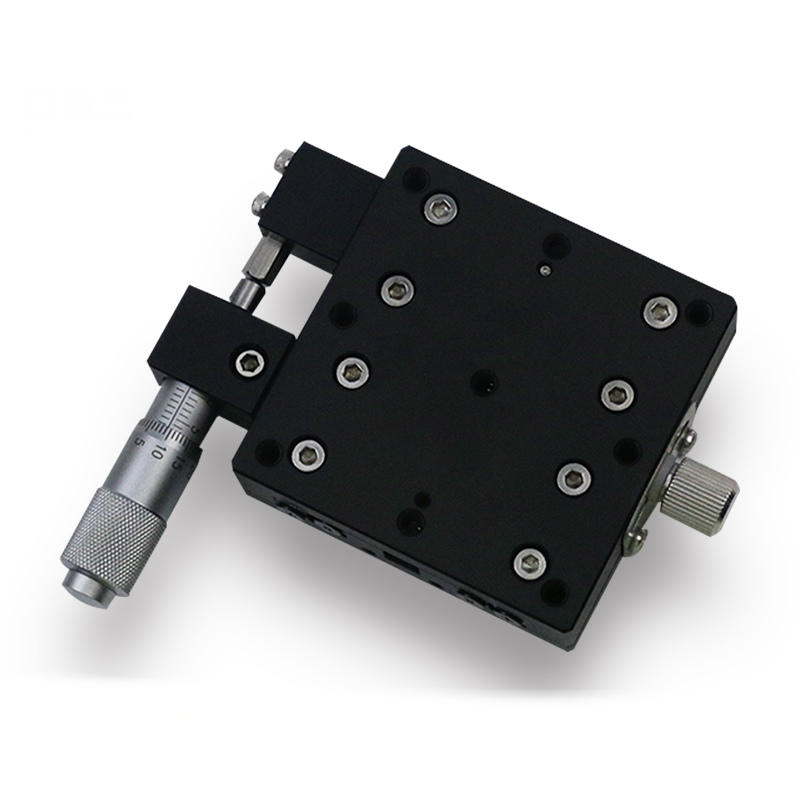

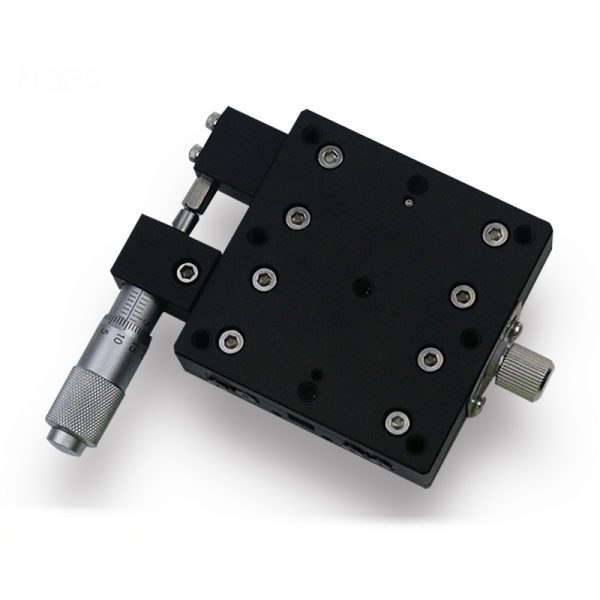

LX60-L micrometer manual fine adjustment platform, optical translation stage X-axis 60*60mm precision displacement slide table (LX60-L)
설명

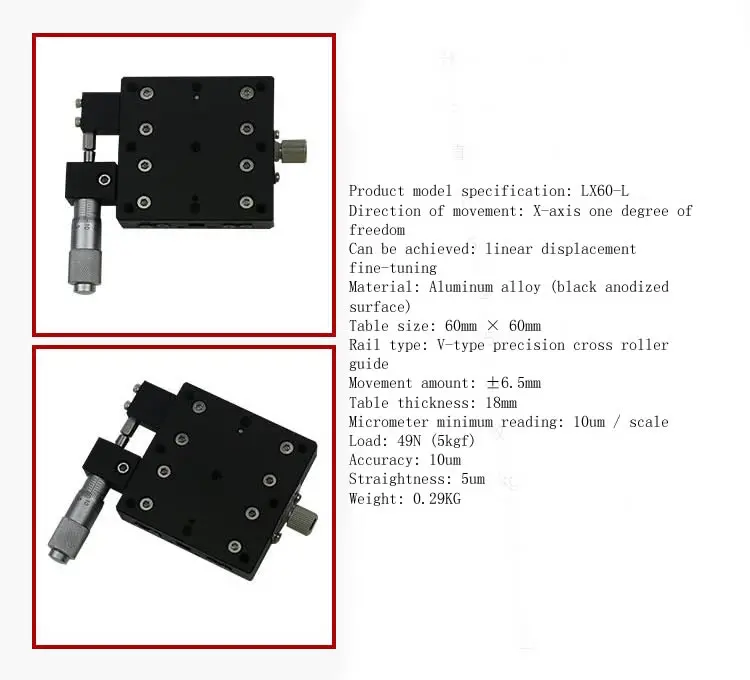

Product model specification: LX60-L
Direction of movement: X-axis one degree of freedom
Can be achieved: linear displacement fine-tuning
Material: Aluminum alloy (black anodized surface)

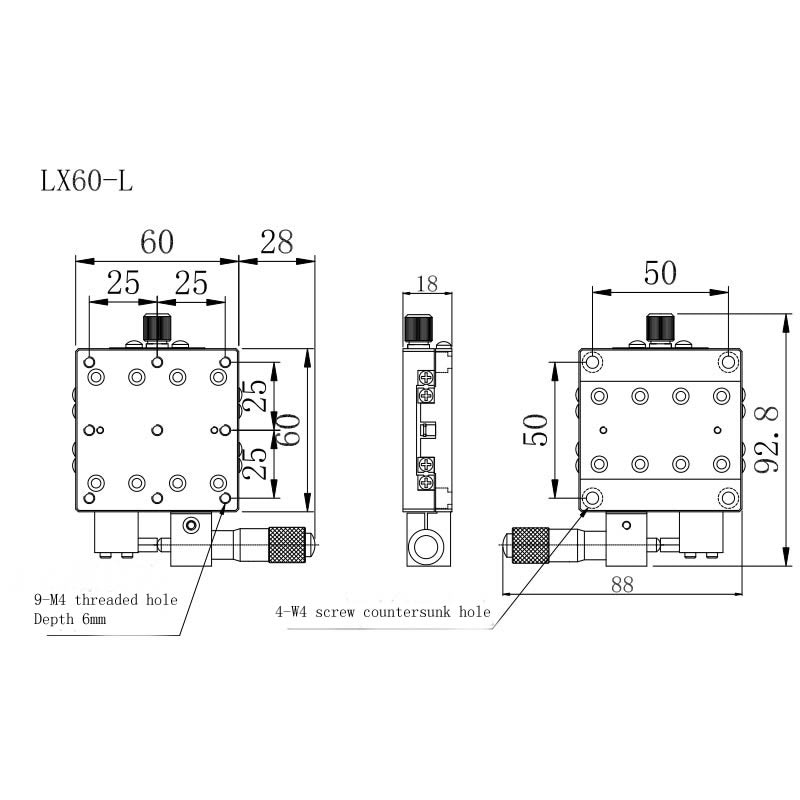

Table size: 60mm × 60mm
Rail type: V-type precision cross roller guide
Movement amount: ±6.5mm
Table thickness: 18mm
Micrometer minimum reading: 10um / scale
Load: 49N (5kgf)
Accuracy: 10um
Straightness: 5um
Weight: 0.29KG
추가 정보
| 무게 | 0.45 kg |
|---|---|
| 크기 | 150.0 × 150.0 × 150.0 mm |
| Color | LX60-L |
| Brand Name | None |
| Type | Power Tool Parts |
| Usage | Commercial Manufacture |
| is_customized | Yes |
| Material | Aluminium-copper Alloy |
| Model Number | LX60-L |
