[LYL-III] Slip Lamp Microscope
설명
Medical Microscope
Slip Lamp Microscope
LYL-III
The slit lamp microscope is a corneal microscope with a special attachment that permits examination of the endothelium on the posterior surface of the cornea.

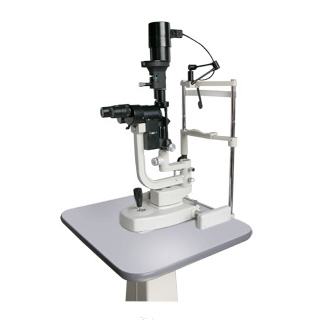

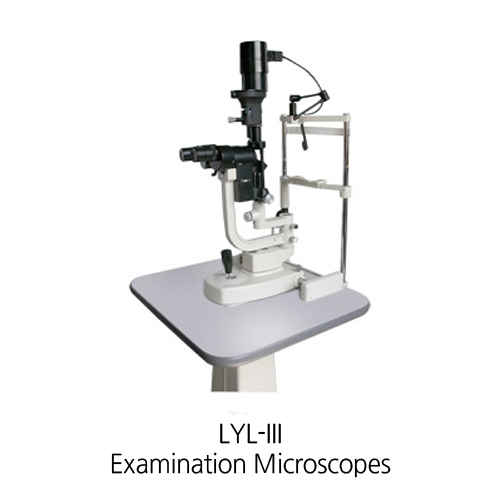

LYL-III Slip Lamp Microscope
Advantag
– Excellent optical system, easy operation;
– Main optical lens were made of imported material, to assure high clearance and brightness;
– All lens has anti-reflecting, moisture-proof, and mildew-proof coating to assure perfect optical quality under long time use.
Specification
| Parts Name | Parameters |
LYL-III
|
| Total Magnification | 16X(use WF10X eyepieces), 25.6X(use WF16X eyepieces) |
●
|
| Objective Magnification | 1X、1.6X |
●
|
| Work Distance | 95mm |
●
|
| Type of the Microscope | Converging Stereoscope, Interpupillary distance 55-75mm |
●
|
| Eyepieces WF10X | Widefield eyepieces WF10X, field number φ18mm |
●
|
| Eyepieces WF16X | Widefield eyepieces WF16X, field number φ11mm |
optional
|
| Slit Width | 0-9mm, Continuously adjustable |
●
|
| Slit Height | 1-8mm, Continuously adjustable |
●
|
| Slit Angle | 0-180°,Continuously circumrotate |
●
|
| Slit Inclination Angle | 5°、10°、15°、20°four steps |
●
|
| Slit Horizontal Revolving Angle | Angle of left and right revolving 75° |
●
|
| Light Spot Diameter | φ0.2，φ1，φ2，φ3，φ5，φ8，φ9 Continuously adjustable |
●
|
| Filter | Heat absorption, Grey, Redfree, Cobalt blue |
●
|
| Illumination Bulb | 12V/30W, Halogen bulb |
●
|
| Input Voltage | AC 220V/50HZ（or AC 110V/60HZ） |
●
|
| Watch Bulb | Wine LED |
●
|
| Range of Rise or Drop of Slipway | 0-30mm |
●
|
| Move Range of Slipway | Left and right:100mm, Front and back:90mm |
●
|
| Fluctuate Move Range of Jaw Part | 80mm |
●
|
| Hruby lens | -58.7D |
optional
|
