[LYL-USB] Portable Slit Lamp Microscope W/ USB Output Signal
설명
Medical Microscope
Portable Slit Lamp Microscope W/
USB Output Signal
LYL-USB
The slit lamp microscope is a corneal microscope with a special attachment that permits examination of the endothelium on the posterior surface of the cornea.

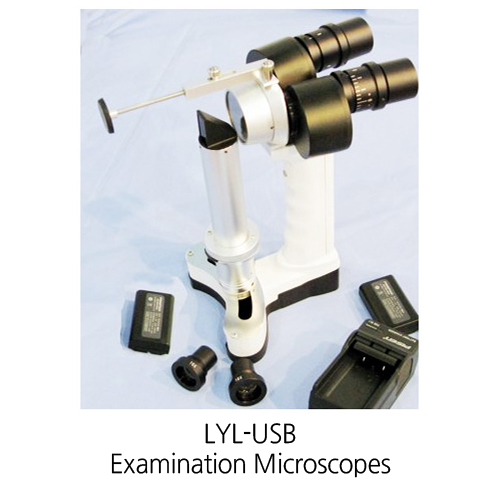

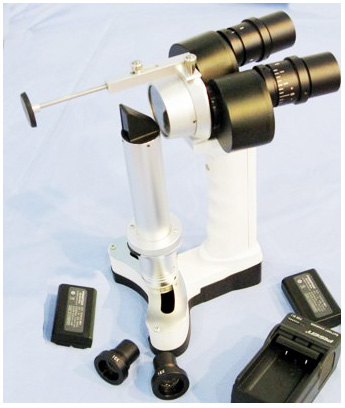

LYL-USB Portable Slit Lamp Microscope
Advantag
– Excellent optical system, easy operation;
– Main optical lens were made of imported material, to assure high clearance and brightness;
– All lens has anti-reflecting, moisture-proof, and mildew-proof coating to assure perfect optical quality under long time use;
– With USB output signal;
– Portable type, sasy to carry.
Specification
| Parts Name | Parameters |
| Total Magnification | 10X or 16X |
| Objective Magnification | 1.0X |
| Eyepieces | WF10x or WF16x |
| Working distance | 86.5mm |
| Slit Width | 0～9mm Continuously Adjustable |
| Slit Height | 1mm, 3mm, 5mm, 10mm |
| Slit horizontal Revolving Angle | Angle of Left and Right Revolving 30° |
| Light Spot Diameter | Φ1, Φ3, Φ5, Φ10 |
| Filter | Heat Absorption, Grey, Redfree, Cobalt blue |
| Illumination Bulb | White LED 3.0-3.6V/3W 120mAh |
| High Capacity Lithium Battery | 7.4V 680mAh |
