[MC-1080] Video Checking Instrument Microscope

430,800

Quantity:

설명

Lab/Industrial Microscope

Video Checking Instrument Microscope

MC-1080

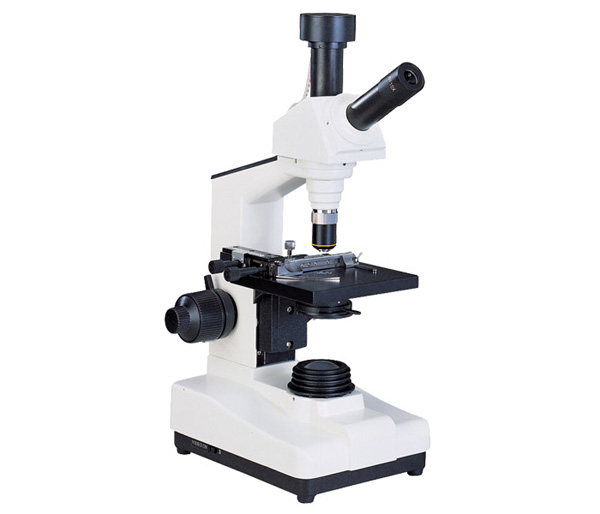

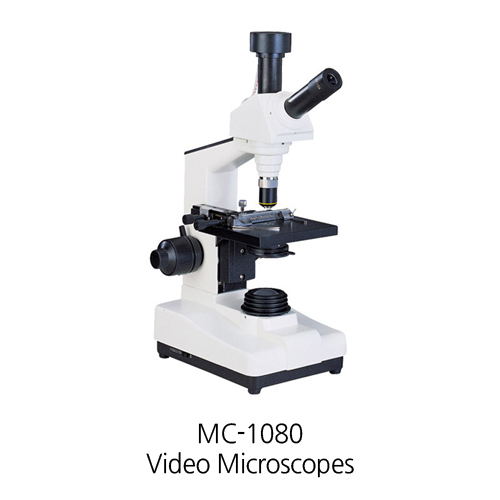

MC-1080 Video Checking Instrument Microscope is equipped with achromatic and wide field eyepiece, built-in color CMOS sensor, can obtain clear image through optical system and video camera system. The new-style LED collector has lower power and longevity. It is mainly applied to observe and display dry blood cell and acarus. It is the ideal instrument for life field, such as health care, beauty culture etc.

Advantage

1) With wide field eyepieces and achromatic objectives, the field of view is widely and clear
2) Built-in color CMOS sensor and video output
3) Coaxial coarse/fine focus system, minimum division of fine focusing: 2μm
4) High brightness white LED lamp with brightness control

Specification

Model MC-1080
Eyepiece Wide field   WF10X (Φ18mm)
Objective Achromatic objectives 10X/0.25
Video monocular Built-in clear color 1/3”CMOS sensor, horizontal resolution: 380TV lines, White Balance: Automatic, Color.
Video cable Standard Video cable, length:1.8m
Stage Fixed stage with slide moving holder moving range:70mmX30mm
Focus mechanism Coaxial coarse/fine focus minimum division of fine focusing: 4μm
Light source LED base without rechargeable batteries, input: 220V/110V (optional)

Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Wide field    WF16X (Φ11mm) 1051016
Objective Achromatic objectives  4X/0.10 2010204
Achromatic objectives  20X/0.40 2010120
Achromatic objectives  40X/0.65 2010140
Nosepiece Triple (Frontward ball bearing outer locating) 030001
