Lab/Industrial Microscope
Digital Biological Microscope W/ USB Output

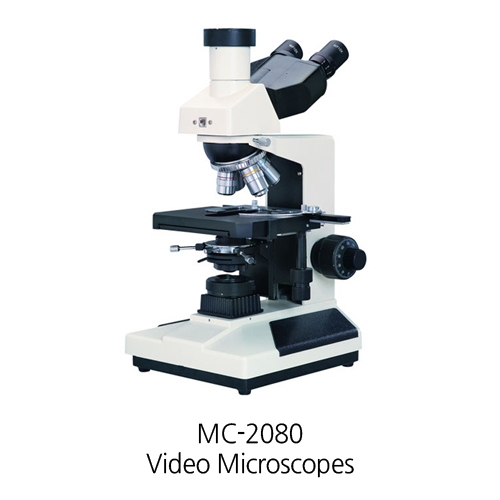

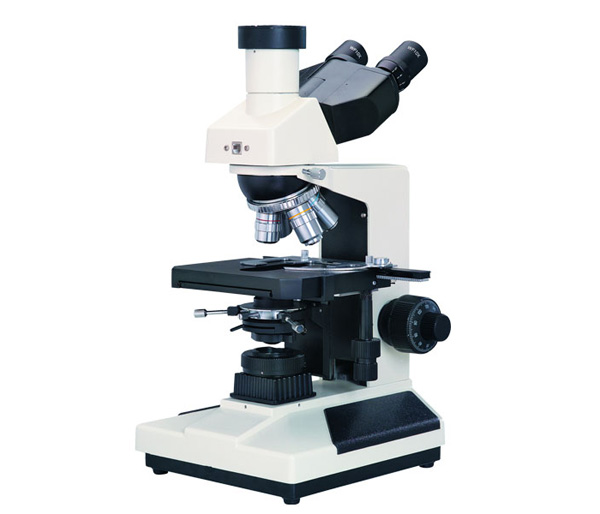

MC-2080
MC-2080 digital biological microscopes are equipped with plan achromatic objectives and wide field eyepieces and digital trinocular. It provide clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and industry area widely. It is the ideal instruments in medical treatment, teaching demonstration and scientific research.
Advantage
1) With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
2) Built-in color CMOS sensor and USB output
3) Coaxial coarse/fine focus system, with adjustable tensional control and adjustable up stop, minimum division of fine focusing: 2μm
4) Using Kohler illumination model, the illumination is 6V 20W halogen lamp with brightness control
Specification
Model | MC-2080 |
Eyepiece | WF10X(Φ20mm) |
Objective | Plan achromatic PL 4X/0.10 |
Plan achromatic PL 10X/0.25 | |
Plan achromatic PL 40X/0.65(Spring) | |
Plan achromatic PL 100X/1.25(Spring, oil) | |
Digital trinocular | Built-in clear color 1/2” CMOS sensor , the dynamic resolution is 1280X1024(UXGA) , USB2.0 White balance: Automatic/Manual. System requirement:Windows 2000@SP4 / Windows XP@ SP2/ Windows Vista |
Focus system | Coaxial coarse/fine focus system, the adjustable tensional control and adjustable up stop, minimum division of fine focusing: 2μm |
Nosepiece | Quadruple(Backward ball bearing inner locating) |
Stage | Double layer mechanical ( Size:160mmX140mm, Move range: 75mmX50mm) |
Abbe condenser | N.A.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Collector | With field diagram for halogen lamp |
Light source | 6V 20W Halogen lamp with brightness control |
Optional accessories
Name | Sort/Technique parameter | NO. |
Eyepiece | Wide field WF16X(Φ11mm) | 1051016 |
Dividing 10X(Φ20mm) 0.1mm/Div | 1121010 | |
Filter | Green filter | 115002 |
Yellow filter | 115003 | |
Digital trinocular | Built-in clear color 1/2” CMOS sensor , the dynamic resolution is 1280X1024 (UXGA).USB2.0 White balance: Automatic/Manual.System requirement:Windows 2000 @SP4 / Windows XP@SP2 | 014006 |
