[MC-980] Nail Fold Microcirculation Checking Instrument

486,200

Quantity:

설명

Lab/Industrial Microscope

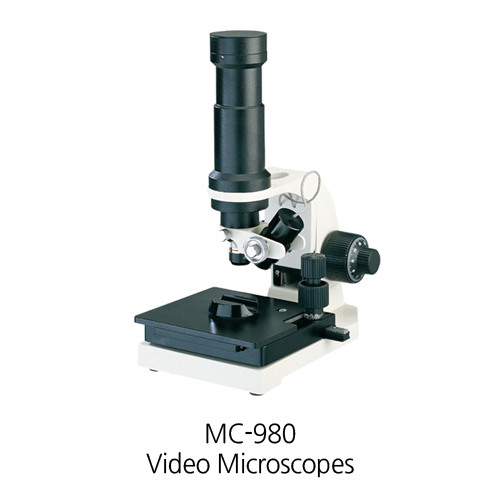

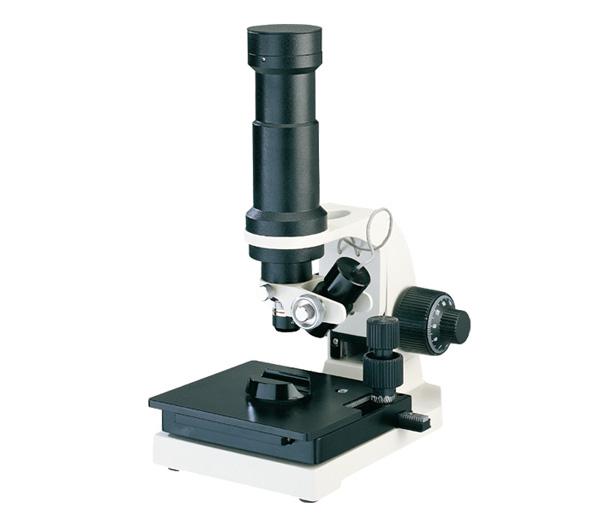

Nail Fold Microcirculation Checking Instrument

MC-980





MC-980 Nail Fold Microcirculation Checking Instrument is a new type of optical & electronic instrument, equipped with achromatic objective, new type LED illumination, high definition color sensor. It is mainly applied to nail fold microcirculation checking, no any hurt and side-effect in the checking process. It is the ideal instrument for disease forepart diagnosis, health care etc.

Advantage

1) Illumination using high light white LED, lower power and longer using life, over 10000 hours.
2) The angle and brightness of illumination can be adjusted.
3) 360°rotatable round stage and X-Y axis mobile mechanical stage for convenient and comfortable operation
4) Built-in color CMOS sensor

Specification

Model MC-980
Objective Achromatic   4X/0.10
Color sensor 1/3″CMOS  Horizontal resolution: 380 TV lines .White balance: Automatic.  Video output: 1Vp-p/ 75Ω.NTSC/PAL (Optional)
Power adapter Input:220V /110V(Optional)  output:9V
Movable stage Mechanism moving stage(size: 130mmX118mm Moving size: 64mmX28mm)
Video cable Standard Video cable, length:1.8m
LED illumination High light LED, brightness and illuminate’s angle adjustive

Optional accessories

Name Sort/Technique parameter NO.
Objective Plan achromatic   PL 5X/0.12 2040105
