설명
Lab/Industrial Microscope

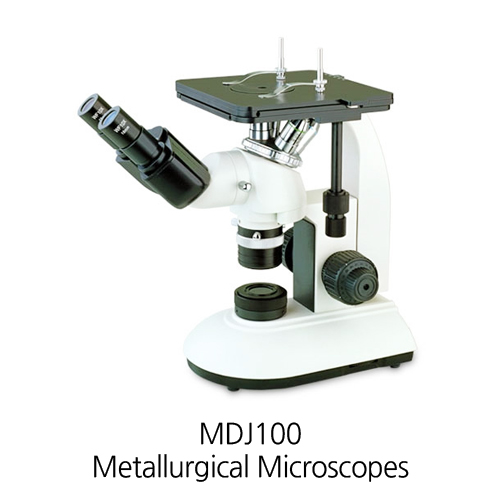

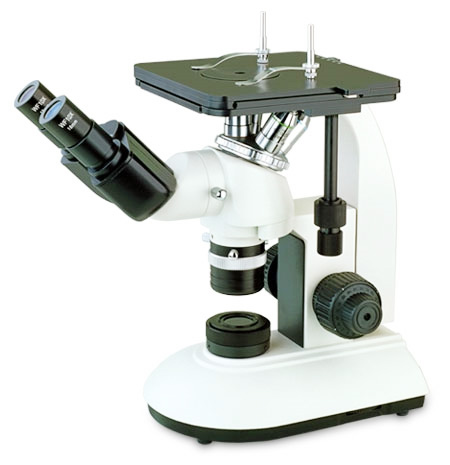

Monocular Inverted Metallurgical Microscope
MDJ100
Metallurgical microscope is widely used for metallurgical, mineral identification and crystal, integrated circuit examination and research. It is available to be supplied with transmitted illumination, imaging and viewing system and accessories as a biological microscope for medical institute use.
MDJ Series Metallurgical Microscope Outfits
| Items | Specification | MDJ100 | MDJ200 |
| Eyepieces | WF10×/Φ18 | S | S |
| WF10×/Φ20 | O | O | |
| WF12.5×/Φ14 | O | O | |
| WF16×/Φ13 | O | O | |
| Huygenian Ocular 5×/Φ20 | O | O | |
| WF10×/Φ18 ( Reticule, 0.1mm ) | O | O | |
| Plan Achromatic Objectives | Plan 2.5×/0.07 | O | O |
| Plan 4×/0.10 | O | O | |
| Plan 10×/0.25 | S | S | |
| Plan 20×/0.35(S) | O | O | |
| Plan 40×/0.65(S) | S | S | |
| Plan 100×/1.25(S)(Oil) | S | S | |
| Binocular Head | Inclined 45° | S | |
| Monocular Head | Inclined 45° | S | |
| Mechanical Stage | Travel Range: 50mm×40mm Size: 180mm×180mm |
S | S |
| Stage Plate | 1（Φ10） | S | S |
| 2（Φ20） | S | S | |
| 3（Φ40） | O | O | |
| Set of Stage Plate | S | S | |
| Main Body | S | S | |
| Illuminator | 6V/20W Halogen Lamp Spare Lamp: 2 pcs Spare Fuse: 2 pcs |
S | S |
| Filters | Blue, Green, Grey | S | S |
| Micrometer | Division 0.01mm | O | O |
Note: “S”In Table Is Standard Attachment. “O” Is Optional Accessories.
Packing Size: 437mm×268mm×522mm
Gross Weight: 9 kgs Net Weight: 7 kgs
