Education Upright Microscopes

교육용 정립 현미경

MicroBlue

Microscopes for education need to be easy-to use and student-friendly, which means able to withstand extensive use and rough handling. High quality, yet affordably priced Euromex microscopes specifically match these demands due to the well-thought construction and usage of top-class materials

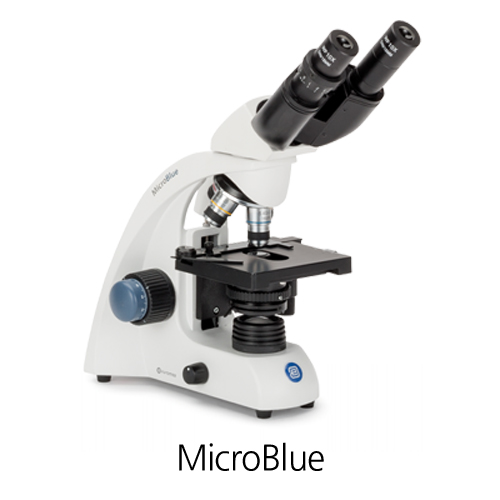

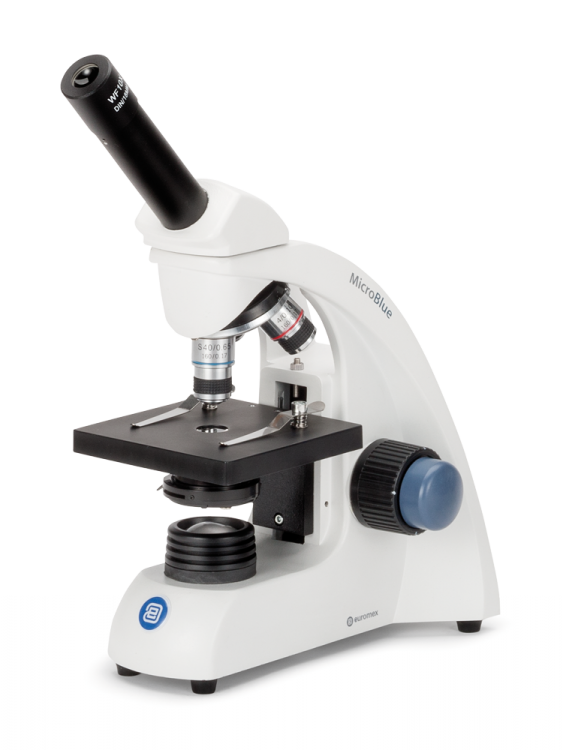

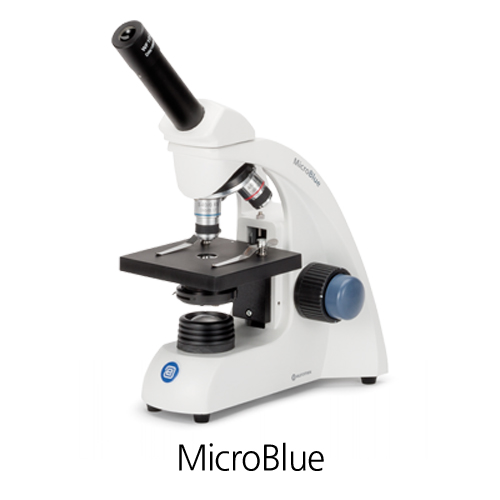

The modern MicroBlue is an entry-level microscope and is especially appreciated when budget is limited. The basic model comes with a fixed lens condenser and a plain stage.All models with an integrated mechanical stage are supplied with an Abbe condenser. All models are equipped with 35 mm achromatic objectives. The built-in rechargeable batteries enable cordless operation

Highlights

• Entry-level upright microscopes
• Monocular and binocular models
• Revolving reversed nosepiece
• Integrated X-Y mechanical stage
• LED and NeoLED illumination
• Cordless operation
• Ergonomic carrying grip

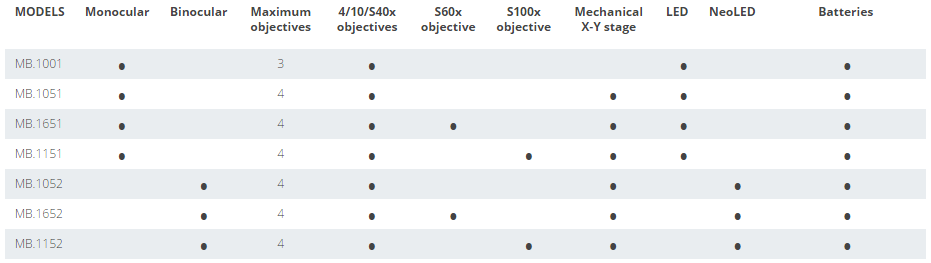

Models

Specifications

EYEPIECE(S)
Wide field WF 10x/18 mm secured eyepiece with pointer. The eyepieces of the binocular models are supplied without pointer

HEAD
Monocular models with 45° inclined tubes. Binocular models have 45° inclined tubes, adjustable interpupillary distance between 48 and 75 mm and a ± 5 diopter adjustment on left tube. All heads are 360° rotatable

NOSEPIECE
Revolving nosepiece for 3 or 4 reversed objectives on ball bearings

OBJECTIVES
Achromatic 4x/0.10, 10x/0.25 and S40x/0.65. Models with S60X or S100x oil immersion are also available. The S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 15 µm per graduation, 3 mm per rotation, total travel approximately 15 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives.

The coarse adjustment are equipped with friction control

STAGE
All models are supplied with 115 x 100 mm stage with integrated 55 x 20 mm X-Y mechanical stage, except for the basic model MB.1001 which is supplied with a 105 x 105 mm stage and two non-removable clamps.

CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder, except for the MB.1001 model that is equipped with a single lens N.A. 0.65 condenser with built-in iris diaphragm
