Lab/Industrial Microscope

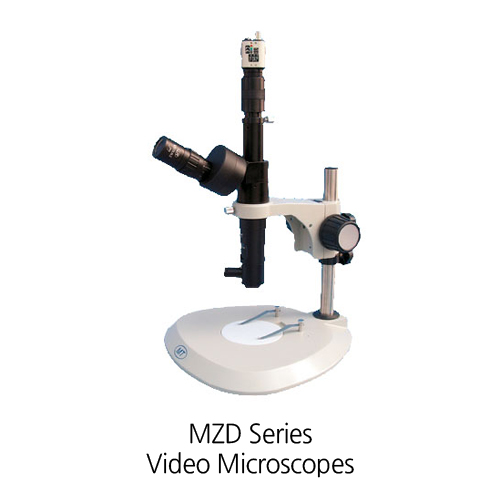

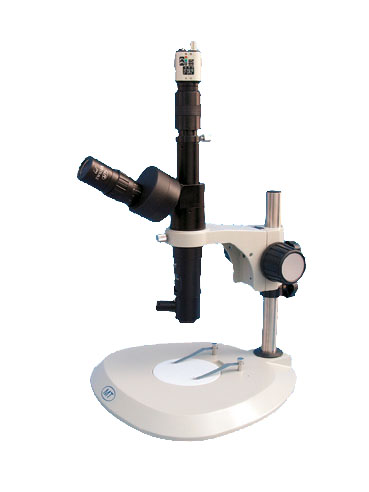

Zoom Monocular Video Microscope System
MZD Series
1) Good optical design,beautiful appearance,it gives the best reproduction and true color image
2) Large depth and wide of visual fields,long working distances,true vertical beam path
3) Large zoom range for various sample size
4) Even illumination over the whole field by the shadowless coaxial illuminator
5) Rich detail for T.V. display,photograghy,computer image capturing and etc
MZD series main technical data for the moncular video zoom microscope systems | ||||
Contents\Model | MZD0318 MZD0318L |
MZD0745 MZD0745L MZD0745C |
MZD16100 MZD16100L MZD16100C |
|
Main body | Zoom objective magnification | 0.3x-1.8x | 0.7x-4.5x | 1.6x-10x |
Main body length(mm) | 150 | 169 | 205 | |
Working distance (mm) | 115 | 115 | 35 | |
Total magnification (with 1/3″CCD、14″ monitor) |
17.8x-106.6x | 41.5x-266.4x | 94.7x-592x | |
Diameter of visual field(mm) (with 1/3″CCD、14″ monitor) |
20-3.3 | 8.6-1.3 | 3.8-0.6 | |
Total magnification=Objective magnification x Digital magnification (CCD) Diameter of visual field=Diagonal size of CCD camera pickup device/Objective magnification Diagonal size of CCD camera pickup device:1/3″:6mm 1/2″:8mm 2/3″:11mm 14″ monitor digital magnification:1/3″CCD:14×25.4/6=59.2 1/2″CCD:14×25.4/8=44.5 2/3″CCD:14×25.4/11=32.3 |
