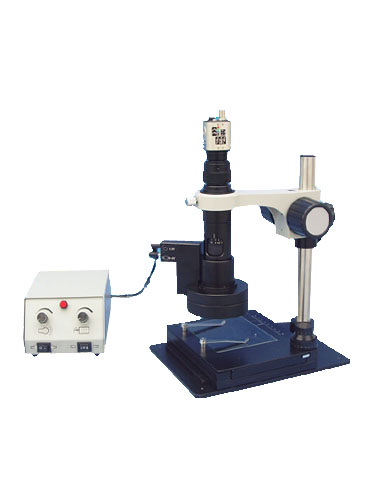

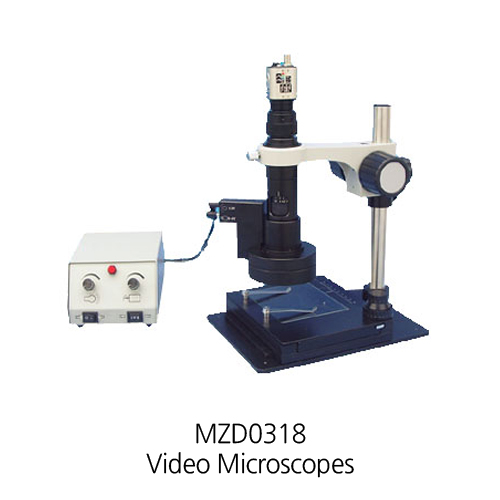

[MZD0318] Three-Dimensional Rotated Zoom Video Microscope System
₩929,700
설명
Lab/Industrial Microscope
Three-Dimensional Rotated Zoom Video Microscope System
MZD0318
| MZD series main technical data for the moncular video zoom microscope systems | ||
| Contents\Model | MZD0318 MZD0318L |
|
| Main body | Zoom objective magnification | 0.3x-1.8x |
| Main body length（mm） | 150 | |
| Working distance （mm） | 115 | |
| Total magnification (with 1/3″CCD、14″ monitor) |
17.8x-106.6x | |
| Diameter of visual field（mm） （with 1/3″CCD、14″ monitor） |
20-3.3 | |
| Total magnification=Objective magnification x Digital magnification （CCD） Diameter of visual field=Diagonal size of CCD camera pickup device/Objective magnification Diagonal size of CCD camera pickup device:1/3″:6mm 1/2″:8mm 2/3″:11mm 14″ monitor digital magnification：1/3″CCD:14×25.4/6=59.2 1/2″CCD:14×25.4/8=44.5 2/3″CCD:14×25.4/11=32.3 |
||
