Lab/Industrial Microscope

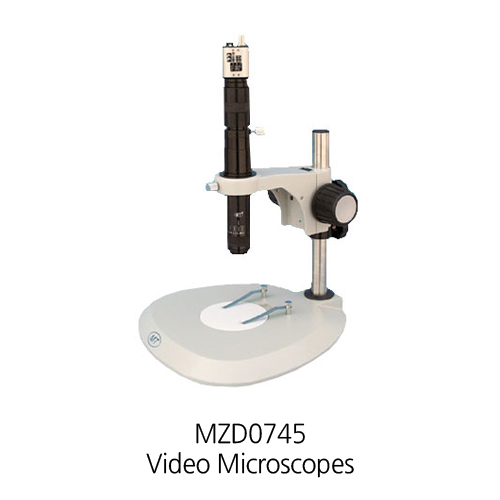

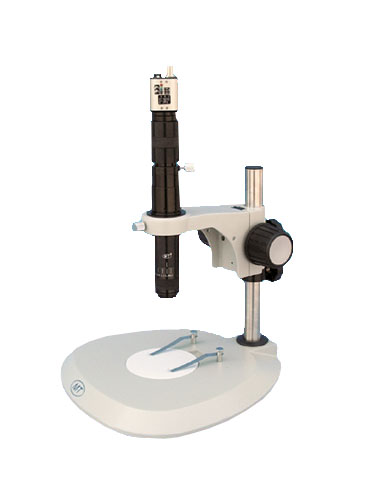

MZD series main technical data for the moncular video zoom microscope systems
Contents\Model		MZD0745
Main body	Zoom objective magnification	0.7x-4.5x
	Main body length（mm）	169
	Working distance （mm）	115
Total magnification (with 1/3″CCD、14″ monitor)		41.5x-266.4x
Diameter of visual field（mm）（with 1/3″CCD、14″ monitor）		8.6-1.3
Total magnification=Objective magnification x Digital magnification （CCD） Diameter of visual field=Diagonal size of CCD camera pickup device/Objective magnification Diagonal size of CCD camera pickup device:1/3″:6mm 1/2″:8mm 2/3″:11mm 14″ monitor digital magnification：1/3″CCD:14×25.4/6=59.2 1/2″CCD:14×25.4/8=44.5 2/3″CCD:14×25.4/11=32.3
