Lab/Industrial Microscope

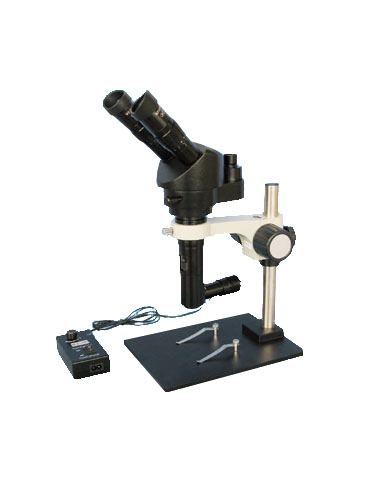

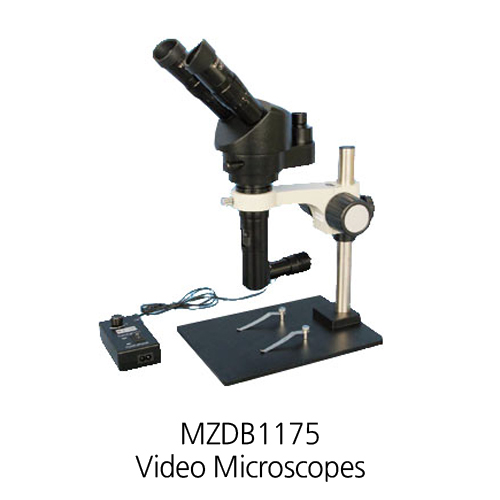

Coaxial Illumination Zoom Microscope

MZDB1175

MZDB1175 series high-contrasted coaxial illumination zoom microscopes

Main technology Specifications

● Eyepieces observing magnification: 11X~75X (match WF10X/22 eyepieces), the maximal magnification is 225X (match 30X eyepieces)
● Range of zoom objective magnification: 1.1X～7.5X, working distance 73mm
● Binocular observing tubes inclined 45°
● The range of adjusting the diopter is ±6
● Interpupillary distance adjustment range 52mm~76mm
● Adjusting high lighteness long life LED coaxial illumination
● The measurement to match between the support and the main body is Φ45mm
