Lab/Industrial Microscope

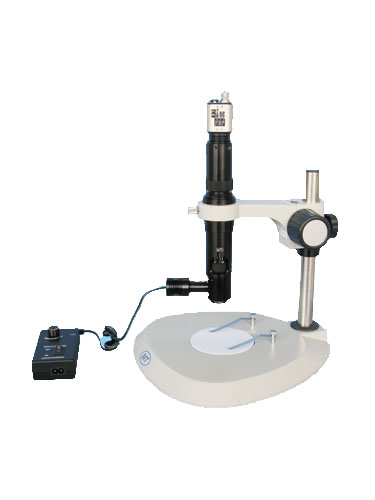

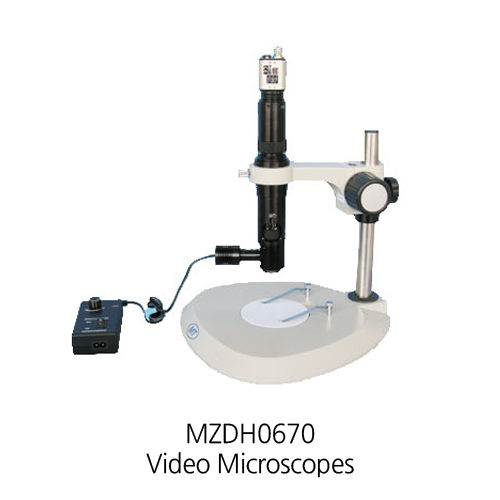

Zoom Monocular Video Microscope System

MZDH0670

MZDH0670 series zoom monocular video microscope systems

Main technology Specifications:

● Zoom objective magnification 0.6X~7.0X, zoom radio 11.7:1, working distance 82mm(1X objective)
● Adjusting high lighteness long life LED coaxial illumination
● The measurement to match between the support and the main body:φ45mm
● Standard CS-mount(the distance between the bearing surface and CCD plate is 12.5mm)
● 0.3X, 0.5X, 1X(standard outfits), 1.5X, 2X CCD adapters to be selected
● 0.3X, 0.5X, 0.75X, 1X(standard outfits), 1.5X, 2X objective to be selected
● It can with Nikon, Olympus, Mitsutoyo standard screw thread endless far metallographical lens.
