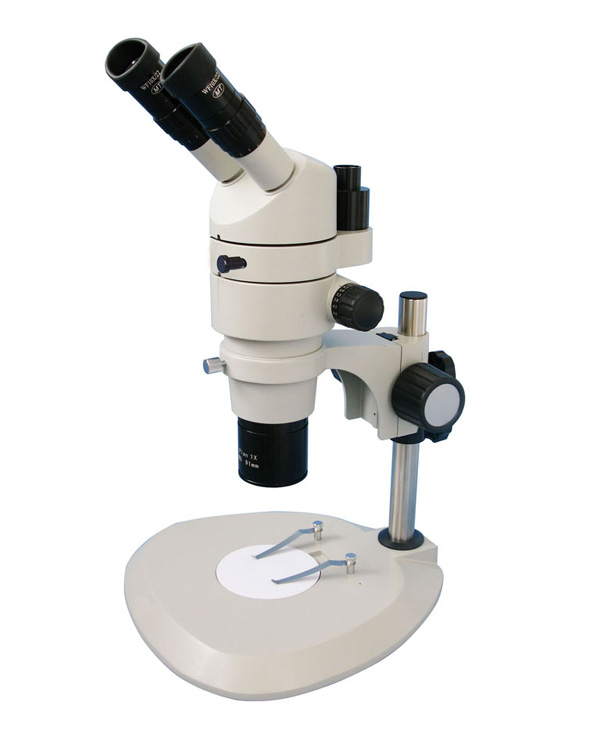

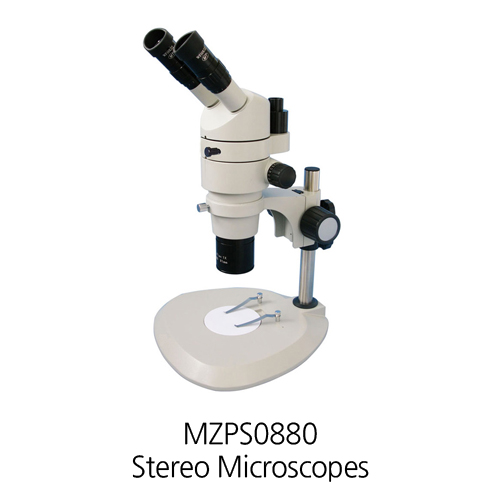

[MZPS0880] Parallel Optic System Zoom Stereo Microscope
₩2,870,200
설명
Lab/Industrial Microscope
Parallel Optic System Zoom Stereo Microscope
MZPS0880
MZPS0880 series parallel optics zoom stereo microscopes have two types, MZPS0880(binocular) and MZPS0880T(trinocular). It is characterized by parallel optical system. Magnification range of zoom body is 0.8X~8X, magnification from high to low non-flash in focusing course, large depth of field, long working distance, has many kinds of attachments. It can be satisfied the demands of checking-up and analysis in modern biology, medicine, environment, farming, police, micro-electronics, semiconductors etc. fields.
Advantage:
– Parallel optics system, 0.8X~8X zoom body, standard outfits. 1X plane none aberrance 10X eyepiece, working distance 91mm.
– Standard total magnification: 8X~80X, the biggest magnification: 360X.
– With plan, high eye point and wide field eyepieces(Φ22mm).
– Binocular eyetubes inclined 45°.
– The range of adjusting the diopter is ±6
– Interpupillary distance adjustment range 50mm~76mm
– The range of adjusting the focus is 50mm(the square post is 100mm), the diameter of the center working stage is Φ95mm.
– The measurement to match between the support and the main body is Φ76mm
– The distance between from the post center to the main body center is 140mm
– The size of the round post is Φ25mm
– There are many magnification objectives, eyepieces, auxiliary illuminators etc. attachments and kinds of stands and universal stands to be selected.
Specification
| MZPS0880 | MZPS0880T | |
| Main body ZPS0880 | ● | |
| Main body ZPS0880T | ● | |
| Eyepieces WF10X/22 | ●● | ●● |
| Eye shields | ●● | ●● |
| 1X plane objective PS WP1.0 | ● | ● |
| Stand SD1 | ● | ● |
Technical data
|
Eyepiece |
Objective |
0.5X |
0.7X |
1X |
1.5X(auxiliary objective) |
|
10X |
Total magnification |
4X~40X |
5.6X~56X |
8X~80X |
12X~120X |
|
Diameter of visual field(mm) |
Φ55~Φ5.5 |
Φ39.3~Φ3.93 |
Φ27.5~Φ2.75 |
Φ18.33~Φ1.83 |
|
|
15X |
Total magnification |
6X~60X |
8.4X~84X |
12X~120X |
18X~180X |
|
Diameter of visual field(mm) |
Φ42.5~Φ4.25 |
Φ30.36~Φ3.04 |
Φ21.25~Φ2.13 |
Φ14.17~Φ1.42 |
|
|
20X |
Total magnification |
8X~80X |
11.2X~112X |
16X~160X |
24X~240X |
|
Diameter of visual field(mm) |
Φ35~Φ3.5 |
Φ25~Φ2.5 |
Φ17.5~Φ1.75 |
Φ11.67~Φ1.17 |
|
|
30X |
Total magnification |
12X~120X |
16.8X~168X |
24X~240X |
36X~360X |
|
Diameter of visual field(mm) |
Φ22.5~Φ2.25 |
Φ16.1~Φ1.61 |
Φ11.25~Φ1.13 |
Φ7.5~Φ0.75 |
|
|
Working distance(mm) |
186 |
135 |
91 |
40 |
|
Note:
1) Please use lengthen round post when using 0.5X objective.
2) Please use 1X plane objective & 1.5X auxiliary objective together when using 1.5X.
