Lab/Industrial Microscope
Biological Microscope

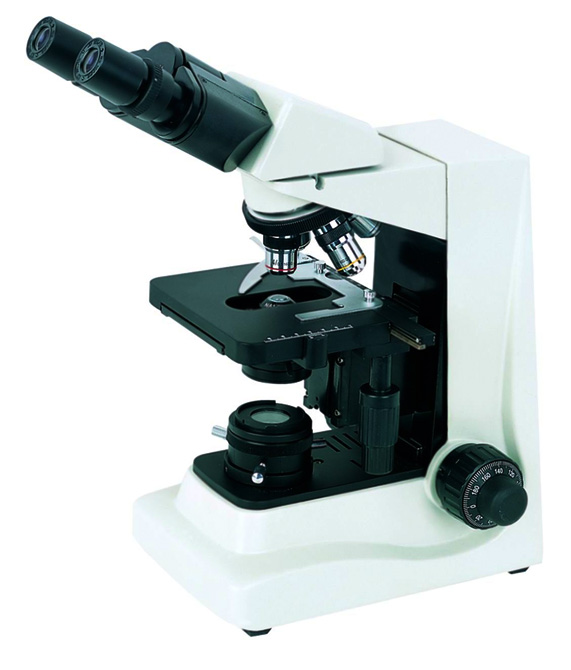

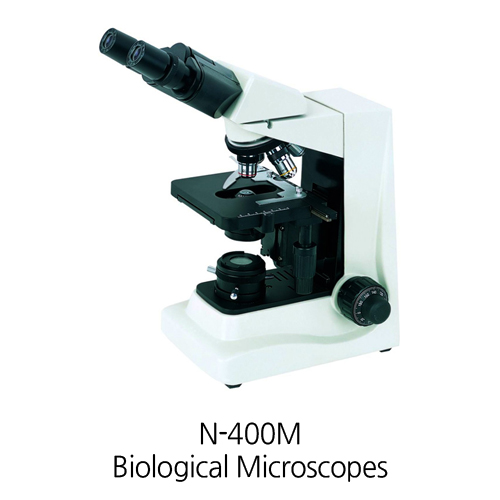

N-400M
High transmission optical system, combined base and arm design and wide range of accessories make it an ideal instrument for biology, bacteriology, histology, immunology and pharmacology.
Advantage
– Monocular, binocular and trinocular head available for fifferent requirements
– Big operating space with backward nosepiece and easier comparing test with large size double layer mechanical stage
– More comfortable operation with low position CA and FA knob, low stage control and narrow base, even Illumination with modern fesign, kohler illumination and aspheric collector can be adapted
Specification
N-400M | ||
Viewing Head | Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable |
S |
Monocular Head, Inclined at 30°, 360° Rotatable |
– |
|
Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable |
– |
|
Eyepiece | Wide Field Eyepiece WF10×/ 18 |
S |
Wide Field Eyepiece WF16×/ 11 |
– |
|
Objective | Achromatic Objective 4×, 10×, 40×, 100× |
S |
Achromatic Objective 20×, 60× |
– |
|
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× |
– |
|
Nosepiece | Backward Quadruple Nosepiece |
S |
Backward Quintuple Nosepiece |
– |
|
Stage | Double Layers Mechanical Stage 140×140mm/ 75×50mm |
S |
Condenser | NA 1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & Pinion Adjustment |
S |
Focusing | Coaxial Coarse & Fine Adjustment System, Range 28mm, Fine Division 0.002mm |
S |
Illumination | S-LED Illumination, Brightness Adjustable |
S |
Halogen Lamp 6V/ 20W, Brightness Adjustable | – | |
Kohler Illumination |
– |
|
Polarization Set | Simple Polarization Set |
– |
Phase Contrast Kit | Simple Phase Contrast Kit |
– |
Sliding Phase Contrast Kit |
– |
|
Turret Phase Contrast Kit |
– |
|
Dark Field Attachment | Dark Field Condenser (Dry) NA 0.9 |
– |
Dark Field Condenser (Oil) NA 1.25-1.36 |
– |
|
Epi-fluorescent Attachment |
– |
|
Filter | Green Filter |
S |
Blue Filter | – | |
Photo Attachment |
– |
|
Video Attachment |
– |
Note: “S” is Standard configuration, “-” is Optional accessories
