[N-510] Multi-Viewing Microscope W/ Penta Viewing Heads
₩9,815,300
설명
Education Microscope
Kids Microscopes

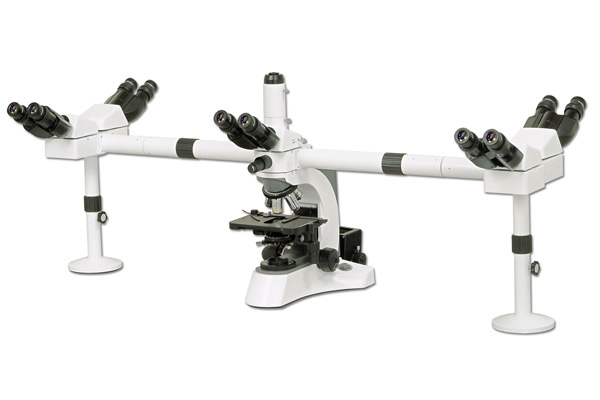

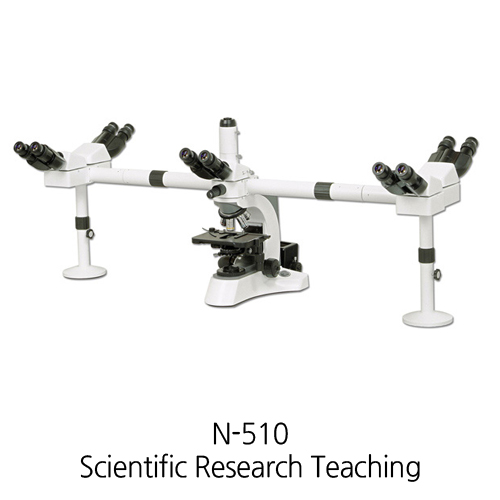

Multi-Viewing Microscope W/ Penta Viewing Heads
N-510
The modular, multi viewing systems offer an outstanding image quality for each viewer thanks to their all glass optics with precision coatings.
The accessory attaches to a microscope and allows multiple users to simultaneously view the same specimen achieving a real sense of working with a microscope.

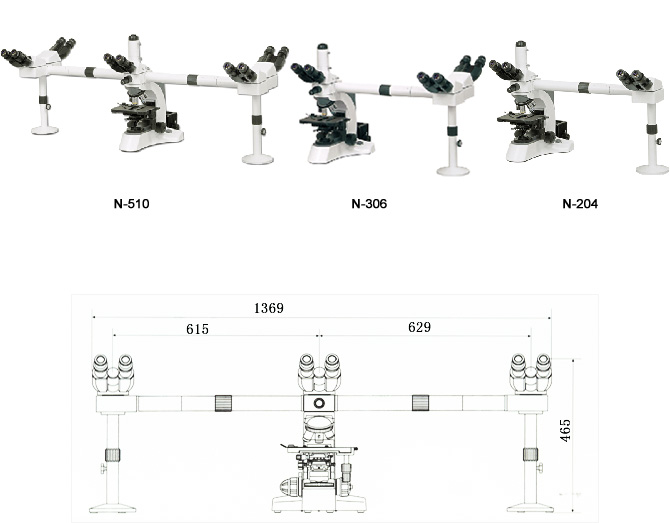

Standard systems are available for 2, 3, 4, 5, and 10 users, and custom systems with up to 20 viewing stations can be delivered according to customers’ specifications.
Advantage
– Multi-viewing Microscope allows people observation at the same time.
– With the features of Infinite Optical System, Effective Illumination, LED Pointer and images
– Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.
Specification:
| N-510 | N-306 | N-204 | ||
| Optical System | Infinite Optical System | S | S | S |
| Viewing Head | Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | 1PC | 1PC | 1PC |
| Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | 4PCS | 2PCS | 1PC | |
| Eyepiece | Extra Wide Field Eyepiece EW10×/ 20 | 10PCS | 6PCS | 4PCS |
| Nosepiece | Inverse Quintuple Nosepiece | S | S | S |
| Objective | Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× | S | S | S |
| Condenser | Swing Condenser N.A.0.9/ 0.25 | S | S | S |
| Focusing | Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm | S | S | S |
| Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm | S | S | S |
| Kohler Illumination | External Illumination, Halogen Lamp 24V/ 100W | S | S | S |
| Pointer | Green LED Pointer , Brightness Adjustable | S | S | S |
| Dual Color Pointer , Brightness Adjustable | – | – | – | |
| Photo Attachment | – | – | – | |
| Video Adapter | C Mount 1× | – | – | – |
| C Mount 0.5× | – | – | – | |
Note: “S” is Standard configuration, “-” is Optional accessories
