Industry Stereo Microscopes

실체 현미경

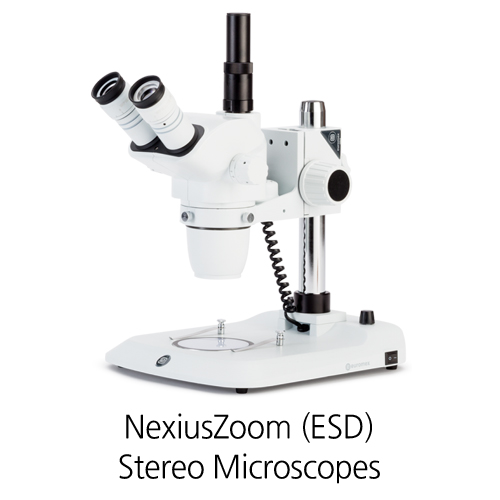

NexiusZoom (ESD)

The NexiusZoom stereo microscopes from Euromex enable examining your specimen with high-performance precision and generate two- and three-dimensional images allowing observation for your highest demanding microscopy applications

The NexiusZoom stereo microscopes are supplied with a large choice of objectives and stands, with or without illumination. Ideal for all kinds of industrial applications. With additional lenses and objectives magnifications from 3.3 up to 180 times can be achieved

These top level zoom ESD safe microscopes are perfect for analyzing all kinds of material surfaces or to observe larger objects in the electronic industry



Highlights

  • Binocular and trinocular heads with HWF 10x/22 mm eyepieces
  • Zoom 1 : 6.7 ratio, 6.7x to 45x standard
  • Ergonomically designed stands
  • 3 W LED illuminations
  • ESD safe microscopes

Models

Specifications

EYEPIECE(S)
Pair of HWF 10x/22 mm eyepieces

HEAD
Binocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments. Interpupillary distance adjustable between 54 mm and 75 mm

OBJECTIVE
Zoom 1:6.7 objective with 0.67x to 4.5x magnifications. Field of view from 33 mm to 4.9 mm. Working distance 110 mm. Additional 0.5x, 0.75x, 1.5x and 2.0x lenses available. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

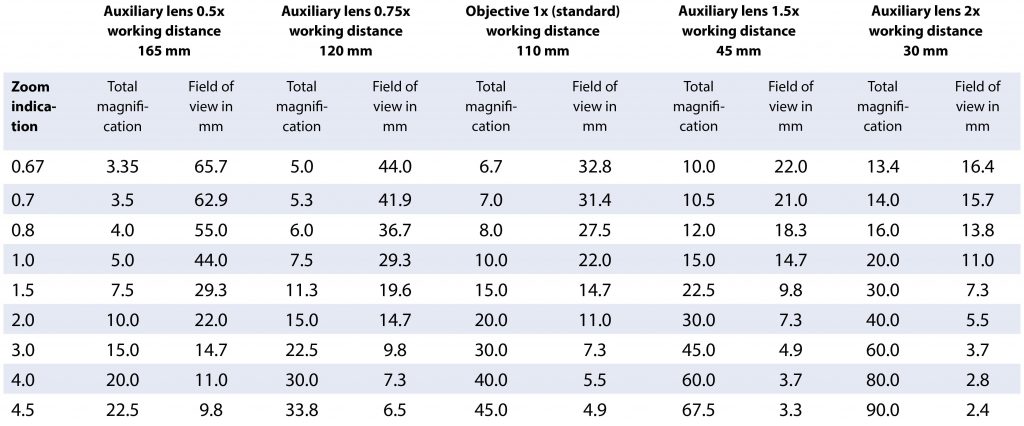

MAGNIFICATIONS
Working distance and field of view with standard HWF 10x / 22 High Wide Field eyepieces

STAND

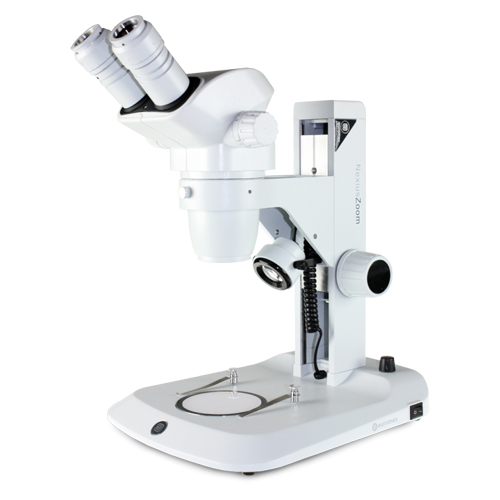

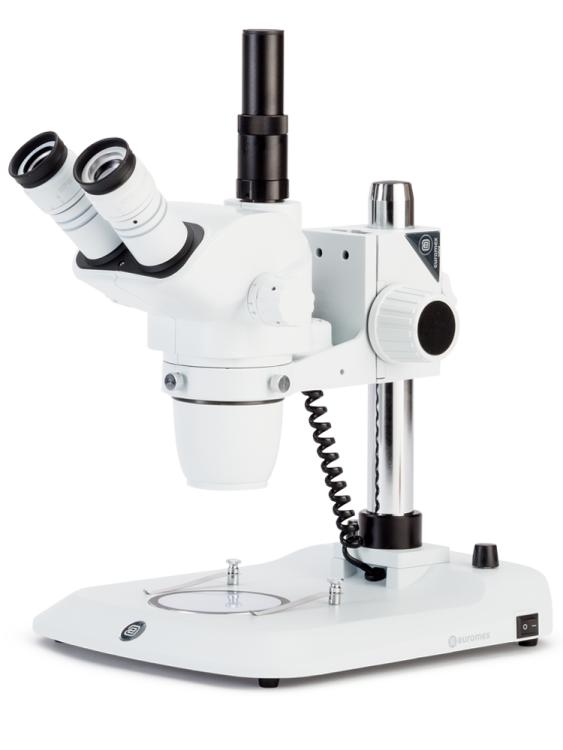

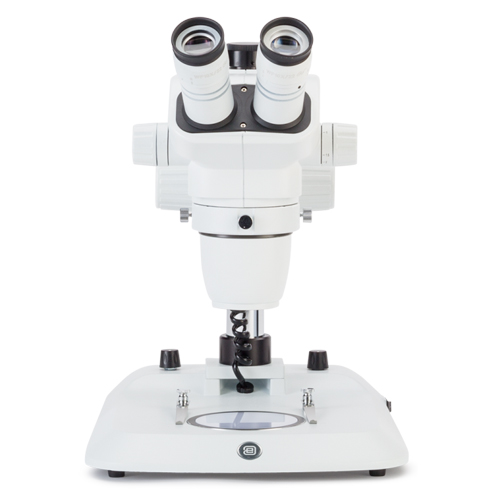

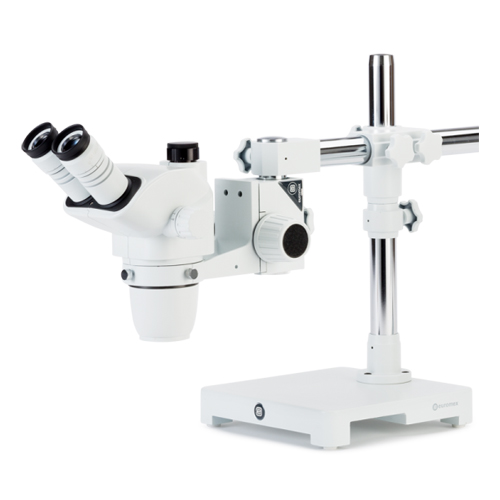

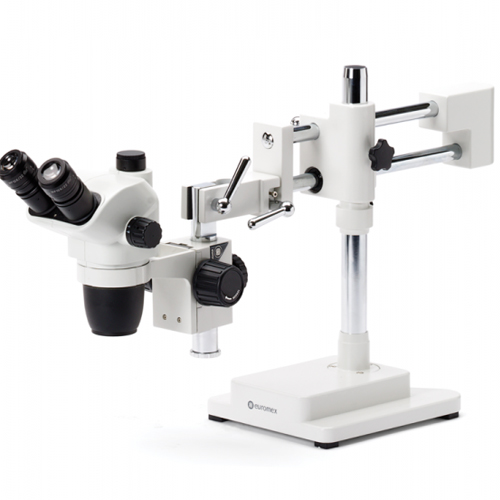

The rack & pinion and pillar stands of the NexiusZoom are equipped with an ergonomically designed, wide flat base. Complete with 2 object clamps and Ø 100 mm transparent and black/white stage plates and double illuminators. The coarse adjustment is equipped with tension control. The ergonomically designed universal single arm stand and double arm boom stand are ideal for looking at large samples or working under the microscope. Standard supplied without illumination

Suitable for e.g. ring illuminators LE.1972 and LE.1973 with 60 or 144 power LEDs controlled in segments ideal for creating or lift shades
More illumination options

The stands are alloy metal casted with hardened off-white coating. ESD safe coating versions are also available

ILLUMINATION
3 W transmitted and incident LED illuminators with internal power supply 100-240 V. Both illuminators can be used simultaneously and the light intensities can be adjusted separately

ESD SAFE MICROSCOPES
For inspection and assembly applications. Electrostatic discharge (ESD) is the unwanted sudden flow of electricity between two electrically charged objects. ESD can cause a range of harmful effects as well as permanent damage to solid state electronics components. Euromex therefore now introduces electrostatic protected microscopes in the NexiusZoom range. The body and stand of the microscope are coated with a special static dissipative paint eliminating harmful electrostatic discharges making the microscopes suitable for all static-sensitive environments

(To select an ESD safe microscope model, please find them in the table on this page marked with suffix ESD)

PACKAGING
Supplied with power cord, dust cover and user manual. All packed in a polystyrene box

PRODUCT VIDEO
Check out the product video below and learn more about this microscope

Accessories

NZ.6010
Pair of HWF 10x/22 mm eyepieces
NZ.6015
Pair of HWF 15x/16 mm eyepieces
NZ.6020
Pair of HWF 20x/12 mm eyepieces
NZ.6110
HWF 10x/22 mm eyepiece with micrometer
NZ.6099
Pair of eyecups
NZ.8903
Additional 0,3x lens. Working distance 287 mm. Only suitable for models with universal, boom or articulated stands
NZ.8905
Additional 0,5x lens. Working distance 165 mm. Only suitable for models with pillar or boom stands
NZ.8907
Additional 0,75x lens. Working distance 120 mm. Only suitable for models with pillar or boom stands
NZ.8915
Additional 1,5x lens. Working distance 45 mm
NZ.8920
Additional 2,0 lens. Working distance 30 mm
NZ.8950
Protection glass window, fits objectiv e
NZ.9010
Ergo rack & pinion stand with 3 W LED illuminators
NZ.9015
Ergo pillar stand with 3 W LED illuminators
NZ.5302
NexiusZoom binocular head without head holder
NZ.5303
NexiusZoom trinocular head without head holder
NZ.9020
Universal one-arm stand without NexiusZoom head holder and without illumination
NZ.9025
Black articulated stand with table clamp without holder
LE.1972
Ring illuminator with 60 LEDs with adjustable light intensity. External power supply 110-240 Vac / 12 Vdc (50/60 Hz). With segment controller. Brightness of 20.000 Lux at 100 mm distance and color temperature of 6500 K. Mounting for stereo head with diameter from 25 to 61 mm
LE.1973
Ring illuminator with 144 LEDs with adjustable light intensity. External power supply 100-240 Vac / 12 Vdc (50/60 Hz). With segment controller. Brightness of 23.000 Lux at 100 mm distance and color temperature of 6500 K. Mounting for stereo head with diameter from 25 to 61 mm

문의사항 있으시면 연락주시기 바랍니다.



언제든지 친절히 상담 해드리겠습니다.



전화 상담 및 문의글 남겨주시면 빠른시간내로

견적서를 메일로 받아보실 수 있습니다.



추가 정보

OPTION

NZ.1902‑A, NZ.1902‑B, NZ.1902‑B‑ESD, NZ.1902‑P, NZ.1902‑P‑ESD, NZ.1902‑S, NZ.1902‑S‑ESD, NZ.1902‑U, NZ.1902‑U‑ESD, NZ.1903‑A, NZ.1903‑B, NZ.1903‑B‑ESD, NZ.1903‑P, NZ.1903‑P‑ESD, NZ.1903‑S, NZ.1903‑S‑ESD, NZ.1903‑U, NZ.1903‑U‑ESD
