Lab/Industrial Microscope
Fluorescence Microscope

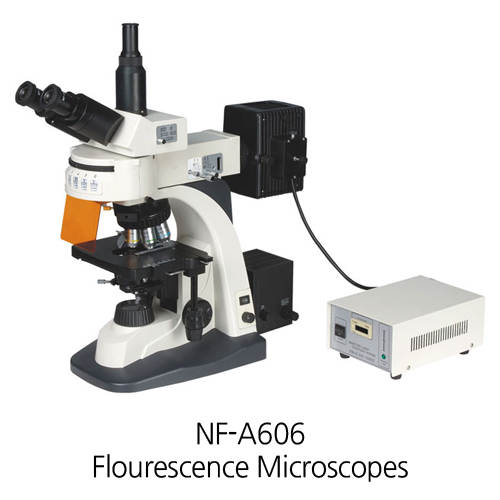

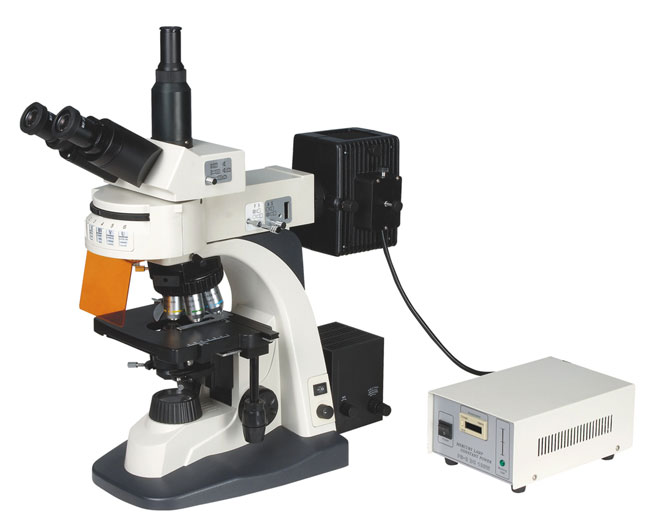

NF-A606
NF-A606 Fluorescence Microscope is made up of the Biological microscope and Epi-fluorescence device. Epi-fluorescence widely used in biology, medicine, immunology, oncology, genetics, materials science and other fields. Conventional configuration has 5 wave bands, and B,G,BV,V,U can be switched, and meanwhile, the conventional transmission observation can be proceeded. High-quality optical system and fluorescent attachment make you observed the satisfactory fluorescent effect. It is your best choice because of humanized configuration design, convenient operation system and novel appearance.
Technical Specification | ||
Viewing Head | Compensation Free Trinocular Head Inclined at 30°(50mm-75mm) | |
Eyepiece | WF10×/22mm | |
Objective | Infinite Apochromatic Fluorescent Objectives: 4×/N.A.O.15、10×/N.A.O.35、20×/N.A.0.6、40 × (S) /N.A.O.75 | |
Nosepiece | Sextuple Nosepiece | |
Stage | Double layer mechanical stage | |
Stage Size: 180mm×160mm | ||
Moving Range: 80mm×50mm | ||
Condenser | N.A.1.25 Abbe condenser with iris diaphragm and filters | |
Focusing | Coaxial coarse & fine focusing adjustment with rack and pinion mechanism. Fine focusing scale value 0.002mm | |
Light Source | Transmission Illumination: Halogen Bulb 12V/30W, Brightness Adjustable | |
Epi-Fluorescent Illumination: 220V(110V) .Ultra-high pressure Mercury Lamp100W/DC. Digital display mercury lamp constant power | ||
Fluorescent Box | G、B、BV、V、U Wave Band | |
Optional Accessory | Eyepiece: WF16×/17mm、WF20×/12.5mm | |
1.3Mega、2.0 Mega、3.0 Mega、5.0 Mega pixels CMOS Digital camera eyepiece | ||
Infinite Plan Objectives: 4×,10×,20×,40×(s),60×(s),100×(s)oil | ||
Infinite fluorescent Objectives:100×(dry)/N.A.0.9 | ||
Y Wave band fluorescent box | ||
Light Source: Halogen Bulb 12V/50W,12V/100W | ||
Photography attachment and CCD Adapter0.5×、0.57×、0.75× |
