설명
Medical Microscope

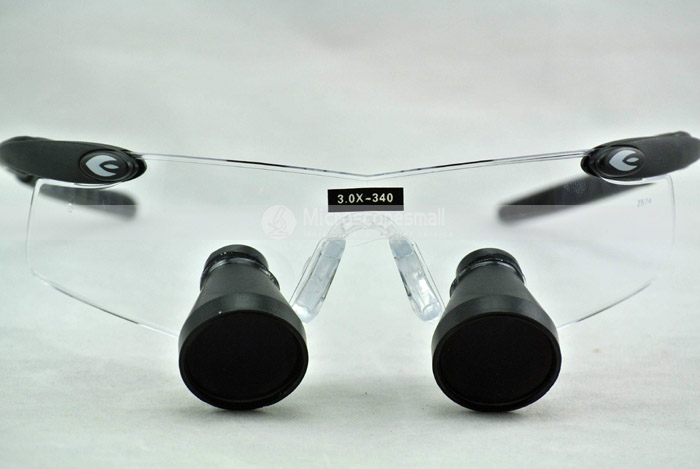

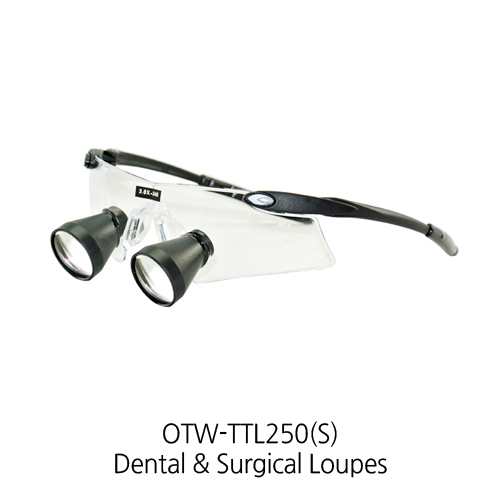

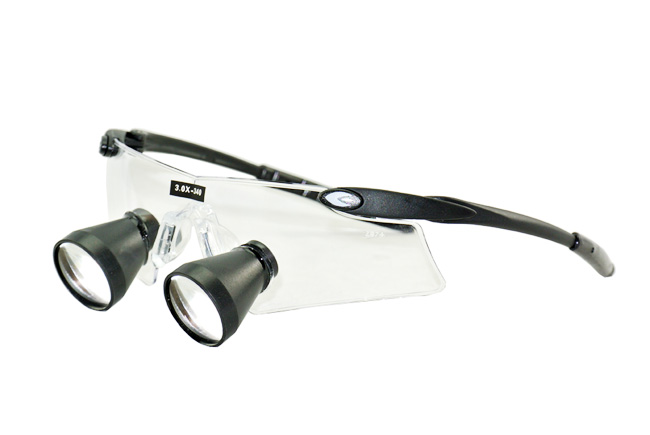

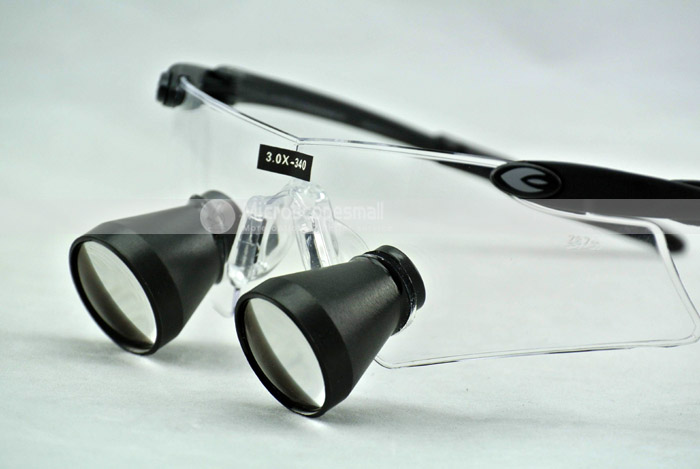

Sport Style Frame TTL Dental Surgical Loupe (2.5X)
OTW-TTL250(S)
TTL is “Through The Lens”, It means that the loupes are glued to your lens. Although TTL is slightly lighter than Flip-Up system, it can not be moved from line of vision and the user can not make adjustments to the angle of declination to accommodate for the patient’ s position. And since each pair of TTL loupes is custom made, it is much more expensive than the Flip-Up loupes. The loupes Through The Lens are light weight, and laconic appearance.It has fashionable design and comparable with designer frames.
• Razor-sharp, edge-to-edge clarity
• Extremely high resolution optics
• Lightweight design
• Multi-coated for: anti-glare, anti-fog and scratch-resistance
|
Model
|
Power
|
Working Distance
|
Field of View
|
Depth of Field
|
Weight
|
|
OTW-TTL250S
|
2.5x
|
340mm / 13,4 in
|
90mm / 3.6 in
|
80mm / 3.2 in
|
60gr / 1.9 ounce
|
|
OTW-TTL250R
|
2.5x
|
420mm / 16.5 in
|
100mm / 4.0 in
|
90mm / 3.6 in
|
60gr / 1.9 ounce
|
|
OTW-TTL250L
|
2.5x
|
500mm / 19,7 in
|
110mm / 4.4 in
|
110mm / 4.4 in
|
60gr / 1.9 ounce
|
|
OTW-TTL250XL
|
2.5x
|
550mm / 21,7 in
|
120mm / 4.8 in
|
120mm / 4.8 in
|
60gr / 1.9 ounce
|
|
All Models
|
Through the lens. Adjustable viewing angle not allowed
|
||||
|
All Models
|
Pupillary distance: 58/59/60/61/62/63/64/65/66/67/68MM
|
||||
|
All Models
|
Average weight including (medium) frame: 60 grams / 1.9 ounce
|
||||
