[OTWTTL300] TTL Dental Surgical Loupe (3.0X)
[FD-502-2] Alloy Frame Kepler Dental Surgical Loupe (5.0X)
₩542,000
[MSF-400] New Design 4.0x Keplerian Prism Loupes (Alloy Frame Type)
₩597,000
₩597,000
설명
Medical Microscope

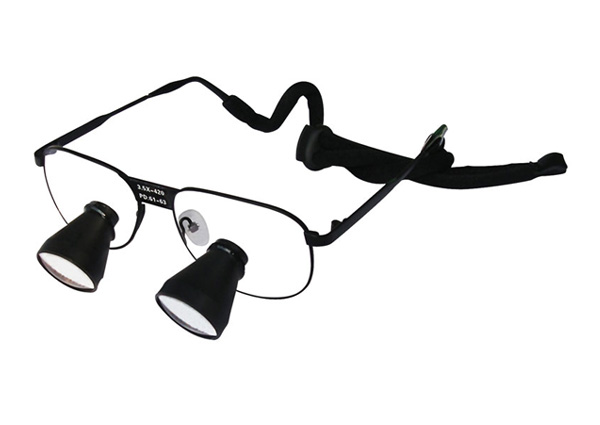

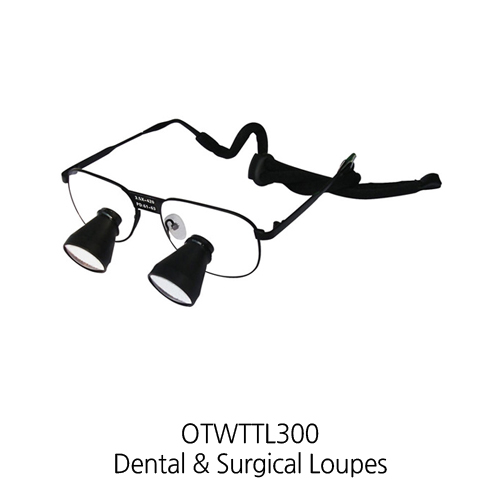

TTL Dental Surgical Loupe (3.0X)
OTWTTL300
TTL is “Through The Lens”, It means that the loupes are glued to your lens. Although TTL is slightly lighter than Flip-Up system, it can not be moved from line of vision and the user can not make adjustments to the angle of declination to accommodate for the patient’ s position. And since each pair of TTL loupes is custom made, it is much more expensive than the Flip-Up loupes. The loupes Through The Lens are light weight, and laconic appearance.It has fashionable design and comparable with designer frames.
• Razor-sharp, edge-to-edge clarity
• Extremely high resolution optics
• Lightweight design
• Multi-coated for: anti-glare, anti-fog and scratch-resistance
|
Model
|
Power
|
Working Distance
|
Field of View
|
Depth of Field
|
Weight
|
|
OTWTTL250S
|
2.5x
|
340mm / 13,4 in
|
90mm / 3.6 in
|
80mm / 3.2 in
|
60gr / 1.9 ounce
|
|
OTWTTL250R
|
2.5x
|
420mm / 16.5 in
|
100mm / 4.0 in
|
90mm / 3.6 in
|
60gr / 1.9 ounce
|
|
OTWTTL250L
|
2.5x
|
500mm / 19,7 in
|
110mm / 4.4 in
|
110mm / 4.4 in
|
60gr / 1.9 ounce
|
|
OTWTTL250XL
|
2.5x
|
550mm / 21,7 in
|
120mm / 4.8 in
|
120mm / 4.8 in
|
60gr / 1.9 ounce
|
|
All Models
|
Through the lens. Adjustable viewing angle not allowed
|
||||
|
All Models
|
Pupillary distance: 58/59/60/61/62/63/64/65/66/67/68MM
|
||||
|
All Models
|
Average weight including (medium) frame: 60 grams / 1.9 ounce
|
||||
